Mechanical Zero Point System with 4-point Clamping

Tetsuya Iwasaki
Add to favorites

Quick Change Plate Completes Fixture Setup in 30 Seconds

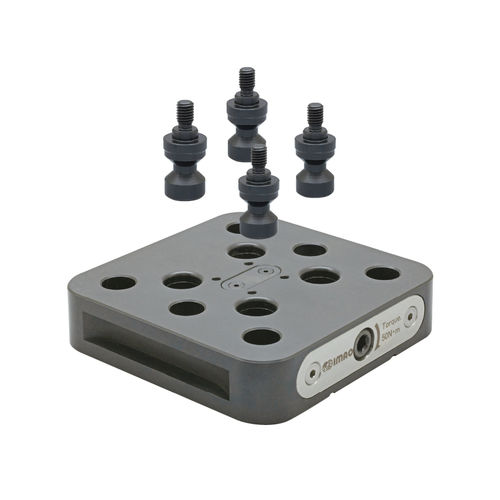

Flex Zero Base is a quick change plate with 0.005 mm repeatability and 12 kN clamping force.

4-point clamping by only one actuation screw drastically shortens machine down time during fixture change operations.

Compact body is perfect for quick change on small 5-axis machining centers and vertical machining centers.

Mechanical Zero Point System with 4-point Clamping
Product Introduction

Quick Clamping

4-point clamping by only one actuation screw

0.005 mm Repeatability

-2 jaws locate and clamp the pull studs with high accuracy. -Precise and quick fixture change No Position Adjustment / Shorter Machine Down Time

12 kN Clamping Force

Strong clamping with 12 kN force allows heavy duty machining.

Compact Design

-Two sizes of 150 / 240 mm are available depending on the size of machine table. -The low height of 35 mm maximizes the machining area.
