- Compatible with Keysight B1506A Power Device Analyzer Capable of measuring the IV characteristics and CV characteristics of power devices

- Design and manufacture of test sockets, printed circuit boards, and calibration dummy devices

- Compatible with various device shapes, including SMD (surface-mounted devices)

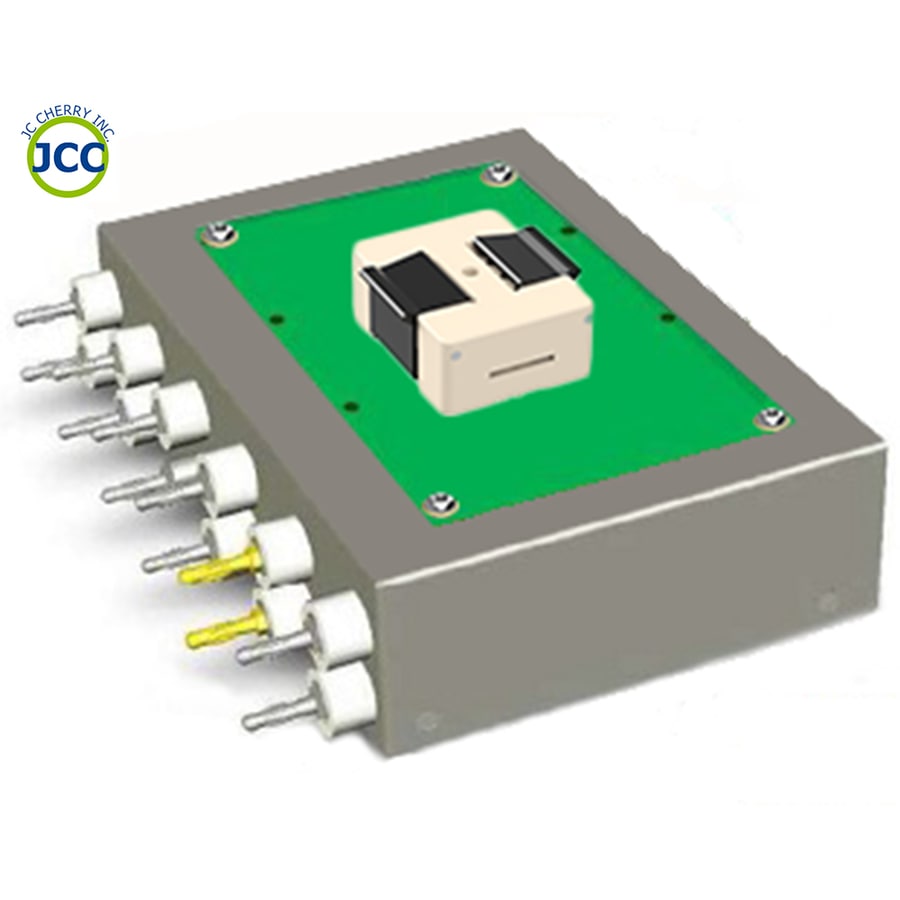

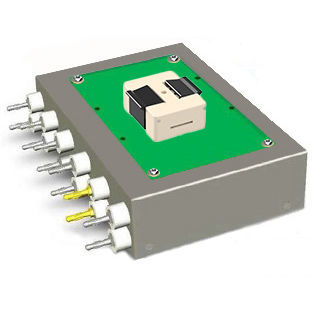

This is a solution for socket modules mounted on the B1506A.

It supports high currents of Pulse: 400A / DC: 100A.

With minimized leakage current, it enables highly accurate measurements.

The "B1506A" is a device designed for easy and highly accurate measurement of power device characteristics,

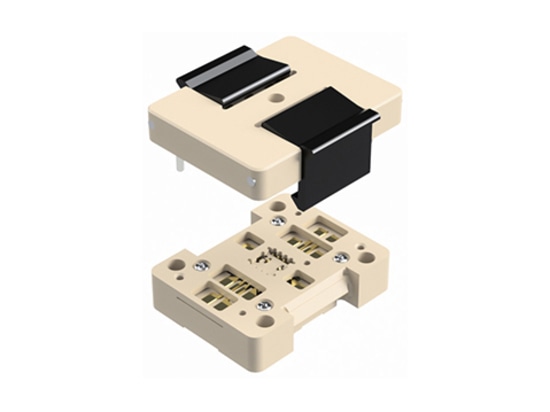

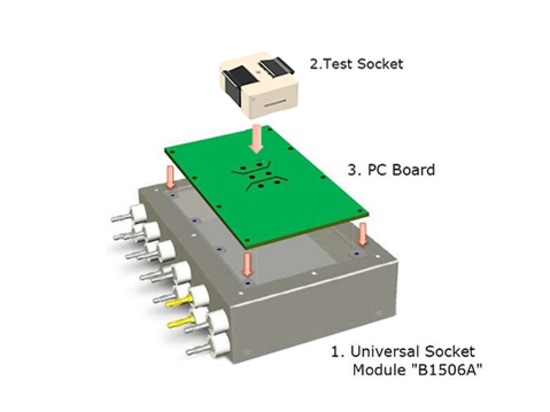

such as MOS-FETs and IGBTs. While standard modules are available for common DIP-type devices like TO-220 and TO-3P, custom socket modules are required for measuring devices with other package formats, such as SMD (surface-mounted devices).

For measurements requiring high voltage or high heat resistance, it is necessary to carefully consider the material of the test socket and the design of the circuit board according to the usage conditions.

In addition to test sockets, we have a proven track record in designing printed circuit boards and calibration dummy devices for OPEN/SHORT testing, enabling us to provide solutions tailored to various devices.
