High Purity Chemical Delivery Systems: The Backbone of Advanced Semiconductor Manufacturing
As semiconductor manufacturing continues to advance toward smaller process nodes, higher wafer yields, and more sophisticated chip architectures, maintaining chemical purity has become more critical than ever. Modern semiconductor fabs depend on highly accurate, contamination-free chemical delivery systems to transport and control ultra-pure chemicals used throughout wafer fabrication.

A high purity chemical delivery system is far more than a collection of pumps and pipelines. It is a fully integrated solution engineered to deliver precise volumes of corrosive, flammable, and high-purity chemicals safely while maintaining strict cleanliness standards required by semiconductor production.

As a professional High Purity Chemical Delivery System Manufacturer, we provide customized chemical distribution solutions designed for semiconductor fabs, integrated circuit manufacturing plants, MEMS production, LED fabrication, photovoltaic manufacturing, and advanced research laboratories.

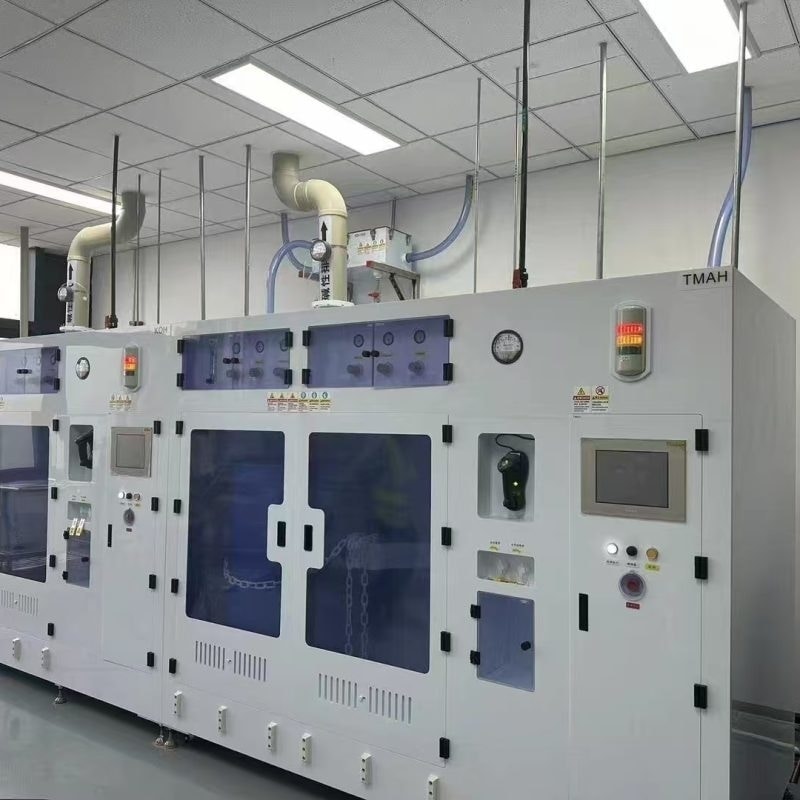

fluid control system manufacturer in china
fluid control system manufacturer in china
What Is a High Purity Chemical Delivery System?
A High Purity Chemical Delivery System (CDS) is an automated process system that safely stores, transfers, filters, monitors, and delivers semiconductor-grade chemicals from bulk containers or chemical tanks directly to manufacturing equipment.

These systems are commonly used for delivering:

Hydrofluoric Acid (HF)
Sulfuric Acid (H₂SO₄)
Hydrochloric Acid (HCl)
Nitric Acid (HNO₃)
Phosphoric Acid (H₃PO₄)
Ammonium Hydroxide (NH₄OH)
Hydrogen Peroxide (H₂O₂)
Isopropyl Alcohol (IPA)
Photoresist
Developer
Solvents
CMP Slurries
Specialty Wet Chemicals
The primary objective is to ensure every chemical reaches the process tool at the correct pressure, flow rate, temperature, and purity level while eliminating particle contamination and minimizing operator exposure.

Why Semiconductor Fabs Require High Purity Chemical Delivery
Even microscopic contamination can lead to wafer defects, lower yields, and significant production losses.

Modern semiconductor fabs operating at 5 nm, 3 nm, and emerging process nodes require:

Ultra-clean chemical transfer
Continuous purity monitoring
Stable pressure regulation
Precise flow control
Fully automated operation
High system reliability
Comprehensive safety protection
A professionally designed chemical delivery system helps maintain consistent process conditions while reducing operational risks and improving manufacturing efficiency.

Main Components of a High Purity Chemical Delivery System
A complete semiconductor chemical delivery system typically includes several integrated subsystems.

Chemical Storage Module
Chemical storage cabinets or tanks are designed to safely contain aggressive chemicals while preventing contamination.

Typical features include:

Double-wall construction
Leak containment trays
Level monitoring sensors
Ventilation systems
Chemical compatibility design
Storage materials are carefully selected according to chemical properties, including:

PVDF
PFA
PTFE
High-purity polypropylene
Stainless Steel 316L (where applicable)
Chemical Transfer Pumps
Chemical transfer pumps provide stable and precise fluid transportation.

Common pump technologies include:

Air-operated diaphragm pumps
Magnetically coupled pumps
Bellows pumps
Metering pumps
High-purity centrifugal pumps
Pump selection depends on:

Chemical compatibility
Flow rate
Pressure requirements
Temperature
Process accuracy
High Purity Piping System
The piping network directly influences contamination control.

Semiconductor-grade systems commonly utilize:

PFA tubing
PTFE tubing
PVDF tubing
High purity stainless steel tubing
Connections often employ orbital welding or flare fittings to minimize dead legs and particle generation.

Filtration Module
Chemical filtration removes particles before chemicals reach process equipment.

Typical filter ratings include:

0.2 μm
0.1 μm
0.05 μm
Ultra-high purity membrane filters significantly improve chemical cleanliness and process stability.

Pressure Control Module
Stable pressure is essential for accurate chemical dispensing.

Pressure control systems include:

Precision pressure regulators
Pressure transmitters
Relief valves
Automatic pressure adjustment
Pressure alarms
Real-time monitoring ensures process consistency while protecting downstream equipment.

Flow Measurement System
Modern systems integrate high-precision flow meters for accurate chemical consumption monitoring.

Available technologies include:

Coriolis flow meters
Ultrasonic flow meters
Electromagnetic flow meters
Mass flow controllers
These devices improve process repeatability while supporting production data collection.

PLC Control System
Automation is the intelligence behind every modern chemical delivery solution.

The PLC and HMI provide:

Automatic operation
Recipe management
Alarm handling
Data logging
Batch control
Remote monitoring
User management
Production reports
The control platform may integrate with factory MES and SCADA systems.

Safety Features for Semiconductor Chemical Delivery Systems
Handling hazardous semiconductor chemicals requires multiple layers of protection.

Typical safety functions include:

Leak Detection
Leak sensors continuously monitor chemical cabinets and piping systems.

Upon detection, the system can automatically:

Stop chemical supply
Activate alarms
Shut down pumps
Notify operators
Emergency Shutoff
Emergency stop buttons allow rapid isolation during abnormal conditions.

Automatic shutoff valves further enhance personnel and equipment safety.

Ventilation System
Proper exhaust ventilation prevents hazardous vapor accumulation.

Chemical cabinets typically connect to dedicated fab exhaust systems to maintain safe working environments.

Secondary Containment
Spill trays and secondary containment structures prevent accidental chemical leakage from spreading beyond the cabinet.

Fire Protection
Depending on the chemicals involved, systems may include:

Fire detection
Smoke sensors
Gas detection
Automatic suppression interfaces
Chemical Compatibility Engineering
One of the most important aspects of chemical delivery system design is material compatibility.

Different chemicals require different wetted materials to avoid:

Corrosion
Particle generation
Chemical degradation
Metal ion contamination
Experienced manufacturers perform detailed compatibility analysis before selecting:

Valves
Pumps
Tubing
Filters
Seals
O-rings
Proper engineering significantly extends equipment life while ensuring process stability.

Automation Improves Manufacturing Efficiency
Fully automated chemical delivery systems provide numerous operational advantages.

Benefits include:

Reduced manual handling
Improved operator safety
Consistent chemical supply
Higher production uptime
Lower contamination risk
Reduced maintenance
Better inventory management
Automation also enables predictive maintenance through continuous equipment monitoring.

Applications Across Semiconductor Manufacturing
High purity chemical delivery systems support nearly every wet process inside a semiconductor fab.

Typical applications include:

Wet Bench Cleaning
Ultra-pure chemicals are delivered to wafer cleaning stations for particle removal and surface preparation.

Chemical Mechanical Planarization (CMP)
CMP processes require accurate slurry delivery with stable pressure and flow control.

Photoresist Processing
Photoresist chemicals and developers require contamination-free delivery for precise lithography.

Wafer Etching
Acid delivery systems provide highly controlled chemical distribution during wet etching operations.

Advanced Packaging
Chemical dispensing supports bump formation, wafer-level packaging, and advanced semiconductor packaging technologies.

MEMS Manufacturing
MEMS fabrication requires extremely stable chemical handling for precision microstructure processing.

Advantages of Choosing an Experienced Chemical Delivery System Manufacturer
A professional manufacturer provides much more than equipment fabrication.

Key engineering capabilities include:

Customized Design
Every semiconductor fab has unique process requirements.

Custom solutions are developed based on:

Chemical types
Flow demand
Production capacity
Facility layout
Safety standards
Future expansion plans
High Manufacturing Quality
Reliable manufacturers implement strict quality management throughout production.

This includes:

Precision machining
Cleanroom assembly
Pressure testing
Leak testing
Functional testing
Factory Acceptance Testing (FAT)
Semiconductor Industry Standards
High-quality systems are designed according to international standards including:

SEMI Standards
CE Certification
ISO 9001
NFPA requirements
Local safety regulations
Complete Technical Support
Professional suppliers provide:

System design
Installation guidance
Commissioning
Operator training
Spare parts
Preventive maintenance
Remote technical support
Future Trends in Chemical Delivery Systems
Semiconductor manufacturing is moving toward higher automation and digitalization.

Future chemical delivery systems increasingly incorporate:

Industrial Internet of Things (IIoT)
Artificial Intelligence diagnostics
Predictive maintenance
Smart sensors
Digital twins
Cloud monitoring
Energy optimization
Automated chemical inventory management
These innovations reduce operating costs while improving equipment reliability and production efficiency.

Why Choose Our High Purity Chemical Delivery Systems?
As a trusted High Purity Chemical Delivery System Manufacturer, we specialize in designing and manufacturing customized chemical handling solutions for the world’s most demanding semiconductor environments.

Our advantages include:

Customized engineering solutions
Semiconductor-grade material selection
Ultra-high purity manufacturing
Modular system architecture
Advanced PLC automation
Comprehensive safety protection
Strict quality inspection
Worldwide technical support
Competitive pricing
Fast project delivery
Whether your project requires a single chemical cabinet or a complete centralized chemical distribution system for an entire semiconductor fab, our engineering team can provide reliable, scalable, and fully customized solutions that meet your production requirements.

Conclusion
High purity chemical delivery systems play a critical role in ensuring the safety, precision, and productivity of semiconductor manufacturing. From chemical storage and filtration to automated dispensing and intelligent process control, every component must be engineered to maintain the highest standards of cleanliness and reliability.

Choosing an experienced High Purity Chemical Delivery System Manufacturer ensures not only superior equipment performance but also long-term operational stability, regulatory compliance, and lower total cost of ownership. As semiconductor technologies continue to evolve, investing in advanced chemical delivery infrastructure remains essential for achieving higher yields, improved process consistency, and sustainable manufacturing success.
