Introduction
A High Purity Chemical Delivery System is one of the most critical components in modern semiconductor manufacturing, pharmaceutical production, biotechnology laboratories, photovoltaic manufacturing, and other precision industries. As device geometries continue shrinking and manufacturing processes become increasingly sophisticated, the demand for ultra-clean chemical delivery has reached unprecedented levels.

Even trace amounts of contamination can lead to wafer defects, reduced production yield, product recalls, or costly equipment downtime. Therefore, selecting the right chemical delivery system is not simply about transporting chemicals from storage to process equipment—it is about ensuring purity, process stability, operator safety, environmental compliance, and long-term operational efficiency.

This guide explains the key factors engineers, procurement specialists, and facility managers should evaluate when choosing a high purity chemical delivery system for critical manufacturing applications.

What Is a High Purity Chemical Delivery System?

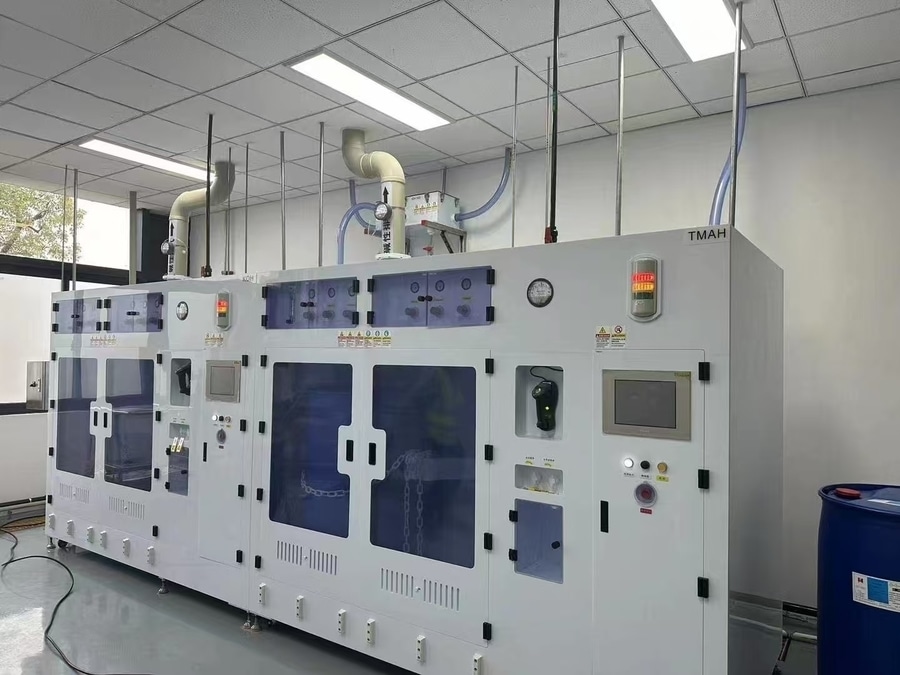

A High Purity Chemical Delivery System (CDS) is an automated fluid handling system designed to safely transport high-purity chemicals from storage containers to manufacturing equipment while maintaining chemical purity throughout the entire process.

These systems typically deliver:

Sulfuric Acid (H₂SO₄)
Hydrofluoric Acid (HF)
Nitric Acid (HNO₃)
Hydrochloric Acid (HCl)
Phosphoric Acid (H₃PO₄)
Ammonium Hydroxide (NH₄OH)
Hydrogen Peroxide (H₂O₂)
Isopropyl Alcohol (IPA)
Photoresists
Solvents
Specialty Chemicals
CMP Slurries
Cleaning Chemicals
Typical applications include:

Semiconductor wafer fabrication
LCD and OLED manufacturing
Solar cell production
Pharmaceutical manufacturing
Biotechnology laboratories
Precision chemical processing
MEMS manufacturing
Battery manufacturing
Why Choosing the Right System Matters
A chemical delivery system directly impacts:

Product quality
Manufacturing yield
Process repeatability
Chemical consumption
Equipment uptime
Worker safety
Environmental compliance
Total operating costs
An improperly designed system may result in:

Chemical contamination
Air bubbles entering process tools
Pressure fluctuations
Pump failures
Chemical leaks
Cross contamination
Unexpected downtime
These problems become increasingly expensive in semiconductor fabs, where a single hour of production interruption may cost hundreds of thousands of dollars.

Key Factors to Consider
1. Chemical Compatibility
The first consideration is chemical compatibility.

Different chemicals attack different materials.

For example:

Chemical Recommended Wetted Materials
HF PFA, PTFE, PVDF
H₂SO₄ PFA, Quartz
HCl PTFE, PVDF
IPA Stainless Steel 316L, PFA
H₂O₂ High Purity PFA
Using incompatible materials may cause:

Corrosion
Particle generation
Metal ion contamination
Premature component failure
Always verify compatibility between:

Tubing
Valves
Pumps
Pressure regulators
Sensors
Filters
Fittings
2. Purity Requirements
Every manufacturing process has different purity standards.

Typical purity classifications include:

Electronic Grade
Semiconductor Grade
Ultra High Purity (UHP)
Semiconductor Grade Chemicals (SGC)
The delivery system should minimize:

Metallic contamination
Organic contamination
Moisture ingress
Particle generation
Air exposure
High-end semiconductor fabs often require:

Metal ion contamination below ppb levels
Particle control below 0.05 μm
Dead-leg-free flow paths
Electropolished wetted surfaces where applicable
3. Material Selection
Material selection greatly affects system reliability.

Common materials include:

PFA (Perfluoroalkoxy)
Advantages:

Excellent chemical resistance
Low particle generation
High purity
Smooth inner surface
Ideal for acids and solvents
Applications:

Semiconductor wet benches
Chemical dispense cabinets
Wafer cleaning systems
PTFE
Advantages:

Outstanding corrosion resistance
Excellent temperature resistance
Low surface energy
Ideal for:

Strong acids
Aggressive chemicals
PVDF
Advantages:

Good mechanical strength
Excellent chemical compatibility
Cost-effective
Commonly used in:

Bulk chemical distribution
Industrial chemical processing
High Purity Stainless Steel 316L
Suitable for:

Solvents
IPA
Ultra-clean water
Certain specialty chemicals
Typically features:

Electropolished surfaces
Low sulfur content
Orbital welded connections
Automation Capabilities
Modern facilities increasingly prefer fully automated systems.

Automation improves:

Accuracy
Productivity
Safety
Repeatability
Typical automated features include:

Automatic chemical refill
Automatic drum switching
Level monitoring
Leak detection
Pressure monitoring
Flow monitoring
Batch tracking
Alarm management
Remote diagnostics
SCADA integration
PLC control
HMI touch screen
Automation significantly reduces human error while increasing production consistency.

Pump Selection
The pump is the heart of every chemical delivery system.

Common pump options include:

Diaphragm Pumps
Advantages:

Leak-free operation
Excellent chemical compatibility
Low maintenance
Suitable for:

Corrosive chemicals
Semiconductor applications
Bellows Pumps
Advantages:

Ultra-clean operation
Particle-free pumping
Excellent flow stability
Commonly used in:

Wafer cleaning
CMP systems
Magnetic Drive Pumps
Advantages:

No mechanical seals
Zero leakage
Long service life
Ideal for:

High-volume chemical transfer
Precision Flow Control
Many semiconductor processes require highly accurate chemical dosing.

Flow control components include:

Mass flow controllers
Flow meters
Pressure regulators
Back pressure valves
Precision control valves
Critical performance indicators include:

Stable flow rate
Minimal pressure fluctuation
High repeatability
Fast response time
Stable flow directly contributes to process consistency.

Filtration Performance
Chemical filtration is essential for contamination control.

Typical filter ratings include:

0.2 μm
0.1 μm
0.05 μm
0.03 μm
High-quality filters remove:

Particles
Gel contaminants
Precipitates
Manufacturing residues
Proper filtration extends equipment life and improves wafer yield.

Safety Features
Handling hazardous chemicals requires multiple layers of protection.

Essential safety features include:

Leak Detection
Continuous monitoring detects chemical leakage immediately.

Sensors can identify:

Acid leaks
Solvent leaks
Toxic chemical leakage
Automatic Emergency Shutdown
If abnormal conditions occur, the system automatically:

Stops chemical delivery
Closes valves
Activates alarms
Protects personnel
Secondary Containment
Containment trays prevent chemical spills from spreading.

Benefits include:

Environmental protection
Easier cleanup
Regulatory compliance
Exhaust Ventilation
Chemical cabinets should include dedicated exhaust systems that safely remove hazardous vapors before they accumulate.

Redundancy Design
High-volume production facilities cannot tolerate downtime.

Redundancy options include:

Dual pumps
Dual filters
Dual pressure regulators
Dual chemical tanks
Automatic switchover
Redundant systems maintain continuous production during maintenance or component replacement.

Monitoring and Data Management
Industry 4.0 manufacturing requires intelligent monitoring.

Advanced systems provide:

Real-time process monitoring
Historical data logging
Alarm history
Chemical consumption analysis
Predictive maintenance
Remote troubleshooting
Communication protocols often include:

Ethernet/IP
Modbus TCP
OPC UA
PROFINET
SECS/GEM
These capabilities simplify factory integration and support digital manufacturing initiatives.

Cleanroom Compatibility
Semiconductor chemical delivery systems should meet cleanroom standards.

Consider:

Particle-free assembly
Cleanroom packaging
High purity tubing
Orbital welding
Low outgassing materials
Factory acceptance testing (FAT)
Cleanroom-compatible systems help maintain stringent contamination control requirements.

Compliance with International Standards
Ensure the supplier designs systems according to recognized industry standards.

Relevant standards include:

SEMI Standards
CE Certification
ISO 9001
ISO 14644 Cleanroom Standards
NFPA Guidelines
OSHA Safety Requirements
RoHS Compliance
REACH Compliance
Compliance demonstrates product quality, safety, and reliability.

Ease of Maintenance
Maintenance directly influences operating costs.

Choose systems with:

Modular design
Easy filter replacement
Quick pump maintenance
Accessible valves
Simplified calibration
Remote diagnostics
A maintainable design reduces downtime and lowers lifecycle costs.

Scalability and Future Expansion
Manufacturing capacity often increases over time.

Select a system capable of supporting:

Additional chemical lines
Higher flow rates
Extra process tools
Future automation upgrades
Scalable architecture protects long-term investment.

Supplier Experience
Selecting an experienced manufacturer is just as important as selecting the equipment itself.

A qualified supplier should provide:

Engineering consultation
Custom system design
Process optimization
Factory acceptance testing
Site installation support
Commissioning services
Operator training
Technical documentation
Spare parts availability
Global after-sales service
Experienced suppliers also understand the unique requirements of semiconductor fabs and can recommend optimized solutions for different chemical processes.

Total Cost of Ownership (TCO)
The lowest purchase price does not necessarily represent the best value.

Consider the Total Cost of Ownership, including:

Initial equipment cost
Installation expenses
Energy consumption
Chemical efficiency
Maintenance costs
Spare parts
Production downtime
Equipment lifespan
A high-quality system with superior reliability often delivers significantly lower operating costs over its service life.

Questions to Ask Before Purchasing
Before making a final decision, ask the supplier:

Which chemicals has the system been validated to handle?
What purity level can the system maintain?
Which wetted materials are used?
Does the system support automatic drum changeover?
What safety certifications are available?
Can the system integrate with our factory PLC or SCADA?
What filtration accuracy is provided?
Is preventive maintenance easy to perform?
What warranty is included?
Is local technical support available?
Can the system be customized for future production expansion?
These questions help ensure the selected solution aligns with both current operational requirements and future growth plans.

Conclusion
Choosing a High Purity Chemical Delivery System is a strategic investment that directly influences manufacturing quality, operational safety, equipment reliability, and production efficiency. Rather than focusing solely on upfront cost, decision-makers should evaluate the complete solution—including chemical compatibility, material purity, automation capabilities, precision flow control, filtration performance, safety systems, cleanroom compliance, scalability, and supplier expertise.

A well-designed system delivers far more than chemicals; it provides stable process performance, minimizes contamination risks, reduces maintenance and downtime, and supports consistent production in demanding industries such as semiconductor fabrication, pharmaceuticals, biotechnology, and advanced electronics manufacturing. By carefully assessing both technical specifications and long-term operating costs, manufacturers can select a chemical delivery solution that ensures dependable performance today while remaining flexible enough to meet the evolving needs of tomorrow’s high-purity production environments.
