Introduction
Specialty gases play a critical role in modern industries, including semiconductor manufacturing, pharmaceuticals, biotechnology, analytical laboratories, aerospace, renewable energy, laser technology, and advanced research facilities. Many of these gases are highly pure, corrosive, toxic, flammable, oxidizing, or pyrophoric, making precise pressure regulation and safe gas delivery essential. Any pressure fluctuation, contamination, or leakage can affect product quality, equipment reliability, operator safety, and regulatory compliance.

OEM Pressure Control Panels are engineered gas distribution systems specifically designed to provide stable, accurate, and safe control of specialty gases throughout production processes. Unlike standard gas regulators, OEM pressure control panels integrate multiple components into a compact, customized assembly that simplifies installation while significantly improving operational safety and gas delivery performance.

As industrial processes continue to demand higher purity standards and greater automation, OEM pressure control panels have become indispensable components in modern gas delivery systems.

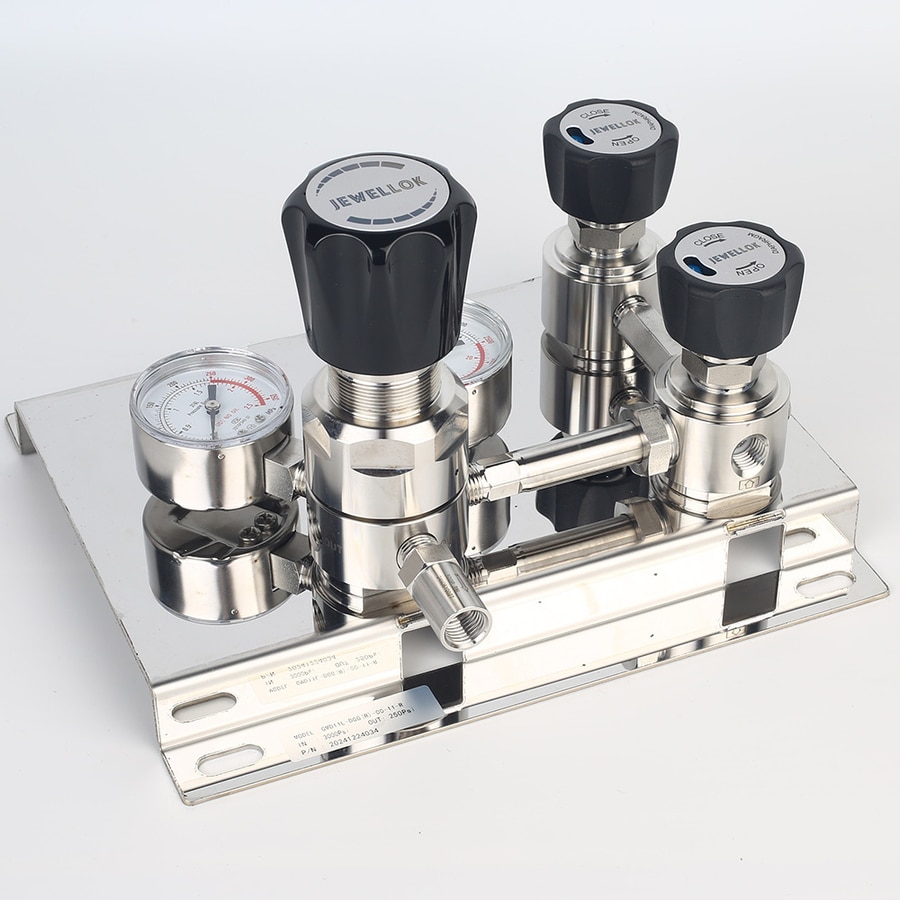

high pressure specialty gas regulators manufacturers
high pressure specialty gas regulators manufacturers
What Are OEM Pressure Control Panels?
OEM (Original Equipment Manufacturer) Pressure Control Panels are customized gas control assemblies designed to regulate, monitor, and distribute specialty gases from cylinders, tube trailers, bulk storage tanks, or gas cabinets to process equipment.

Each panel is manufactured according to the customer’s operating pressure, gas type, flow requirements, installation environment, purity level, and automation requirements.

A typical pressure control panel combines several precision-engineered components into one integrated system, including:

High-purity pressure regulators
Stainless steel diaphragm valves
Ball valves
Needle valves
Pressure gauges
Pressure transmitters
Relief valves
Check valves
Filters
Automatic shut-off valves
Purge systems
Vent valves
PLC control modules
Gas leak monitoring interfaces
Rather than assembling these components individually on-site, OEM pressure panels are factory tested, leak tested, cleaned, and certified before shipment, greatly reducing installation time and operational risk.

Why Specialty Gas Applications Require Precision Pressure Control
Specialty gases differ significantly from ordinary industrial gases.

Many gases used in semiconductor fabs and chemical processes require purity levels exceeding 99.999% (5N), 99.9999% (6N), or even 99.99999% (7N). Even microscopic contamination can ruin expensive manufacturing batches.

Typical specialty gases include:

Hydrogen (H₂)
Nitrogen (N₂)
Argon (Ar)
Helium (He)
Oxygen (O₂)
Silane (SiH₄)
Ammonia (NH₃)
Chlorine (Cl₂)
Hydrogen Chloride (HCl)
Hydrogen Fluoride (HF)
Boron Trichloride (BCl₃)
Sulfur Hexafluoride (SF₆)
Nitrous Oxide (N₂O)
Carbon Monoxide (CO)
These gases often present challenges such as:

High toxicity
Strong corrosiveness
High pressure storage
Extremely low moisture tolerance
Ultra-high purity requirements
Reactive chemical properties
OEM pressure control panels maintain stable outlet pressure while minimizing pressure decay, contamination, and particle generation.

Key Components of OEM Pressure Control Panels
High-Purity Pressure Regulators
Pressure regulators are the heart of every pressure control panel.

They reduce cylinder pressure, which may exceed 3,000 psi, to a precise working pressure suitable for downstream equipment.

High-quality regulators provide:

Excellent pressure stability
Low droop
Minimal supply pressure effect
Low internal volume
High repeatability
Metal-to-metal sealing
Low particle generation
Materials commonly include:

316L VAR stainless steel
316L VIM-VAR stainless steel
Hastelloy
Monel
Nickel alloys
Diaphragm Valves
Diaphragm valves isolate gas flow without contaminating the gas stream.

Compared with conventional valves, metal diaphragm valves offer:

Zero dead volume
High cycle life
Bubble-tight sealing
Low leakage rates
Excellent corrosion resistance
These valves are widely used in semiconductor-grade gas systems.

Pressure Gauges and Transmitters
Operators must monitor system pressure continuously.

Pressure gauges provide local visual indication, while transmitters send electronic signals to PLC or SCADA systems for remote monitoring.

Modern systems often include:

Digital pressure sensors
Analog transmitters
Alarm outputs
Data logging capability
Relief Valves
Pressure relief valves protect downstream equipment from accidental overpressure.

These devices automatically vent gas if pressure exceeds the preset limit, protecting both equipment and personnel.

Purge Systems
Before introducing a specialty gas into the process line, purge systems remove:

Moisture
Oxygen
Residual process gases
Airborne contaminants
Typical purge gases include:

High-purity nitrogen
Argon
Helium
Effective purging significantly extends component life while maintaining gas purity.

Advantages of OEM Customized Pressure Control Panels
Tailored Design
Every industrial application has unique operating conditions.

OEM manufacturers customize:

Operating pressure
Flow rate
Number of gas lines
Mounting configuration
Material compatibility
Automation level
Communication protocol
Safety functions
This ensures maximum compatibility with existing equipment.

Higher Safety Standards
Specialty gases can present significant hazards.

OEM panels incorporate multiple safety features, including:

Emergency shut-off valves
Gas leak detection interfaces
Pressure alarms
Automatic isolation
Purge interlocks
Vent systems
Pressure relief devices
These features reduce operational risks and improve workplace safety.

Improved Gas Purity
Gas contamination often originates from poor component selection or improper installation.

Factory-built OEM panels are manufactured in clean environments using:

Orbital welding
Electropolished tubing
High-purity fittings
Precision cleaning
Helium leak testing
This helps maintain ultra-high purity throughout the gas distribution system.

Faster Installation
Factory-assembled systems eliminate complicated field assembly.

Customers simply:

Mount the panel
Connect gas supply
Connect outlet tubing
Connect electrical controls
Perform commissioning
Installation time may be reduced from several days to only a few hours.

Reduced Maintenance Costs
Integrated pressure control panels reduce:

Leak points
Assembly errors
Maintenance frequency
Spare parts inventory
Downtime
This lowers the overall cost of ownership.

Industries Using OEM Pressure Control Panels
Semiconductor Manufacturing
Semiconductor fabrication requires extremely stable gas delivery.

Applications include:

Chemical Vapor Deposition (CVD)
Atomic Layer Deposition (ALD)
Plasma Etching
Ion Implantation
Wafer Cleaning
Diffusion Furnaces
Pressure fluctuations can directly affect wafer yield and device performance.

Pharmaceutical Manufacturing
Pharmaceutical production relies on specialty gases for:

Sterile processing
Fermentation
Freeze drying
Packaging
Laboratory analysis
Pressure control panels help maintain product consistency while meeting GMP requirements.

Biotechnology
Biotechnology laboratories use specialty gases in:

Cell culture
Bioreactors
Incubators
Chromatography
Analytical instruments
Accurate gas pressure improves experimental repeatability.

Analytical Laboratories
Gas chromatography, ICP-MS, mass spectrometry, and spectroscopy systems require highly stable carrier gas pressure.

OEM pressure panels improve analytical accuracy and instrument reliability.

Chemical Processing
Chemical plants handle numerous hazardous gases.

Pressure control panels provide safe gas distribution for:

Reactors
Mixing systems
Pilot plants
Process control equipment
Aerospace Industry
Aerospace manufacturing utilizes specialty gases during:

Welding
Heat treatment
Composite production
Testing laboratories
Reliable gas pressure improves manufacturing quality.

Automation and Smart Monitoring
Modern OEM pressure control panels increasingly incorporate Industry 4.0 technologies.

Smart systems may include:

PLC control
HMI touch screens
Ethernet communication
Modbus TCP/IP
Profinet
EtherNet/IP
Remote diagnostics
Cloud monitoring
Predictive maintenance
Real-time monitoring enables operators to detect abnormal pressure changes before equipment failure occurs.

Integration with plant control systems also improves production efficiency while reducing manual intervention.

Material Selection for Specialty Gas Systems
Material compatibility is critical.

The most commonly used material is 316L stainless steel due to its:

Corrosion resistance
Excellent weldability
Low sulfur content
High cleanliness
Mechanical strength
For highly corrosive gases, manufacturers may choose:

Hastelloy C-276
Monel
Nickel 200
PTFE-lined components
PFA tubing
Electropolishing further reduces surface roughness, minimizing particle generation and gas adsorption.

Quality Standards and Testing
Reliable OEM pressure control panels undergo rigorous quality control procedures.

Typical testing includes:

Helium leak testing
Pressure proof testing
Functional testing
Flow testing
Cleanliness verification
Oxygen service cleaning
Surface roughness inspection
Material traceability verification
Many manufacturers also comply with international standards such as:

ISO 9001
SEMI standards
CGA guidelines
CE requirements
RoHS compliance
PED requirements where applicable
Comprehensive testing ensures long-term reliability in demanding industrial environments.

Factors to Consider When Choosing an OEM Pressure Control Panel Supplier
Selecting the right OEM manufacturer is essential for system performance and long-term reliability.

Key evaluation criteria include:

Experience in specialty gas systems
Engineering customization capability
Cleanroom manufacturing
High-purity component sourcing
Precision welding expertise
Leak testing capability
Material certification
International quality certifications
Technical support
Global after-sales service
An experienced supplier should also provide complete engineering documentation, including P&ID drawings, pressure calculations, operating manuals, inspection reports, and test certificates.

Future Trends in Specialty Gas Pressure Control
The demand for advanced pressure control solutions continues to grow as industries pursue greater automation, sustainability, and manufacturing precision.

Future developments are expected to include:

AI-assisted pressure regulation
Intelligent self-diagnostic systems
Digital twin technology
Predictive maintenance analytics
Remote cloud-based management
Fully automated gas changeover systems
Integrated gas monitoring and safety platforms
Compact modular panel designs
As semiconductor nodes continue to shrink and high-tech manufacturing expands globally, OEM pressure control panels will become increasingly sophisticated while delivering higher precision, greater reliability, and enhanced operational safety.

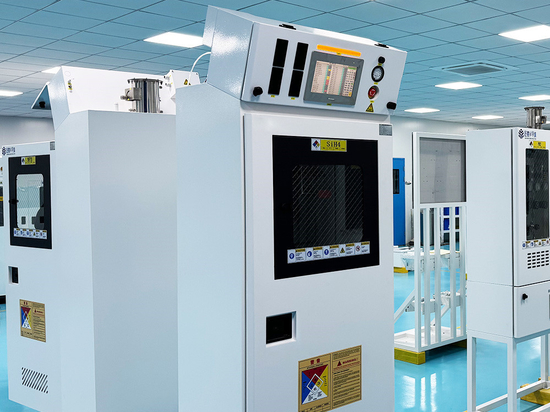

high pressure hydrogen gas manifold system
high pressure hydrogen gas manifold system
Conclusion
OEM Pressure Control Panels have become essential components in specialty gas delivery systems across semiconductor manufacturing, pharmaceuticals, biotechnology, laboratories, chemical processing, and numerous other high-tech industries. By integrating precision regulators, high-purity valves, monitoring instruments, safety devices, and intelligent control technologies into a single customized assembly, these systems ensure stable pressure regulation, exceptional gas purity, and reliable process performance.

Compared with conventional gas distribution methods, OEM-engineered pressure control panels offer significant advantages, including improved safety, reduced contamination risk, simplified installation, lower maintenance costs, and seamless integration with automated manufacturing environments. As industrial processes continue to demand higher purity standards, stricter safety requirements, and smarter factory operations, investing in a professionally designed OEM pressure control panel is a strategic decision that supports long-term productivity, regulatory compliance, and operational excellence.
