The semiconductor industry operates in an environment where contamination measured in parts per billion can ruin an entire production batch. As chip geometries continue to shrink and process complexity increases, manufacturers rely on highly controlled gas and chemical delivery systems to maintain yield and device performance. One critical component within these systems is the ultra high purity (UHP) diaphragm valve.

UHP diaphragm valves are specifically engineered to handle high-purity gases and chemicals while minimizing particle generation, leakage, and contamination. Their clean internal surfaces, hermetic sealing, and precision control make them indispensable throughout semiconductor fabrication facilities (fabs).

This article explores the most common applications of UHP diaphragm valves in semiconductor manufacturing, explaining how they support process integrity, equipment reliability, and production efficiency.

What Are Ultra High Purity Diaphragm Valves?
A UHP diaphragm valve is a specialized valve designed for applications requiring extremely clean fluid or gas handling. Unlike conventional valves that use stem packing, diaphragm valves isolate the process fluid from the actuator and external environment using a flexible diaphragm. This design eliminates dead space, reduces contamination risk, and provides excellent leak tightness.

Key features include
High-purity wetted surfaces: Typically made from electropolished 316L stainless steel or high-purity alloys.
Minimal dead volume: Prevents gas entrapment and particle accumulation.
Excellent leak integrity: Often tested to helium leak rates below 1×10⁻⁹ std cc/sec.
Cleanroom compatibility: Designed for semiconductor-grade cleanliness and low particle generation.
Precise flow control: Supports automated process control systems.
These characteristics make UHP diaphragm valves ideal for the demanding conditions found in semiconductor fabs.

Why Purity Matters in Semiconductor Manufacturing
Semiconductor devices are built layer by layer using processes such as chemical vapor deposition (CVD), atomic layer deposition (ALD), etching, doping, and cleaning. Many of these steps involve reactive gases and ultra-pure chemicals delivered through complex piping networks.

Contaminants such as particles, moisture, hydrocarbons, or metal ions can cause:

Defects in thin films
Poor adhesion or uniformity
Electrical failures
Reduced wafer yield
Equipment downtime
To prevent these issues, fabs implement strict contamination control protocols, and UHP diaphragm valves play a central role in maintaining system purity.

1. Process Gas Delivery Systems
Application Overview
One of the most widespread uses of UHP diaphragm valves is in process gas delivery systems. Semiconductor tools require precise amounts of gases such as nitrogen (N₂), argon (Ar), hydrogen (H₂), silane (SiH₄), ammonia (NH₃), and various fluorinated compounds.

These gases must remain ultra-pure from the storage source to the process chamber.

Role of the Valve
Isolates gas lines during maintenance or cylinder changeover
Controls gas flow to individual process tools
Prevents backflow and cross-contamination between gas lines
Maintains leak-tight operation under high-purity conditions
Why UHP Diaphragm Valves Are Used
Smooth electropolished surfaces minimize particle shedding
Hermetic sealing prevents atmospheric contamination
Low dead volume ensures rapid purge and gas exchange
Compatibility with corrosive and reactive gases
In modern fabs, automated gas cabinets and distribution panels commonly integrate pneumatically actuated UHP diaphragm valves for precise and repeatable control.

2. Chemical Vapor Deposition (CVD) Systems
Application Overview
CVD processes deposit thin films onto wafers by reacting gaseous precursors at elevated temperatures. Examples include deposition of silicon nitride, silicon dioxide, tungsten, and metal films.

The purity and consistency of precursor gas delivery directly affect film quality and uniformity.

Role of the Valve
Regulates precursor gas flow into the reactor
Isolates process lines during recipe changes
Enables safe shutdown and maintenance procedures
Supports automated sequencing in deposition tools
Why UHP Diaphragm Valves Are Used
Minimize contamination that could create film defects
Provide reliable operation at elevated temperatures and pressures
Offer fast actuation for precise process timing
Resist corrosion from reactive precursor gases
Because CVD processes are highly sensitive to impurities, UHP diaphragm valves are essential for maintaining stable deposition conditions.

3. Atomic Layer Deposition (ALD) Systems
Application Overview
ALD is an advanced deposition technique that builds films one atomic layer at a time through alternating precursor pulses. The process demands extremely precise timing and complete isolation between precursor exposures.

Role of the Valve
Delivers short, repeatable precursor pulses
Separates different precursor lines to avoid premature reactions
Controls purge gas flow between ALD cycles
Ensures rapid switching with minimal dead volume
Why UHP Diaphragm Valves Are Used
Exceptional sealing prevents cross-contamination
Low internal volume enables sharp pulse transitions
High cycle life supports continuous automated operation
Clean surfaces reduce particle generation during repeated cycling
In ALD systems, valve performance directly influences film thickness control and conformality, making UHP diaphragm valves a critical component.

4. Etching Systems
Application Overview
Etching removes material from wafer surfaces using plasma or wet chemical processes. Plasma etching often uses gases such as CF₄, SF₆, Cl₂, and HBr, which can be highly reactive and corrosive.

Role of the Valve
Controls the delivery of etchant gases to the plasma chamber
Isolates gas lines during chamber cleaning and maintenance
Supports rapid gas switching for complex etch recipes
Helps maintain stable chamber pressure and flow conditions
Why UHP Diaphragm Valves Are Used
Corrosion-resistant materials withstand aggressive gases
Leak-tight sealing prevents hazardous gas release
Fast response times improve process repeatability
Contamination control protects wafer integrity
Given the hazardous nature of many etching gases, UHP diaphragm valves also contribute significantly to fab safety and environmental compliance.

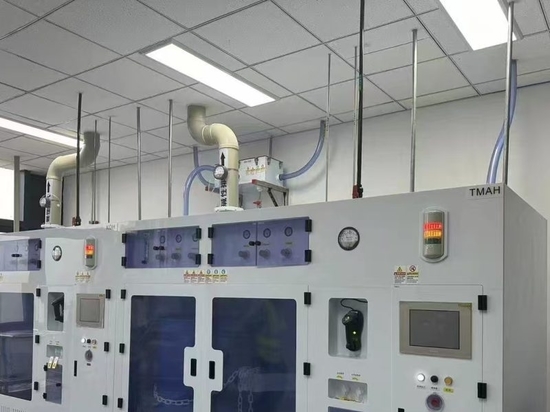

5. Wet Chemical Distribution Systems
Application Overview
Semiconductor fabs use ultra-pure chemicals such as hydrofluoric acid (HF), sulfuric acid (H₂SO₄), ammonium hydroxide (NH₄OH), and deionized water for cleaning and surface preparation.

These chemicals are distributed through dedicated piping systems to wet benches and cleaning tools.

Role of the Valve
Controls chemical flow to process equipment
Isolates distribution loops for maintenance
Enables safe draining and flushing operations
Prevents cross-contamination between chemical lines
Why UHP Diaphragm Valves Are Used
High-purity materials prevent ionic contamination
Smooth internal surfaces reduce particle buildup
Chemical compatibility with aggressive cleaning agents
Reliable sealing minimizes leak risks
For wet chemical systems, valve cleanliness is especially important because trace metal contamination can severely impact device performance.

6. Bulk Gas Distribution and Utility Systems
Application Overview
Fabs rely on large-scale utility systems that distribute bulk gases such as nitrogen, argon, and clean dry air throughout the facility. These systems support purging, inerting, and equipment operation.

Role of the Valve
Sections and isolates distribution lines
Controls gas supply to different fab areas
Supports maintenance without shutting down the entire network
Maintains system integrity during pressure changes
Why UHP Diaphragm Valves Are Used
Long-term reliability in continuous operation
Low leakage reduces gas waste and contamination risk
Clean internal surfaces maintain utility gas purity
Compatibility with automated facility management systems
Although utility gases may not be as reactive as process gases, maintaining high purity is still essential for sensitive semiconductor processes.

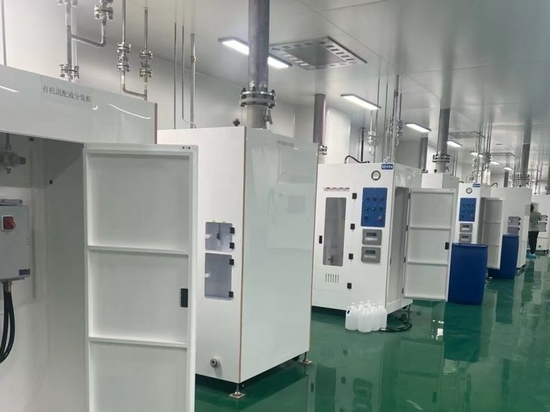

7. Gas Cabinets and Valve Manifold Boxes (VMBs)
Application Overview
Gas cabinets store and manage hazardous process gases, while valve manifold boxes distribute those gases to multiple tools. These systems require precise control, monitoring, and safety interlocks.

Role of the Valve
Isolates individual gas cylinders
Controls automatic changeover between cylinders
Shuts off gas flow during alarms or emergencies
Routes gases to specific process tools
Why UHP Diaphragm Valves Are Used
Excellent leak integrity for hazardous gas handling
Fast actuation for emergency shutdowns
Clean design compatible with semiconductor gas purity standards
High reliability in automated safety systems
In gas cabinets, valve performance is closely tied to both process uptime and personnel safety.

8. Purge and Vent Systems
Application Overview
Before maintenance or gas line changes, semiconductor systems must be purged with inert gas and safely vented. Purge and vent systems remove residual process gases and prevent exposure to hazardous substances.

Role of the Valve
Directs purge gas through process lines
Controls venting to exhaust systems
Isolates sections of the system during service
Ensures complete removal of residual gases
Why UHP Diaphragm Valves Are Used
Low dead volume improves purge efficiency
Leak-tight operation prevents air ingress
Durable construction withstands frequent cycling
Clean surfaces reduce contamination during maintenance operations
Effective purge and vent operations are essential for safe maintenance and rapid tool turnaround.

Material and Design Considerations
To perform reliably in semiconductor environments, UHP diaphragm valves are manufactured with stringent material and design standards.

Common Materials
316L stainless steel: Widely used for its corrosion resistance and electropolishability.
Hastelloy and other nickel alloys: Used for highly corrosive applications.
PTFE/PFA diaphragms: Provide chemical resistance and low particle generation.
Surface Finish
Wetted surfaces are typically electropolished to a roughness average (Ra) of 10 microinches (0.25 µm) or better. Smoother surfaces reduce particle adhesion and improve cleanability.

Valve Configurations
Manual or pneumatic actuation
Normally open or normally closed designs
Two-way, three-way, or manifold configurations
Compact designs for high-density gas panels
These options allow valves to be tailored to specific semiconductor process requirements.

Benefits of UHP Diaphragm Valves in Semiconductor Fabs
Across all applications, UHP diaphragm valves provide several overarching benefits:

Contamination Control: Minimizes particles, moisture, and chemical impurities.
Process Stability: Ensures consistent gas and chemical delivery for repeatable manufacturing results.
Safety: Provides reliable isolation and leak-tight handling of hazardous materials.
Operational Efficiency: Supports automation, rapid maintenance, and high equipment uptime.
Regulatory Compliance: Helps fabs meet stringent cleanliness and environmental standards.

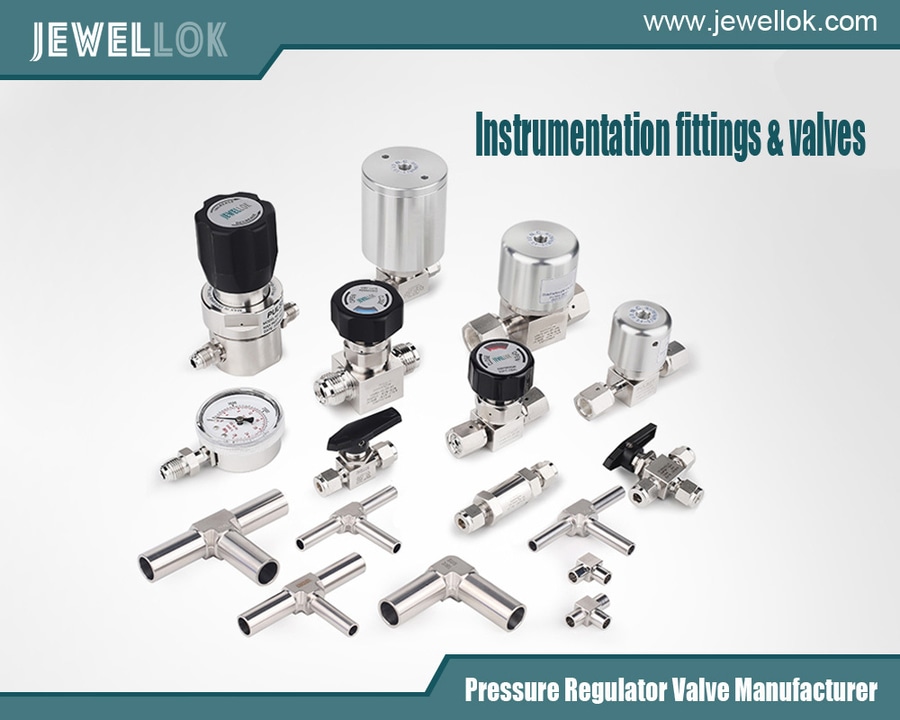

ultra high purity gas regulator manufacturer
ultra high purity gas regulator manufacturer
Conclusion
Ultra high purity diaphragm valves are foundational components in semiconductor manufacturing. From process gas delivery and advanced deposition systems to wet chemical distribution and safety-critical gas cabinets, these valves enable the precise, clean, and reliable handling of ultra-pure fluids and gases.

As semiconductor technology advances toward smaller nodes and more complex architectures, the demand for higher purity and tighter process control continues to grow. UHP diaphragm valves will remain essential in supporting contamination-free manufacturing, maximizing wafer yield, and ensuring the safe operation of modern semiconductor fabs.
