As semiconductor technology continues advancing toward smaller process nodes and higher production yields, the demand for safe, accurate, and intelligent specialty gas management systems has never been greater. Toxic, corrosive, flammable, pyrophoric, and high-purity gases are widely used in semiconductor fabrication, photovoltaic manufacturing, LED production, pharmaceutical processing, laboratory research, and advanced material synthesis. Managing these gases safely requires far more than traditional gas storage—it requires an intelligent gas delivery solution capable of continuous monitoring, automated control, and rapid emergency response.

A Fully Automatic Specialty Gas Cabinet with PLC Control represents the latest generation of industrial gas management technology. Unlike conventional manual gas cabinets, PLC-controlled systems integrate programmable automation, real-time monitoring, advanced safety interlocks, automatic switchover functions, remote communication, and comprehensive alarm management into one intelligent platform.

This article explains the working principles, key components, technical features, advantages, applications, and selection criteria of fully automatic specialty gas cabinets, demonstrating why they have become an essential part of modern semiconductor manufacturing and high-purity gas delivery systems.

What Is a Fully Automatic Specialty Gas Cabinet?

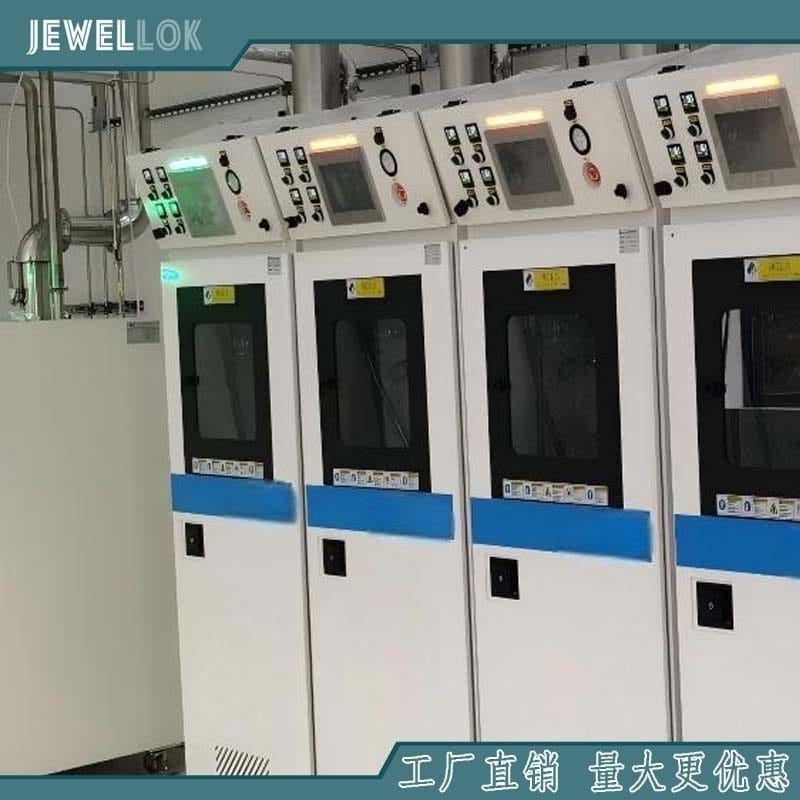

A fully automatic specialty gas cabinet is an enclosed safety system specifically designed to store, control, monitor, and distribute hazardous or high-purity gas cylinders safely.

The cabinet provides multiple levels of protection while ensuring continuous gas delivery to production equipment.

Typical gases include:

Silane (SiH₄)
Ammonia (NH₃)
Hydrogen Chloride (HCl)
Chlorine (Cl₂)
Hydrogen Fluoride (HF)
Boron Trichloride (BCl₃)
Phosphine (PH₃)
Arsine (AsH₃)
Nitrogen Trifluoride (NF₃)
Sulfur Hexafluoride (SF₆)
High Purity Nitrogen
Helium
Argon
Hydrogen
Oxygen
Because many of these gases are toxic, pyrophoric, corrosive, or explosive, international safety standards require highly automated handling systems with continuous monitoring and emergency protection.

Understanding PLC Control Technology
PLC stands for Programmable Logic Controller, an industrial computer designed for highly reliable automation.

Unlike traditional relay-based systems, PLC controllers provide:

Faster response speed
Flexible programming
Intelligent logic control
High reliability
Easy maintenance
Network communication
Data logging
Remote diagnostics
Inside a specialty gas cabinet, the PLC serves as the central control unit that coordinates every operational sequence.

It continuously collects signals from sensors, executes programmed logic, controls pneumatic valves, activates alarms, communicates with factory automation systems, and performs emergency shutdown procedures whenever abnormal conditions are detected.

Main Components of a Fully Automatic Gas Cabinet
A modern PLC-controlled specialty gas cabinet consists of several integrated subsystems.

Gas Cylinder Compartment
The cabinet safely houses one or multiple gas cylinders inside a sealed enclosure.

The compartment usually includes:

Automatic cylinder restraints
Ventilation system
Gas leak containment
Fire-resistant construction
Corrosion-resistant materials
PLC Control System
The PLC receives signals from every sensor throughout the cabinet.

Typical monitored parameters include:

Gas pressure
Cylinder pressure
Line pressure
Flow rate
Temperature
Gas leakage
Door status
Ventilation status
Emergency stop condition
The controller executes automatic operating sequences without manual intervention.

Human Machine Interface (HMI)
The HMI touchscreen allows operators to monitor and configure the cabinet.

Displayed information includes:

Gas pressure
Cylinder status
Valve status
Alarm history
System diagnostics
Operating mode
Gas consumption
Maintenance reminders
Modern HMIs provide multilingual interfaces with intuitive graphical displays.

Pneumatic Valve Assembly
High-purity pneumatic diaphragm valves control gas flow precisely.

These valves are automatically actuated by PLC outputs.

Advantages include:

Fast switching
Zero manual operation
High repeatability
Low leakage
Long service life
Pressure Control System
Pressure regulators ensure stable gas delivery.

Typical configuration includes:

Cylinder regulator
Line regulator
Pressure transmitters
Pressure switches
Relief valves
Automatic pressure adjustment maintains consistent downstream flow.

Gas Leak Detection System
Multiple gas detectors continuously monitor cabinet safety.

Detection technologies include:

Electrochemical sensors
Infrared sensors
Semiconductor sensors
Catalytic sensors
Once leakage exceeds preset thresholds, the PLC initiates emergency shutdown automatically.

Ventilation System
Continuous exhaust ventilation prevents hazardous gas accumulation.

Typical airflow ranges between:

200–500 CFM
Airflow monitoring ensures compliance with semiconductor cleanroom safety standards.

Automatic Operating Functions
PLC-controlled gas cabinets automate nearly every operational procedure.

Automatic Startup
Operators simply initiate the startup sequence from the HMI.

The PLC automatically verifies:

Door closure
Ventilation operation
Gas detector status
Emergency stop reset
Pressure conditions
Valve positions
Only after all safety conditions are satisfied will gas delivery begin.

Automatic Cylinder Changeover
Continuous production requires uninterrupted gas supply.

Dual-cylinder cabinets automatically switch from an empty cylinder to a full backup cylinder.

Benefits include:

Zero production interruption
Stable pressure
Reduced operator workload
Improved gas utilization
Automatic Purging
Purging removes residual hazardous gas before maintenance or cylinder replacement.

Typical purge gases include:

Nitrogen
High-purity nitrogen
Argon
The PLC controls purge timing, pressure, and cycle count automatically.

Automatic Pressure Regulation
Pressure sensors continuously monitor outlet pressure.

When pressure changes occur, the PLC adjusts regulators or valve positions to maintain process stability.

Automatic Emergency Shutdown (ESD)
Emergency shutdown occurs immediately if any abnormal condition is detected.

Trigger conditions include:

Gas leakage
Fire alarm
Overpressure
Low pressure
Ventilation failure
Earthquake sensor activation
Manual emergency stop
Toxic gas concentration exceeded
The PLC immediately:

Closes automatic valves
Isolates cylinders
Activates exhaust
Sounds alarms
Sends notifications
Records event history
Safety Features
Safety remains the highest priority for specialty gas cabinets.

Modern PLC-controlled systems incorporate multiple protection layers.

Continuous Gas Leak Monitoring
Gas detectors operate 24 hours a day.

Leak detection response time is typically less than one second.

Multiple Alarm Levels
Alarm classifications include:

Warning
High alarm
Critical alarm
Emergency shutdown
Visual and audible alarms ensure immediate operator awareness.

Safety Interlocks
Typical interlocks include:

Door interlock
Ventilation interlock
Pressure interlock
Leak detector interlock
Emergency stop interlock
Fire alarm interlock
These prevent unsafe operating conditions.

Fire Protection
Many systems integrate:

Heat detectors
Smoke detectors
Fire suppression interfaces
FM-200 compatibility
Clean agent systems
Redundant Monitoring
Critical parameters often employ redundant sensors for improved reliability.

Dual pressure transmitters and duplicate gas detectors reduce failure risks.

Communication and Industry 4.0 Integration
Modern semiconductor fabs require centralized monitoring.

PLC-controlled gas cabinets support multiple communication protocols including:

Modbus RTU
Modbus TCP
EtherNet/IP
PROFINET
DeviceNet
OPC UA
SECS/GEM
These protocols enable seamless integration with:

SCADA systems
Building Management Systems (BMS)
Manufacturing Execution Systems (MES)
Factory Automation Systems
Environmental Monitoring Systems
Remote monitoring allows engineers to supervise cabinet performance from centralized control rooms.

Advantages of Fully Automatic PLC-Controlled Gas Cabinets
Improved Safety
Automation significantly reduces operator exposure to hazardous gases.

Emergency shutdown occurs much faster than manual response.

Higher Production Efficiency
Automatic cylinder switching eliminates downtime during cylinder replacement.

Production continues without interruption.

Consistent Gas Delivery
PLC regulation maintains stable pressure and flow.

This improves process consistency and product quality.

Reduced Human Error
Automation minimizes manual valve operation and procedural mistakes.

Standardized operating sequences improve repeatability.

Easier Maintenance
The HMI provides maintenance reminders and diagnostic information.

Fault localization becomes faster and more accurate.

Comprehensive Data Logging
Every event is automatically recorded, including:

Alarm history
Pressure trends
Valve operations
Gas consumption
Maintenance records
Operator actions
Historical data supports predictive maintenance and regulatory compliance.

Typical Industrial Applications
Fully automatic specialty gas cabinets are widely used across numerous industries.

Semiconductor Manufacturing
Applications include:

CVD
PECVD
ALD
Etching
Ion implantation
Diffusion
Cleaning
Lithography
LED Manufacturing
Specialty gases support:

MOCVD
Epitaxy
Surface treatment
Process chamber cleaning
Solar Cell Production
Gas cabinets control specialty gases used in:

Thin-film deposition
PECVD
Surface passivation
Pharmaceutical Industry
High-purity gases are used for:

Sterile manufacturing
Process control
Analytical laboratories
Research facilities
University Laboratories
Research laboratories require precise gas control for:

Material science
Chemical synthesis
Nanotechnology
Analytical instrumentation
Material Selection
High-purity gas cabinets require carefully selected materials.

Common wetted materials include:

316L VAR Stainless Steel
316L VIM-VAR Stainless Steel
Hastelloy
Nickel alloys
Surface finish typically reaches:

Ra ≤ 0.25 μm
Electropolished tubing minimizes particle generation and contamination.

Orbital welding further improves cleanliness and leak integrity.

Compliance with International Standards
Reliable specialty gas cabinets should comply with internationally recognized safety standards, including:

SEMI S2
SEMI S6
SEMI S8
SEMI F19
NFPA 55
NFPA 318
CGA standards
ISO 9001
CE Certification
UL requirements (where applicable)
Compliance ensures both operator safety and compatibility with global semiconductor manufacturing facilities.

Factors to Consider When Selecting a Gas Cabinet
Choosing the right fully automatic specialty gas cabinet requires evaluating several technical parameters.

Key considerations include:

Type of specialty gas
Gas purity level
Toxicity classification
Cylinder size and quantity
Required flow rate
Operating pressure
Purge requirements
Leak detection technology
Communication protocol compatibility
Cleanroom classification
Automation level
Future expansion capability
Preventive maintenance requirements
Partnering with an experienced manufacturer ensures the system is tailored to process requirements while meeting all applicable safety regulations.

Future Development Trends
As smart manufacturing continues to evolve, specialty gas cabinets are becoming increasingly intelligent.

Emerging innovations include:

AI-assisted fault prediction
Cloud-based remote monitoring
Digital twin technology
Predictive maintenance analytics
Edge computing
Cybersecurity enhancements
IoT-enabled sensors
Energy-efficient ventilation systems
Automatic calibration functions
Self-diagnostic software
These advancements will further improve safety, reliability, and operational efficiency while reducing maintenance costs and downtime.

High Volume High Pressure Oxygen Regulators
High Volume High Pressure Oxygen Regulators
Conclusion
A Fully Automatic Specialty Gas Cabinet with PLC Control is far more than a storage enclosure—it is an intelligent safety and gas management platform designed for today’s demanding industrial environments. By combining programmable logic control, real-time monitoring, automatic pressure regulation, cylinder changeover, leak detection, emergency shutdown, and seamless factory integration, these systems deliver exceptional levels of safety, reliability, and operational efficiency.

For industries such as semiconductor manufacturing, photovoltaics, pharmaceuticals, research laboratories, and advanced materials processing, investing in a PLC-controlled specialty gas cabinet helps protect personnel, maintain product quality, reduce downtime, and comply with stringent international safety standards. As Industry 4.0 and smart factory technologies continue to evolve, fully automated gas cabinets will remain a cornerstone of safe, connected, and high-performance gas delivery systems.
