As semiconductor technology advances toward smaller process nodes and increasingly complex device structures, Atomic Layer Deposition (ALD) has become one of the most important thin-film deposition technologies in modern chip manufacturing. ALD enables atomic-scale precision, exceptional film uniformity, and excellent conformality over complex three-dimensional structures, making it indispensable for logic ICs, memory devices, power semiconductors, MEMS, LEDs, and advanced packaging.

The performance of an ALD process depends not only on the reactor itself but also on the reliability and precision of its gas delivery system. At the heart of this system is the ALD Gas Cabinet, which safely stores, controls, monitors, and delivers ultra-high purity (UHP) process gases to the deposition chamber.

A properly designed ALD gas cabinet ensures stable gas flow, contamination-free delivery, operator safety, and compliance with semiconductor industry standards. This article explains the major components of an ALD gas cabinet, its gas delivery architecture, and the engineering principles that guarantee reliable operation in advanced semiconductor manufacturing.

What Is an ALD Gas Cabinet?

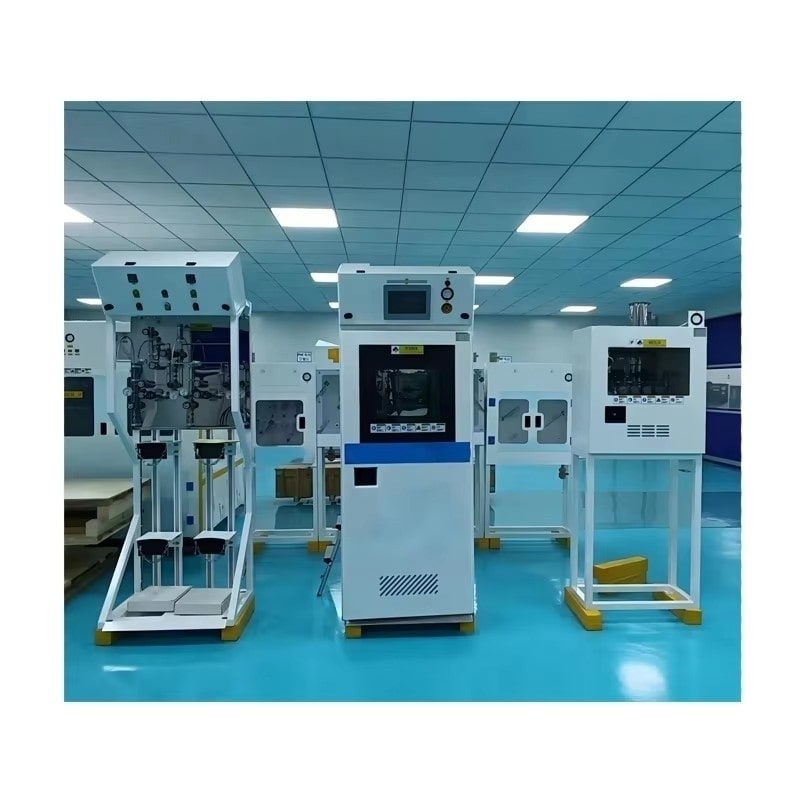

An ALD Gas Cabinet is an integrated gas management system designed to deliver highly purified process gases from gas cylinders to ALD equipment under precisely controlled pressure, flow rate, and timing.

Unlike conventional industrial gas systems, semiconductor ALD applications require:

Ultra-high purity gas delivery
Zero particle generation
Minimal dead volume
Extremely low leak rates
Precise pressure regulation
Automated safety monitoring
Fast purge capability
Continuous gas supply
Typical gases handled include:

Trimethylaluminum (TMA)
Titanium Tetrachloride (TiCl₄)
Hafnium Precursors
Ammonia (NH₃)
Nitrogen (N₂)
Argon (Ar)
Hydrogen (H₂)
Oxygen (O₂)
Ozone (O₃)
Silane (SiH₄)
Tungsten Hexafluoride (WF₆)
Many of these gases are toxic, pyrophoric, corrosive, or highly reactive, making sophisticated gas cabinet design essential.

Overall Gas Delivery Architecture
An ALD gas delivery architecture consists of several interconnected subsystems that work together to maintain gas purity and process stability.

The typical gas flow path includes:

Gas Cylinder

↓

Cylinder Connection Assembly

↓

Cylinder Valve

↓

Pressure Regulator

↓

Purge Panel

↓

Valve Manifold

↓

Mass Flow Controller (MFC)

↓

Pressure Sensors

↓

Automatic Isolation Valves

↓

Process Delivery Line

↓

ALD Reactor

↓

Exhaust & Scrubber System

Each stage is designed to eliminate contamination while maintaining precise gas control.

Primary Components of an ALD Gas Cabinet
1. Gas Cylinder Interface
The cylinder interface connects specialty gas cylinders to the cabinet.

Key features include:

VCR face seal fittings
High-purity stainless steel tubing
Double containment
Leak-free connections
Easy cylinder replacement
Most semiconductor manufacturers use orbital welded tubing to eliminate particle generation and dead volume.

2. Cylinder Valve Assembly
The cylinder valve controls the initial release of gas into the system.

Modern systems often incorporate:

Pneumatic actuation
Automatic shutdown
Position feedback
Emergency isolation
Remote monitoring
Automatic actuation minimizes operator exposure to hazardous gases.

3. High Purity Pressure Regulators
Pressure regulators reduce cylinder pressure to a stable working pressure suitable for process control.

Important characteristics include:

Low internal volume
Low droop
High sensitivity
Corrosion resistance
Metal diaphragm construction
For semiconductor applications, regulators are typically manufactured from:

316L VIM-VAR Stainless Steel
Hastelloy
Nickel Alloys
Electropolished internal surfaces further reduce contamination.

4. Diaphragm Valves
Ultra-high purity diaphragm valves are among the most important components.

Their functions include:

Gas isolation
Flow switching
Purging
Process sequencing
Emergency shutdown
High-end diaphragm valves offer:

Helium leak rate below 1×10⁻⁹ atm·cc/sec
Electropolished flow path
Minimal dead volume
High cycle life
Particle-free operation
Cobalt alloy diaphragms provide superior fatigue resistance during repeated cycling.

5. Mass Flow Controllers (MFC)
The Mass Flow Controller accurately measures and regulates gas flow.

Typical accuracy:

±0.5% to ±1% of full scale

MFCs are critical because ALD film thickness depends directly on precursor dosage.

Advanced digital MFCs provide:

Fast response
High repeatability
Digital communication
Automatic calibration
Self diagnostics
6. Pressure Sensors and Transducers
Pressure monitoring ensures stable gas delivery throughout the deposition cycle.

Measurements include:

Cylinder pressure
Line pressure
Process pressure
Differential pressure
Pressure data enables:

Leak detection
Flow verification
Process optimization
Predictive maintenance
7. Purge System
Purging removes residual gases before introducing another precursor.

Typical purge gases include:

High purity Nitrogen
Argon
Proper purge design prevents:

Cross contamination
Chemical reactions
Particle formation
Film defects
Automatic purge sequences are fully controlled by PLC software.

8. Valve Manifold
The manifold integrates multiple valves into one compact assembly.

Benefits include:

Reduced leak points
Compact layout
Faster gas switching
Simplified maintenance
Better flow consistency
Modern manifolds are orbital welded for maximum cleanliness.

9. Gas Filters
Particle contamination is a major concern in semiconductor fabrication.

Gas filters typically remove:

0.003 μm particles
Moisture
Metallic contamination
High-purity metal filters are positioned before critical process equipment.

10. PLC Control System
The Programmable Logic Controller coordinates all cabinet operations.

Functions include:

Valve sequencing
Pressure monitoring
Alarm management
Purge cycles
Interlock control
Emergency shutdown
Operator interface
Modern PLC systems communicate with factory automation using protocols such as:

EtherNet/IP
PROFINET
Modbus TCP
SECS/GEM
Safety Components
Handling hazardous semiconductor gases requires multiple redundant safety systems.

Typical safety devices include:

Gas Leak Detectors
Detect:

Hydrogen
Silane
Ammonia
Toxic gases
Oxygen deficiency
Immediate actions include:

Closing cylinder valves
Activating alarms
Starting exhaust systems
Stopping gas supply
Automatic Shutoff Valves
Fail-safe pneumatic valves immediately isolate hazardous gases during emergencies.

Ventilation System
Continuous ventilation prevents gas accumulation inside the cabinet.

Typical airflow ranges from:

200–500 CFM depending on cabinet size.

Fire Detection
Some cabinets include:

Heat sensors
Smoke detectors
Flame detectors
These integrate with facility emergency systems.

Emergency Stop (E-Stop)
The E-Stop button immediately shuts down:

Gas supply
Pneumatic control
Electrical outputs
while maintaining critical safety ventilation.

Gas Purity Considerations
Even parts-per-billion contamination can negatively affect ALD film quality.

Critical contamination sources include:

Moisture
Oxygen
Hydrocarbons
Metallic particles
Organic residues
To maintain purity, manufacturers use:

Electropolished tubing
Orbital welding
High purity valves
Metal gasket face seal fittings
Cleanroom assembly
Helium leak testing
Nitrogen purging
Internal surface roughness is typically below:

Ra 10 μin (0.25 μm)

Automation and Smart Monitoring
Modern semiconductor fabs increasingly adopt Industry 4.0 technologies.

Intelligent ALD gas cabinets provide:

Real-time monitoring
Remote diagnostics
Cloud connectivity
Predictive maintenance
Automatic gas consumption tracking
Historical data logging
Alarm trend analysis
Digital sensors continuously monitor:

Pressure
Temperature
Valve position
Gas concentration
Flow rate
This enables proactive maintenance before failures occur.

Materials Used in ALD Gas Cabinets
Material selection significantly influences contamination control and corrosion resistance.

Common materials include:

Component Material
Tubing 316L EP Stainless Steel
Diaphragm Valve 316L VIM-VAR
Diaphragm Cobalt Alloy
Pressure Regulator Hastelloy / 316L
Fittings VCR Stainless Steel
Filter Housing Electropolished Stainless Steel
These materials offer excellent corrosion resistance and ultra-clean performance.

Applications of ALD Gas Cabinets
ALD gas cabinets are widely used in:

Semiconductor wafer fabrication
Memory chip production
Logic IC manufacturing
Power semiconductor processing
MEMS fabrication
OLED manufacturing
LED production
Solar photovoltaic manufacturing
Nanotechnology research
University laboratories
Each application demands highly stable gas delivery and stringent contamination control.

Selecting the Right ALD Gas Cabinet
When evaluating an ALD gas cabinet, engineers should consider:

Gas compatibility
Number of gas lines
Pressure range
Flow accuracy
Purge efficiency
Leak integrity
Safety certifications
PLC functionality
Maintenance accessibility
Future scalability
Choosing a cabinet designed for your specific process chemistry helps maximize uptime, improve yield, and reduce operational risks.

Future Trends in ALD Gas Delivery Systems
The next generation of ALD gas cabinets is evolving to support advanced semiconductor manufacturing requirements. Key trends include:

AI-assisted predictive maintenance
Digital twin simulation
Enhanced cybersecurity for industrial control systems
Modular cabinet architecture
Higher integration density
Smart sensor networks
Energy-efficient pneumatic systems
Automated gas source changeover
Remote health monitoring
Full compatibility with smart semiconductor factories
As device geometries continue to shrink below the 2 nm node and new materials are introduced, gas delivery systems will require even greater precision, cleanliness, and reliability.


Conclusion
The ALD gas cabinet is a mission-critical subsystem in semiconductor manufacturing, serving as the foundation for safe, stable, and ultra-high purity gas delivery. Every component—from cylinder connections and pressure regulators to diaphragm valves, mass flow controllers, purge systems, and PLC automation—plays a vital role in maintaining process integrity and ensuring operator safety.

A well-designed gas delivery architecture not only minimizes contamination and enhances film quality but also improves equipment uptime, regulatory compliance, and long-term operational efficiency. As ALD technology continues to expand across advanced semiconductor, MEMS, OLED, and nanotechnology applications, investment in high-performance gas cabinet systems will remain essential for achieving superior manufacturing precision and consistent production yields.
