Turnkey UHP Gas Delivery System for Semiconductor Cleanroom Facilities

Turnkey UHP Gas Delivery System for Semiconductor Cleanroom Facilities

In modern semiconductor manufacturing, gas purity is directly linked to process integrity, wafer yield, and device performance. As semiconductor technology nodes continue to shrink below 5nm and advanced packaging technologies evolve rapidly, ultra-high purity (UHP) gas delivery infrastructure has become a critical component of cleanroom operations.

A turnkey UHP gas delivery system provides semiconductor fabrication facilities with a fully integrated solution for safe, precise, and contamination-free transportation of specialty gases from source to point of use (POU). From gas cabinets and valve manifold boxes (VMBs) to distribution pipelines, pressure control assemblies, and automated monitoring platforms, turnkey systems ensure reliable gas management throughout the production environment.

This article explores the architecture, design principles, key components, operational requirements, and technical advantages of turnkey UHP gas delivery systems for semiconductor cleanroom facilities.

Understanding UHP Gas Delivery Systems
Ultra-high purity gas delivery systems are engineered to transport process gases while maintaining extremely low contamination levels. Semiconductor fabs commonly utilize high-purity gases in processes such as:

Chemical Vapor Deposition (CVD)
Atomic Layer Deposition (ALD)
Plasma Etching
Ion Implantation
Oxidation
Diffusion
Metrology and Analytical Processes
Typical gases include:

Nitrogen (N₂)
Argon (Ar)
Helium (He)
Hydrogen (H₂)
Oxygen (O₂)
Silane (SiH₄)
Ammonia (NH₃)
Tungsten Hexafluoride (WF₆)
Chlorine (Cl₂)
Specialty precursor gases
Even trace contaminants such as moisture, oxygen, hydrocarbons, or particles measured in parts per billion (ppb) can negatively affect wafer fabrication processes.

Therefore, semiconductor cleanroom facilities require gas delivery systems designed to meet stringent purity, leak integrity, and safety standards.

What Is a Turnkey UHP Gas Delivery Solution?
A turnkey UHP gas delivery system refers to a fully engineered, installed, tested, and commissioned gas infrastructure package delivered by a single supplier or engineering contractor.

Rather than purchasing components separately, semiconductor manufacturers receive an integrated solution covering:

System engineering design
Gas source management
Gas cabinets
Valve manifold boxes (VMB)
Distribution piping

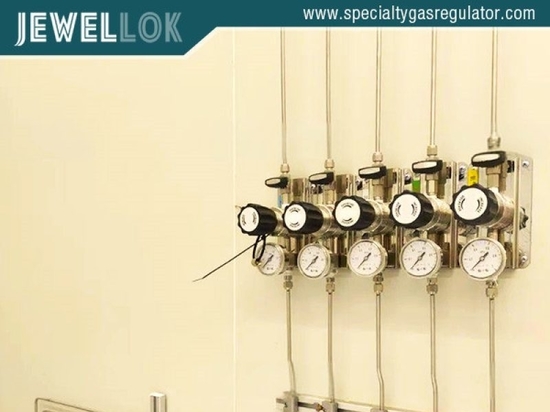

Pressure regulation assemblies
Automatic changeover systems
Gas monitoring and alarm integration
PLC / SCADA automation controls
Installation and orbital welding
Validation, testing, and commissioning
The primary objective is minimizing integration risk while accelerating fab deployment schedules.

Turnkey solutions reduce compatibility issues between subsystems and ensure compliance with semiconductor industry standards.

Core Components of a Semiconductor UHP Gas Delivery System

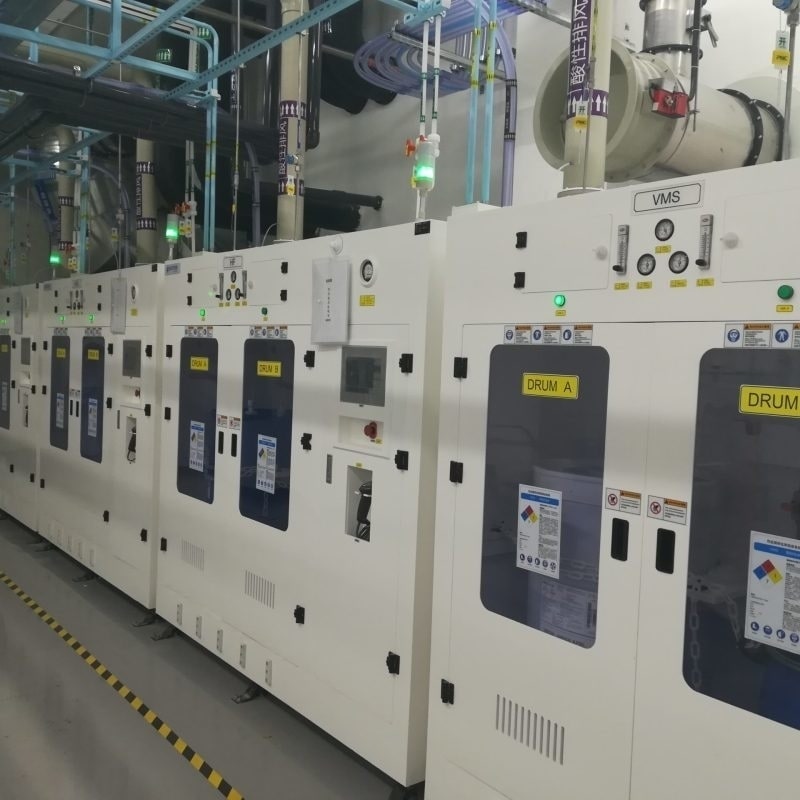

1. Gas Cabinets
Gas cabinets function as the first containment and control point for hazardous, toxic, pyrophoric, corrosive, or inert gases.

In semiconductor fabs, gas cabinets typically incorporate:

Stainless steel enclosure construction
Automatic shutoff valves
High-purity regulators
Mass flow devices
Pressure transducers
Toxic gas detectors
Exhaust ventilation interfaces
Emergency shutdown systems
Most advanced gas cabinets are built using electropolished 316L stainless steel with ultra-clean internal surfaces.

For hazardous gas applications, double-contained cabinet designs are commonly implemented to enhance operational safety.

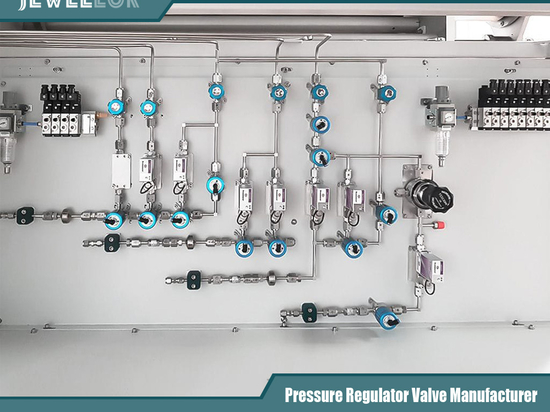

2. Valve Manifold Boxes (VMBs)
Valve manifold boxes distribute gases from central supply lines toward process tools inside the cleanroom.

Key VMB functions include:

Gas routing
Isolation control
Pressure adjustment
Flow balancing
Maintenance isolation
Modern semiconductor fabs often deploy automated VMB systems equipped with pneumatic actuators and remote communication capabilities.

These systems support flexible tool connections and simplify future production line expansion.

3. High Purity Distribution Piping
Distribution pipelines form the backbone of semiconductor gas delivery architecture.

Material selection is critical for contamination control.

Typical piping specifications include:

316L VIM-VAR stainless steel
Electropolished inner surface
Surface roughness ≤ 10 Ra microinch
Orbital welded joints
Dead-leg minimized layout
Orbital welding technology is widely used to ensure repeatable, contamination-free weld quality.

Poor welding practices can introduce:

Oxide generation
Particle contamination
Moisture retention zones
Gas turbulence
Therefore, welding qualification and boroscope inspection are essential during system installation.

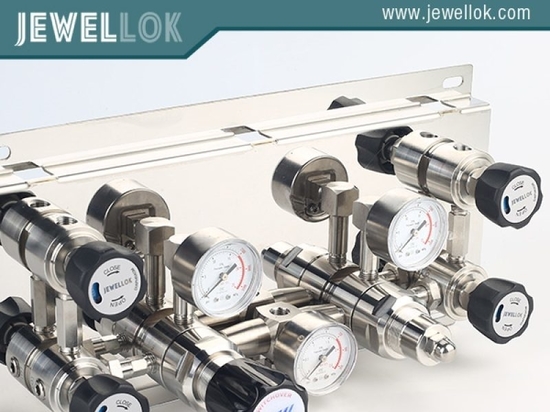

4. Automatic Gas Changeover Systems
Continuous semiconductor production demands uninterrupted gas availability.

Automatic gas changeover systems provide seamless cylinder switching without process interruption.

These systems typically include:

Dual-cylinder manifolds
Pressure sensing modules
Auto-switch regulators
Redundancy architecture
Alarm notification functions
Automatic changeover design minimizes downtime and improves operational efficiency in 24/7 semiconductor manufacturing environments.

5. Monitoring and Automation Controls
Advanced UHP gas delivery systems increasingly rely on intelligent automation platforms.

Common control technologies include:

PLC control systems
SCADA integration
HMI interfaces
Remote diagnostics
Data logging
Predictive maintenance analytics
Operators can monitor:

Pressure conditions
Flow rates
Gas concentration alarms
Valve status
System faults
Equipment utilization
Real-time monitoring enhances process visibility and strengthens cleanroom operational control.

Design Requirements for Semiconductor Cleanroom Applications
Designing a turnkey UHP gas delivery system for semiconductor facilities involves multiple engineering disciplines.

Several critical design considerations must be addressed.

Ultra-High Purity Standards
Semiconductor manufacturing requires extremely low contamination thresholds.

System design must minimize:

Moisture contamination
Oxygen ingress
Metallic ion contamination
Organic residue
Particle generation
Component cleaning procedures usually follow semiconductor-grade protocols including precision cleaning, cleanroom packaging, and high-purity assembly methods.

Leak Integrity Requirements
Gas leakage presents both safety and contamination risks.

Semiconductor UHP systems commonly require helium leak testing to achieve extremely low leakage thresholds.

Typical leak specifications may reach:

10⁻⁹ atm·cc/sec helium leak rate.

High leak integrity protects cleanroom environments while maintaining process gas purity.

Cleanroom Compatibility
All installed gas delivery equipment must comply with cleanroom environmental requirements.

Design strategies typically include:

Low particle emission materials
Smooth internal surfaces
Minimal dead volume design
Controlled installation procedures
Cleanroom-certified assembly practices
Proper cleanroom integration supports stable manufacturing performance.

Safety Compliance
Hazardous specialty gases introduce significant operational risks.

Turnkey systems must comply with industry safety codes and regulations.

Common reference standards include:

SEMI Standards
NFPA codes
International Fire Code (IFC)
FM Global guidelines
Local AHJ regulations
Safety design measures may involve:

Gas detection systems
Emergency purge systems
Excess flow shutoff devices
Fire suppression integration
Ventilation interlocks
Comprehensive safety engineering is fundamental for semiconductor facilities handling toxic or flammable gases.

Benefits of Turnkey UHP Gas Delivery Systems
Simplified Project Management
A single-source turnkey supplier streamlines project execution.

Instead of coordinating multiple vendors, semiconductor fabs work with one engineering partner responsible for:

Design
Procurement
Fabrication
Installation
Validation
This approach reduces communication complexity and project risk.

Faster Semiconductor Fab Deployment
Time-to-production is critical in semiconductor investments.

Turnkey execution accelerates project schedules through:

Standardized engineering workflows
Integrated manufacturing
Coordinated commissioning
Reduced interface conflicts
Faster installation enables earlier process qualification and production startup.

Improved Reliability and Consistency
Integrated system design improves overall reliability.

Turnkey providers optimize compatibility between:

Regulators
Valves
Pipelines
Sensors
Automation systems
This results in stable gas delivery performance and reduced maintenance challenges.

Enhanced Safety and Regulatory Compliance
Safety engineering is embedded throughout turnkey project delivery.

Professional suppliers conduct:

Hazard analysis
Design review
Functional testing
Compliance verification
Documentation management
This strengthens regulatory readiness and operational confidence.

Emerging Trends in Semiconductor Gas Delivery Technology
The semiconductor industry is rapidly evolving toward higher automation, greater sustainability, and increasingly complex process chemistry.

Several emerging trends are influencing UHP gas delivery system development.

Smart Digital Gas Infrastructure
Industrial digitalization is reshaping semiconductor utilities.

Next-generation systems feature:

Industrial IoT connectivity
Cloud-based monitoring
AI predictive maintenance
Remote diagnostics
Automated reporting
Data-driven operations improve maintenance planning and reduce unplanned downtime.

Modular Gas Delivery Design
Modular engineering approaches are gaining popularity.

Pre-engineered skid systems allow:

Faster deployment
Factory acceptance testing
Reduced field installation labor
Improved quality consistency
Modularization supports rapid semiconductor fab expansion projects.

Sustainability and Resource Optimization
Environmental considerations are becoming increasingly important.

Gas delivery systems are adopting technologies that support:

Reduced gas consumption
Improved purge efficiency
Energy optimization
Leak reduction strategies
Emissions management
Sustainable utility infrastructure contributes to long-term operational efficiency.

Selecting the Right Turnkey UHP Gas Delivery Partner
Choosing the right engineering partner is critical for semiconductor project success.

Evaluation criteria should include:

Semiconductor Industry Experience
Suppliers should demonstrate proven experience in:

Wafer fabrication facilities
Advanced packaging plants
Display manufacturing
Photovoltaic production
Specialty gas engineering
Industry-specific expertise significantly reduces implementation risk.

Engineering and Fabrication Capabilities
Strong turnkey providers should offer:

In-house engineering teams
Cleanroom fabrication capability
Orbital welding expertise
Factory testing resources
Documentation support
Comprehensive capabilities improve project execution quality.

Quality Assurance Systems
Reliable suppliers maintain robust quality programs covering:

Material traceability
Welding qualification
Cleaning validation
Inspection procedures
Final acceptance testing
Quality assurance is essential for semiconductor-grade system delivery.

best top 10 ultra high purity gas pressure regulator in india
best top 10 ultra high purity gas pressure regulator in india
Conclusion
Semiconductor manufacturing depends on highly controlled utility infrastructure, and ultra-high purity gas delivery systems are among the most critical enabling technologies inside cleanroom environments.

A turnkey UHP gas delivery system delivers far more than hardware. It provides an integrated engineering solution encompassing design, purity control, automation, safety, installation, and long-term operational reliability.

As semiconductor fabrication processes become increasingly sophisticated, demand for intelligent, contamination-free, and fully integrated gas delivery platforms will continue to grow.

For semiconductor cleanroom facilities seeking operational excellence, selecting a technically capable turnkey UHP gas delivery partner is not simply a procurement decision — it is a strategic investment in manufacturing performance, process integrity, and future scalability.
