In advanced semiconductor manufacturing, gas delivery accuracy, safety, and purity control are critical factors that directly influence wafer quality, process stability, and production efficiency. As semiconductor processes continue to move toward smaller nodes and more complex structures, conventional manual gas handling methods can no longer meet the strict requirements of modern fabrication facilities. Semiconductor fabs require highly reliable gas management solutions capable of delivering specialty gases with ultra-high purity, precise pressure regulation, and continuous monitoring.

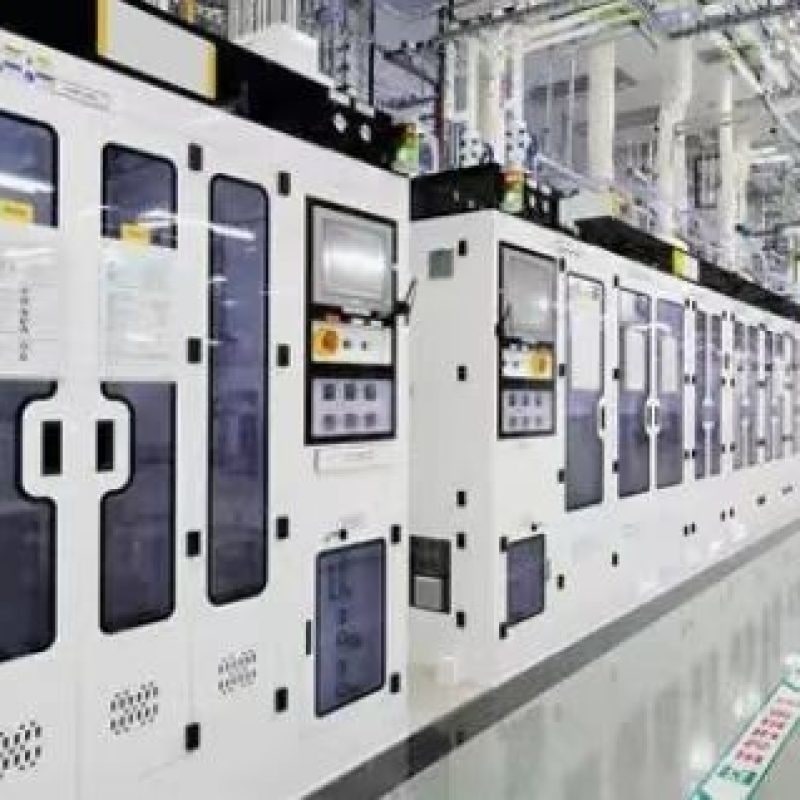

A GC Fully Automatic Gas Transport Cabinet is an advanced gas handling system designed for the safe transportation, distribution, and control of high-purity process gases used in semiconductor manufacturing. Integrated with automatic switching functions, PLC control, advanced sensors, and high-purity components, this system provides a complete solution for semiconductor gas delivery applications such as chemical vapor deposition (CVD), atomic layer deposition (ALD), etching, ion implantation, and other critical processes.

This article explains the structure, working principles, advantages, applications, and key considerations when selecting a fully automatic gas transport cabinet for ultra-high purity semiconductor gas delivery systems.

Fluid Chemical Delivery Module And Chemical Delivery System
Fluid Chemical Delivery Module And Chemical Delivery System
What Is a GC Fully Automatic Gas Transport Cabinet?
A GC Fully Automatic Gas Transport Cabinet is an intelligent gas management system designed to transport specialty gases from gas cylinders or bulk gas sources to semiconductor processing equipment under highly controlled conditions.

The cabinet integrates multiple functions, including:

High-purity gas distribution
Automatic gas source switching
Pressure regulation
Gas flow control
Leak detection
Safety interlocking
Remote monitoring
Automated operation management
Unlike traditional manual gas cabinets, fully automatic gas transport cabinets minimize human intervention and improve system reliability through automated control technology.

In semiconductor manufacturing environments, gases such as silane (SiH₄), ammonia (NH₃), nitrogen trifluoride (NF₃), hydrogen chloride (HCl), tungsten hexafluoride (WF₆), and other specialty gases require extremely precise handling because even trace contamination can negatively affect semiconductor device performance.

The GC automatic gas transport cabinet ensures that these gases are delivered safely and consistently while maintaining ultra-high purity standards.

Importance of Ultra High Purity Gas Delivery in Semiconductor Manufacturing
Semiconductor fabrication processes require gases with extremely low contamination levels. Any moisture, particles, oxygen, or metallic impurities introduced into the process gas stream can cause defects, reduce yield rates, and damage expensive production equipment.

Ultra-high purity gas delivery systems must control several critical parameters:

1. Gas Purity Control
The internal components of the gas cabinet must prevent contamination from entering the gas stream. Materials such as electropolished 316L stainless steel are widely used because they provide excellent corrosion resistance and low particle generation.

High-quality gas delivery systems typically feature:

Low surface roughness tubing
Orbital welded stainless steel piping
High-performance diaphragm valves
Metal gasket sealing systems
Ultra-low leakage connections
These features help maintain semiconductor-grade gas purity.

2. Pressure Stability
Many semiconductor processes operate under strict pressure requirements. Fluctuations in gas pressure can affect deposition thickness, etching uniformity, and process repeatability.

Fully automatic gas transport cabinets use precision pressure regulators and sensors to maintain stable output pressure and ensure consistent process conditions.

3. Safety Management
Many semiconductor gases are toxic, corrosive, flammable, or reactive. A gas transport cabinet provides a controlled environment where gas handling operations can be monitored and managed safely.

Safety functions may include:

Gas leak detection
Emergency shut-off valves
Automatic ventilation control
Pressure abnormality alarms
Safety interlock systems
Main Components of a Fully Automatic Gas Transport Cabinet
A GC Fully Automatic Gas Transport Cabinet consists of several critical modules that work together to provide reliable gas delivery.

1. Gas Supply Module
The gas supply module connects the gas source to the cabinet system. Depending on the application, the gas source can include:

High-pressure cylinders
Cylinder bundles
Bulk gas supply systems
Gas purification units
The supply module is designed with high-purity tubing and valves to prevent contamination during gas transportation.

2. Automatic Switching System
One of the most important features of a fully automatic gas transport cabinet is automatic gas source switching.

Traditional systems require operators to manually replace empty cylinders. This creates risks including:

Production interruption
Human operation errors
Potential gas exposure
Pressure instability
Automatic switching systems continuously monitor gas pressure and automatically switch from an empty cylinder to a full cylinder when necessary.

Benefits include:

Continuous production operation
Reduced operator workload
Improved safety
Higher equipment availability
3. Pressure Control System
The pressure control section regulates incoming high-pressure gas into a stable output pressure suitable for semiconductor equipment.

Typical components include:

High purity pressure regulators
Pressure transmitters
Relief valves
Pneumatic valves
Control sensors
Advanced systems can achieve precise pressure management through closed-loop control technology.

4. Gas Flow Monitoring System
Accurate gas flow control is essential for semiconductor process consistency.

The cabinet may integrate:

Mass flow controllers (MFCs)
Flow sensors
Digital pressure monitoring
Automated feedback systems
Real-time monitoring allows operators to detect abnormal conditions before they affect production.

5. PLC Control System
The intelligent control system is the core of a fully automatic gas transport cabinet.

A PLC-based control platform enables:

Automatic operation
Data logging
Alarm management
Remote communication
Equipment status monitoring
Modern semiconductor fabs often connect gas cabinets to factory automation systems through communication protocols such as:

Ethernet/IP
RS485
SECS/GEM
This enables centralized monitoring and improved production management.

Working Principle of GC Fully Automatic Gas Transport Cabinet
The operation process of a fully automatic gas transport cabinet generally includes several stages.

Step 1: Gas Source Connection
High-pressure semiconductor gas cylinders are connected to the cabinet through ultra-high purity fittings and pipelines.

Before operation, the system performs safety checks to confirm:

Proper connection
Correct valve status
No leakage condition
Step 2: Gas Purging Process
Before introducing process gas, the system performs purge operations using inert gases such as nitrogen.

The purge process removes:

Air
Moisture
Residual contaminants
This step ensures that the gas delivery path meets semiconductor purity requirements.

Step 3: Pressure Reduction and Regulation
The incoming high-pressure gas passes through pressure control components where it is reduced to the required operating pressure.

Sensors continuously monitor:

Input pressure
Output pressure
System status
The control system automatically adjusts operating parameters.

Step 4: Automatic Gas Delivery
After pressure stabilization, the gas is delivered to semiconductor process equipment.

The PLC system continuously monitors:

Gas pressure
Flow conditions
Valve operation
Safety signals
If abnormal conditions occur, the system can automatically shut down or activate safety procedures.

Advantages of Fully Automatic Gas Transport Cabinets
1. Improved Process Reliability
Automatic control reduces human errors and provides stable gas delivery conditions.

This improves:

Wafer production consistency
Process repeatability
Equipment uptime
2. Enhanced Safety Performance
Semiconductor gases can present significant safety risks. Automated cabinets provide multiple layers of protection through:

Leak detection
Automatic isolation
Alarm systems
Remote monitoring
Operators can manage gas systems without frequent direct exposure.

3. Reduced Operating Costs
Although automatic gas cabinets require higher initial investment, they reduce long-term operating costs by:

Reducing manual labor
Minimizing production downtime
Improving gas utilization efficiency
Reducing maintenance requirements
4. Better Compatibility with Smart Factories
Modern semiconductor manufacturing is moving toward Industry 4.0 automation.

Fully automatic gas transport cabinets support:

Digital monitoring
Factory automation integration
Predictive maintenance
Remote diagnostics
This makes them ideal for advanced semiconductor production environments.

Applications of GC Fully Automatic Gas Transport Cabinets
Fully automatic gas transport cabinets are widely used in semiconductor and advanced manufacturing industries.

Semiconductor Fabrication
Applications include:

Wafer fabrication
Thin film deposition
Plasma etching
Semiconductor cleaning processes
Display Manufacturing
Large-scale display production requires precise gas delivery for:

OLED manufacturing
TFT processes
Thin film coating
Solar Cell Manufacturing
Gas transport systems support processes such as:

Silicon deposition
Plasma treatment
Surface modification
Research Laboratories
Universities and R&D centers use compact automatic gas cabinets for:

Material research
Semiconductor development
Advanced process testing
How to Select the Right Fully Automatic Gas Transport Cabinet
When choosing a gas transport cabinet, manufacturers should consider several factors.

Gas Compatibility
Different gases require different material selections and safety configurations.

Important considerations include:

Corrosiveness
Toxicity
Reactivity
Pressure requirements
Purity Requirements
For semiconductor applications, choose systems with:

UHP 316L stainless steel components
Electropolished surfaces
High-quality diaphragm valves
Low leakage connections
Automation Level
Depending on production requirements, users may select:

Semi-automatic systems
Fully automatic systems
Customized intelligent gas delivery platforms
Safety Standards
A reliable gas transport cabinet should comply with relevant semiconductor industry standards and include:

Gas monitoring
Emergency shutdown functions
Safety interlocks
Proper ventilation design
Future Development Trends of Semiconductor Gas Transport Systems
As semiconductor technology continues advancing, gas delivery systems are becoming more intelligent and automated.

Future trends include:

Higher Integration
Gas cabinets will integrate more functions, including:

Gas purification
Real-time analytics
AI-based monitoring
Predictive maintenance
Improved Digital Control
Advanced communication systems will allow fabs to achieve:

Fully automated gas management
Real-time production optimization
Remote equipment management
Higher Purity Requirements
As semiconductor nodes become smaller, gas delivery systems will require:

Better contamination control
More precise pressure regulation
Higher-performance materials

Conclusion
A GC Fully Automatic Gas Transport Cabinet for Ultra High Purity Semiconductor Gas Delivery is an essential component in modern semiconductor manufacturing facilities. By combining advanced automation technology, high-purity materials, precise pressure control, and comprehensive safety systems, it provides reliable and efficient gas management for critical semiconductor processes.

Compared with traditional manual gas handling systems, fully automatic gas transport cabinets offer significant advantages in safety, productivity, process stability, and operational efficiency. For semiconductor fabs, research facilities, and advanced manufacturing industries, investing in a high-performance automatic gas delivery solution is a key step toward achieving higher production quality and smarter manufacturing operations

As semiconductor processes continue to evolve, ultra-high purity automatic gas transport cabinets will play an increasingly important role in supporting next-generation semiconductor fabrication technologies.
