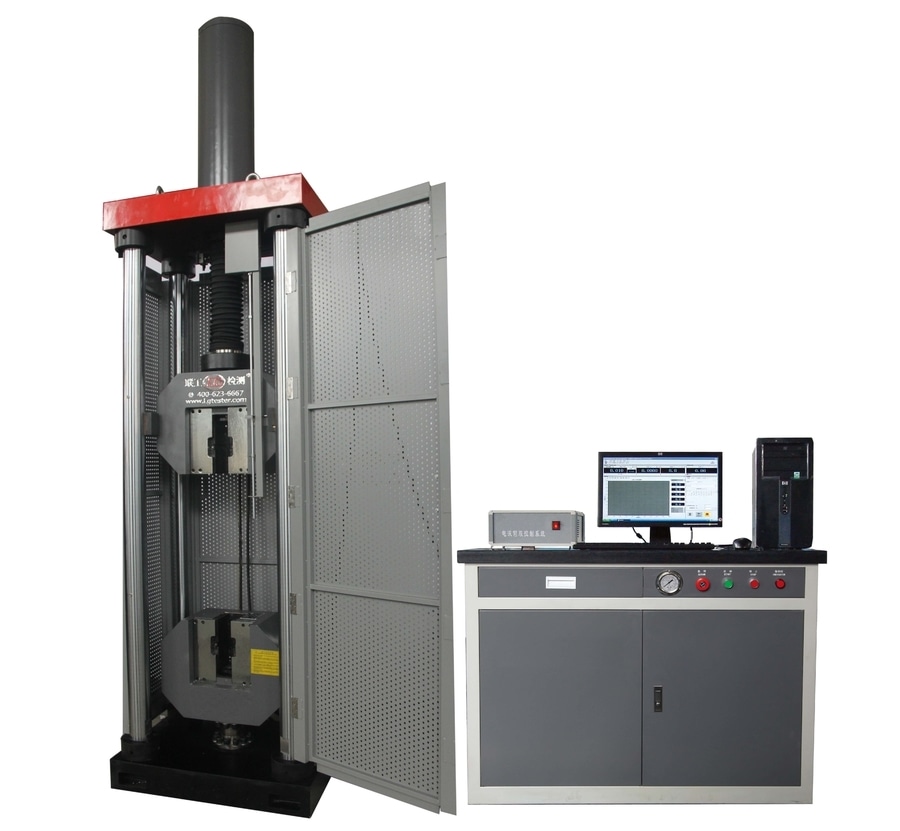

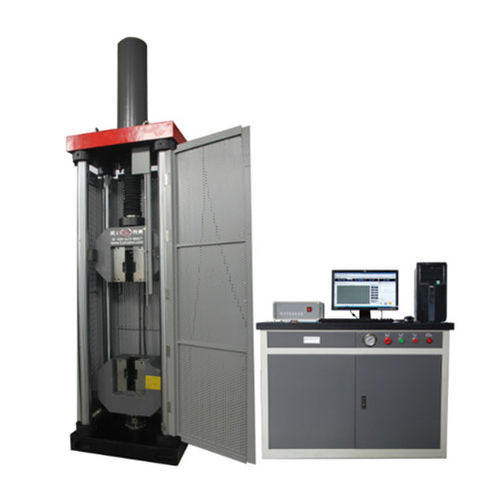

WAW-2000E Computer Control Single Space Electro-Hydraulic Servo Universal Testing Machine

Universal Testing Machine

Scope of product use
Test type: tensile test of rebar, round steel, steel strand, plate, bolt, etc.;
Application areas: Construction industry, building materials industry, metallurgical industry, transportation industry, energy resources industry, scientific research units, universities, quality inspection centers, commodity inspection departments.
This test machine is an ideal test equipment in the above fields.

Main technical parameters and performance indicators
Maximum load: 1500kN
Equipment accuracy: 0.5 class
Structural form: single-rod double-acting cylinder with four-column structure on top
Control mode: Microcomputer control electro-hydraulic servo
Test type: normal temperature tensile, etc.
Overload protection: 110% overload protection (no deformation, no mechanical damage)
Machine noise: no more than 65dB
Load indication accuracy: better than ±0.5% of indication
Load resolution: 500,000 yards, and the full resolution remains unchanged
Force value force measurement range: 1% ~ 100% F · S (the whole process is not divided into grades)
Force control rate adjustment range: 0.05-5%FS/s
Relative error of force control rate: within ±1% of the set value
Accuracy of displacement indication: better than ±0.5% of indication
Displacement display resolution: 0.01mm
Deformation display resolution: 0.001mm
Deformation measurement accuracy: better than ±0.5% of the indicated value
Deformation rate adjustment range: 0.02-5%FS/s
Test speed: 0.1~80 mm/min
Relative error of test speed: set speed ≤1mm/min, set value within ±1.0%;
Set speed > 1mm/min, set value within ±0.5%;
Data collection frequency: 1000Hz
Piston stroke: 600 mm (can be customized according to user)
Maximum tensile space: 1100 mm (can be configured on request)
Clamping method: hydraulic wedge clamping
Clamping force: ≥1500kN
Power supply: 380V three-phase five-wire system 50Hz
Dimensions of the main unit (length × width × height): (1022 × 830 × 3600) mm
Oil source control box size: (1120×600×849)mm
