JB-300 Manual Charpy Impact Testing Machine

Impact Testing Machine

I.Model and name

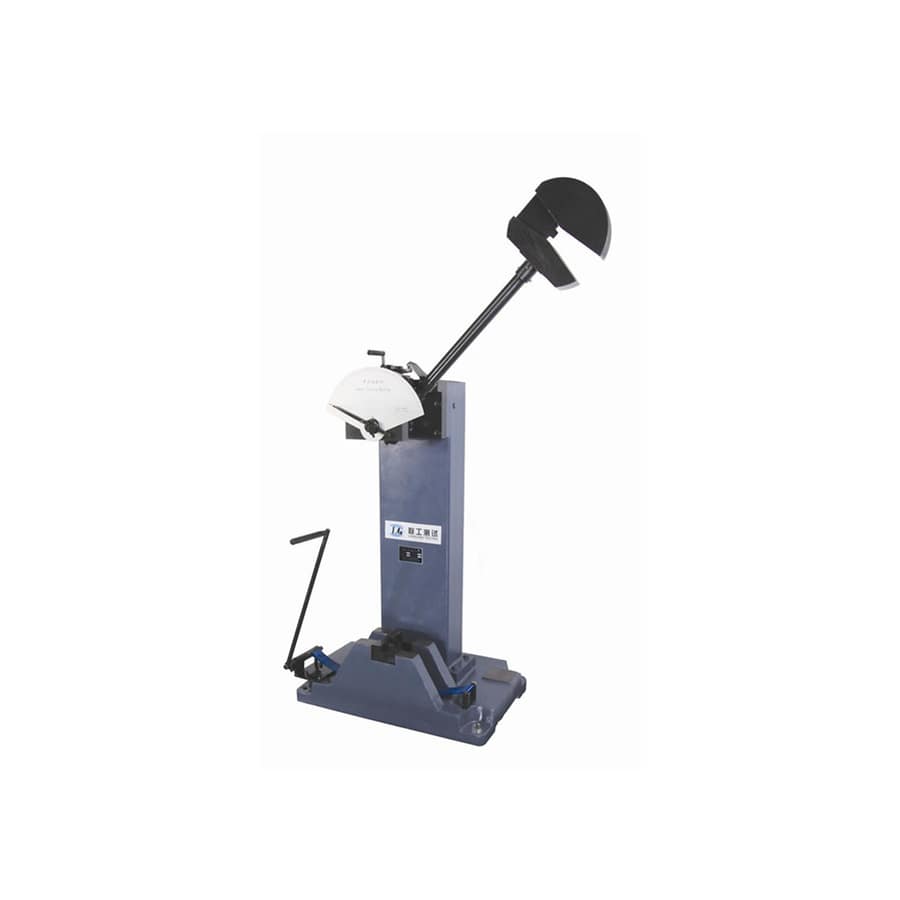

JB-300 Manual Charpy Impact Testing Machine

II.Equipment application
This equipment is used to measure the resistance of metal materials to impact under dynamic load in order to judge the properties of the material under dynamic load. Using the difference between the potential energy before the impact of the pendulum and the remaining potential energy after the impact is displayed on the dial, to obtain the absorption work of the sample. The maximum impact energy is 300J, and the cross section of the sample used is (10×10) mm.
The operation is manual type, easy to operate, high working efficiency.

III.Applicable standards (please consult us about other applicable standards)
1．GB/T 3808-2018 Verification of pendulum-type impact testing machines
2．GB/T 229-2007 Metallic materials-Charpy pendulum impact test method
3．JJG 145-2007 Pendulum Impact Testing Machines

IV.Technical Parameters
Manual Charpy Impact Testing Machine
Machine model JB-300
Impact energy 300J 150J
Dial scale range and indexing value Energy range 0-300J 0-150J
Indexing value for each cell 2J 1J
Pendulum torque M=160.7695N·m M=80.3848N·m
Pendulum preparing angle 135°
Pendulum shaft center of rotation to the impact point distance (sample center) 800mm
Impact speed 5.0m/s
Specimen support span 40mm
Round corner of support jaw R (1.0~1.5)mm (1mm is special ordered.)
Blade curvature radius R (2.0~2.5)mm (8mm is special ordered.)
Specimen holder support surface angle 11°
Impact blade angle 30°
Impact blade thickness 16mm
Specimen dimension 10×10×55 mm
(Thickness 7.5mm, 5mm is special ordered)
Machine outline dimension (Length×Width×Height) 700×510×1350mm
Machine host weight 320kg
