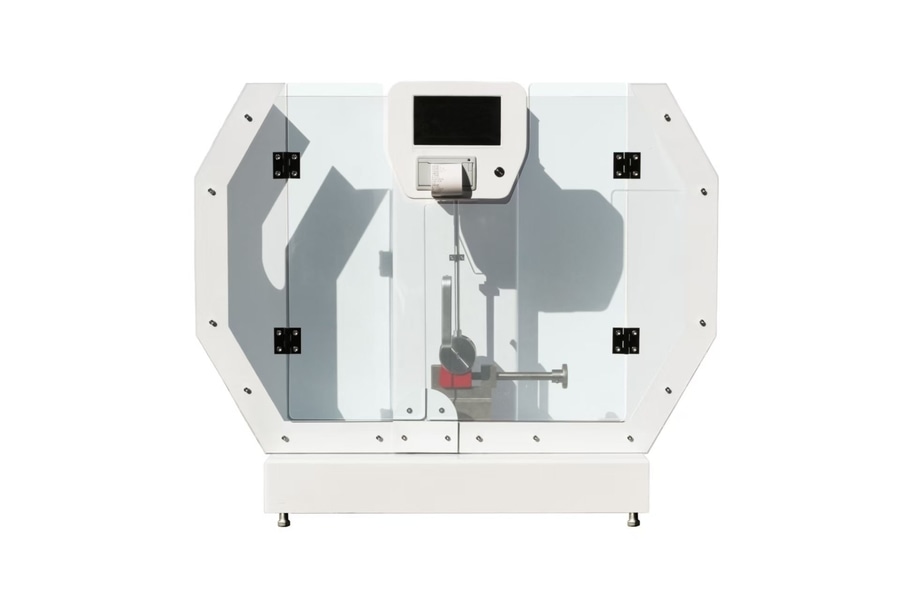

XJU-22D Digital Display Izod Impact Testing Machine

Izod Impact Testing Machine

Summary
It is mainly used for the determination of the impact toughness of hard plastics, reinforced nylon, FRP, ceramics, cast stone, electrical insulation materials and other non-metallic materials. Chemical industry, scientific research institutions, colleges and universities, quality testing departments, professional manufacturers, laboratories and other units of the ideal test equipment.

Machine features:
The product uses the color touch screen display, the operation is simple and clear, the single board machine control, stable and reliable, has the function of automatic energy loss correction, the test results are calculated automatically, and the test results can be printed through the micro printer. The host machine can connect to the PC machine to export, edit and print, but also can connect to the gap depth tester, through the gap depth tester to accurately transmit the shape and size of the sample to the host machine, for data preservation, improve the accuracy of the experimental results.

Test standard
GB/T 1843-2008 Plastic-Determination of Izod impact strength
ISO 180-2020 Plastic-Determination of Izod impact strength
GB/T 2611-2022 General requirements for testing machines

Technical parameters:
Impact energy 11J, 22J
Impact speed 3.5m/s
Pendulum angle 1500
Distance from the impact blade to the top of the jaw 22mm±0.2mm
Strike center distance 335mm
Radical radius of the impact blade R=0.8mm±0.2mm
Energy lost 11J ≤0.05J , 22J ≤0.10J
Min. resolution 0.001J
Machine size (L*W*H) 700*350*800mm
Space need Front and back 0.4m, left and right 1.5m, upper 1.5m
Power supply Single phase, 220V, 50Hz
