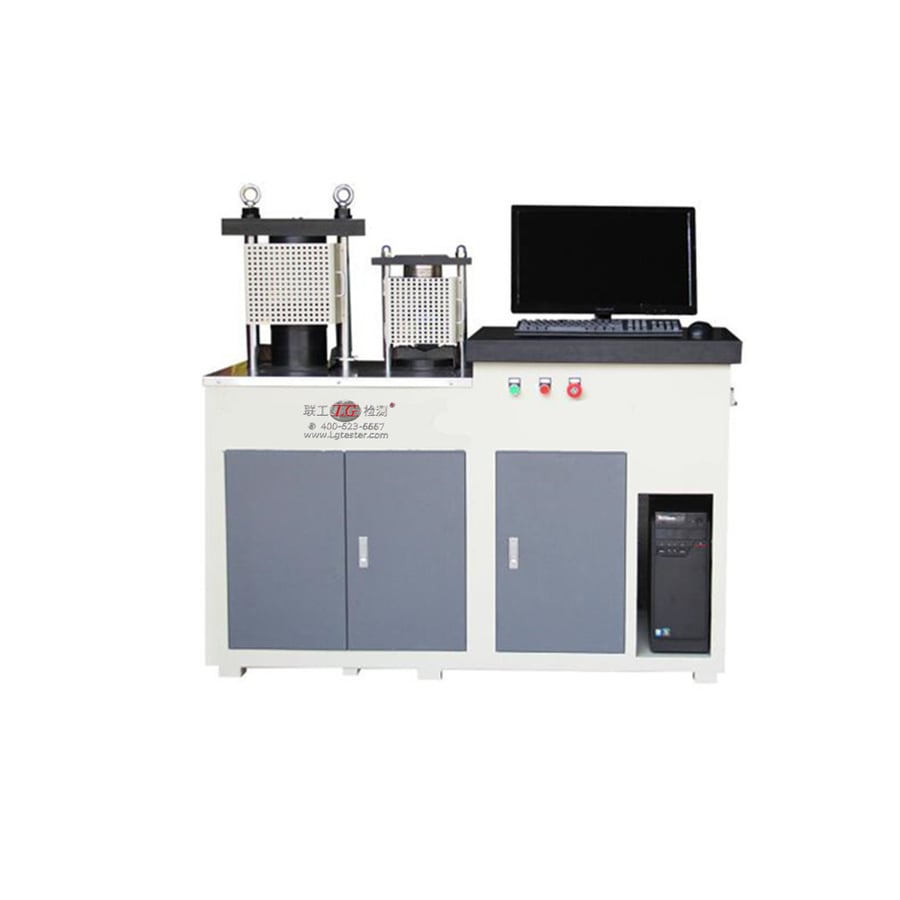

YAW-300C Automatic Compression-Flexural Testing Machine

Compression-Flexural Testing Machine

1.Product description
The measurement and control system adopts high-precision digital servo valve, which has the function of force closed-loop control, which can realize equal load rate loading or equal stress rate loading. High control precision and good reliability, fully meet the requirements of GB/T 17671 "Test method for cement mortar strength (ISO method)",Using microcomputer to realize electronic measurement, automatic completion of compressive strength test, automatic calculation and printing of reports, it is widely used in construction industry and cement production enterprises.
GB/T17671-2021 Test Method of Cement Mortar Strength (ISO Method)
JJG139-2014 Tension, Compression and Universal Testing Machine
GB/T3722 Hydraulic compression testing machine
GB/T2611-2007 General requirements for testing machines
JC/T 724-2005 Electrically driven flexure testing device for strength of cement mortar
JC/T960-2022 Automatic compression machine for testing cement strength

2.Technical Parameter
Item Compression Flexural
Max.Test Force 300kN 10kN
Test Force Measurement Range 3kN-300kN 0.1kN-10kN
Test Force indication relative error <±0.5% of the indicated value <±0.5% of the indicated value
Force value collection frequency 50HZ
Upper and Lower Compression Plate Space 190mm 180mm
Piston Stroke 80mm 60mm
Column diameter φ50mm (two columns) Φ30mm (two columns)
Column space 210mm 180mm
Compression Plate size φ155mm φ155mm
Motor Power 0.75KW
Dimensions 1420*475*1350mm
Weight 450kg
