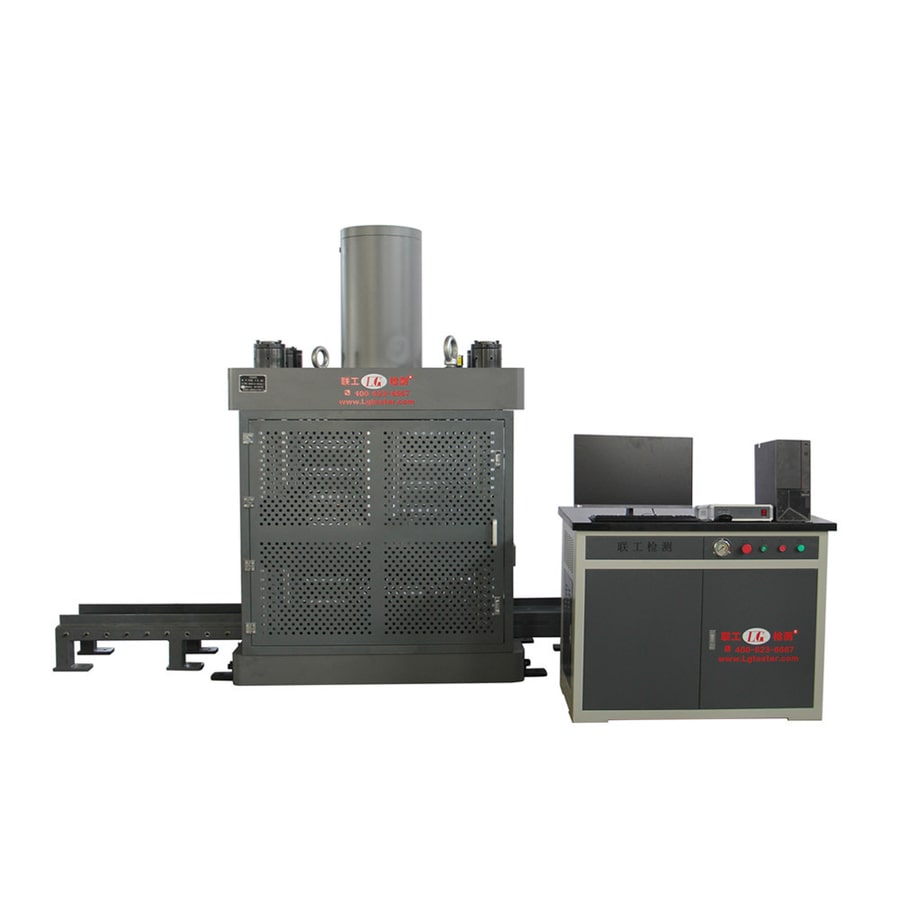

GYB-2000 Steel pipe compression test machine
compression test machine
1.Usage
GYB-2000 computer controlled electro-hydraulic servo steel pipe compression testing machine is specially used for the compressive strength test of steel pipe flattening test. Fully meet the ISO 8492:2013
Metallic materials -- Tube -- Flattening test.
2.Main Technical Parameter
Max. Test Force 2000kN
Indication accuracy ±1%
Test Force Resolution 0.01kN
Hydraulic Pump Pressure Pressure Rated 25MPa
Upper and Lower Pressure Plate Size 800*800mm
Max.distance between upper and lower pressure plate 700mm
Piston Stroke 700mm
Motor Power 4Kw
Weight 8500Kg
Size 2320*2320*2500mm
3. Characteristics
The test machine adopts special software and high-precision electro-hydraulic servo valve control to drive the precision hydraulic cylinder, and automatically control various modes of test force and displacement deformation, to complete the compression test of various materials and specifications.
