400+ Aluminum Extrusion Enclosures | MOQ 1PC

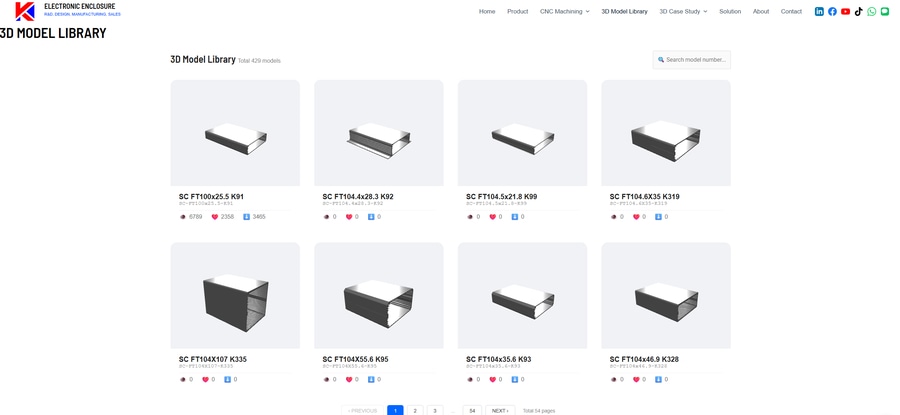

Over 400+ standard aluminum enclosures | Supports online 3D interactive preview and STEP format 3D drawing download application.
Extruded Aluminum Enclosure
Parameter Specification Parameter Specification
Product Type Aluminum Extrusion Enclosure Tooling / Mold Fee No tooling charge (standard profiles / existing molds)
Material AL6063-T5 Manufacturing Process Aluminum Extrusion + CNC Machining
Surface Finish Sandblasting | Anodizing | Chemically Conductive Oxidation MOQ (Minimum Order Quantity) 1 PC
Ingress Protection Rating Available upon request up to IP65 (finished assembly only) LOGO Customizable
Thermal Conductivity (at 25°C) 201 W/(m·K) Packaging Customizable
Chemically Conductive Oxidation MIL-DTL-5541 (contact resistance < 0.6 mΩ) Drawing Formats Accepted STEP | IGS | CAD | DXF
Colors Available Black | Silver | Blue | Gold | Gray | Custom Quality Control ISO 9001
Product Features：
Standard tooling – no extra mold cost. This profile uses our existing standard extrusion tooling, so you pay no mold/die fees. MOQ: 1 piece.
Material: AL6063-T5. This aluminum alloy meets international standards and is fully RoHS compliant.
Unlimited length. The enclosure can be cut to any custom length you require – no restrictions.
Standard end caps included. Each enclosure comes with 1.5mm or 2.0mm flat aluminum end caps (your choice).
Custom end cap designs are also available.
Custom mounting holes. We can machine any hole pattern or cutout shape you need – just send us your drawing.
Precision CNC machining. All mounting holes and cutouts are CNC-machined with a minimum tolerance of ±0.01mm.
Surface finish: sandblasted + anodized. We apply #150–#180 grit sandblasting followed by anodizing for a smooth, durable, and corrosion-resistant finish.
Custom colors available. Standard colors are black and silver, but we can match your specific color requirements for bulk orders.
Chromate conversion coating (chemical conductive oxidation). We offer this finish per MIL-DTL-5541 standards for EMI/RFI shielding requirements – ideal for applications where electrical conductivity and corrosion protection are critical.
Custom branding. We can apply your logo using laser engraving, UV color printing, or silk screening – whichever suits your needs.
Packaging & assembly services. We can design custom carton packaging for your product, or provide full assembly services if you need turnkey solutions.
This 3D drawing matches our physical housing with interchangeable brackets — check the full specs of our interchangeable aluminum instrument enclosure.
Frequently Asked Questions About Extruded Aluminum Enclosure Customization
Q1：What is an Extruded Aluminum Enclosure, and why is it widely adopted as a standard PCB Enclosure and Electronic Housing?
An Extruded Aluminum Enclosure is a modular, lightweight, thermally conductive housing structure crafted from standard aluminum alloy profiles. It serves as the preferred electronic enclosure for industrial electronics, instrumentation devices, and embedded PCB Enclosure systems, thanks to its flexible structure and superior heat dissipation.
As an experienced custom aluminum enclosure manufacturer, we deliver professional aluminum profile housing customization and full aluminum enclosure custom processing for prototype and mass-production projects. The biggest advantage of this extrusion-based design is its modular compatibility. Internal brackets, mounting rails, and end caps feature universal-fit specifications, allowing different PCB layouts and electronic components to share one identical outer shell. This drastically cuts development costs and shortens lead time for instrumentation aluminum enclosure and electronic component aluminum box projects. Best of all, we can convert your custom 3D model into any of these standard housing variants with minimal tooling adjustments.
Q2：Can your CNC machining team realize custom cutouts, ports, and irregular shapes based on my 3D model?
Yes. Our professional CNC Machining Aluminum and full-range CNC Machining Services support high-precision custom machining for all types of electronic housings and industrial enclosures. We strictly follow your STEP/IGS 3D model data to mill USB-C ports, display windows, ventilation slots, and irregular positioning holes, guaranteeing machining accuracy within ±0.01mm.
We adopt swappable structural architecture for front and rear interface panels, allowing engineers to reconfigure port layouts freely without replacing the main enclosure body. To illustrate the real-world benefit: if your product line includes both Wi-Fi and 4G device versions, you only need to swap the rear I/O plate — the core extruded aluminum enclosure remains unchanged. This eliminates extra mold fees and redundant inventory SKUs, which greatly optimizes costs for equipment aluminum enclosure customization. Every modified shell can be tailored into a dedicated PCB aluminum profile housing that perfectly matches your circuit layout.
Q3：What customization options are available for standard Extruded Aluminum Enclosure models?
Our full-service aluminum profile housing customization covers far more than simple length cutting. As a reliable custom aluminum enclosure manufacturer, we support personalized CNC cutouts for all aluminum extrusion enclosure series.
This highly flexible aluminum enclosure custom processing system adapts perfectly to your unique 3D model design, covering diverse application needs for commercial electronic equipment and precision instrument aluminum enclosure projects.
Q4：Is there any MOQ limit for customized aluminum enclosure orders?
We support an ultra-low MOQ of 1 piece for all PCB Enclosure and electronic enclosure customization projects. Owning a complete library of standard extrusion dies in-house, we help clients avoid expensive mold investment during prototype verification and small-batch testing.
Our internal rail systems adopt cross-compatible specifications, enabling different PCBs and functional modules to be swapped interchangeably within the same housing. Whether you need a single electronic component aluminum box for laboratory testing or bulk equipment aluminum enclosure procurement for mass production, our scalable CNC Machining Services accommodate all order sizes without compromising precision.
Q5：Can surface finishes and structural accessories be replaced and upgraded in the later stage?
Absolutely. All our standard waterproof aluminum enclosure and common electronic housing series follow unified industrial assembly standards. Surface treatments such as anodizing, sandblasting, and powder coating can be independently upgraded without altering the main shell structure.
Front panels, sealing gaskets, and mounting accessories can be swapped in the field without special tools. During product iteration and equipment upgrading, you can renew interface layouts and protection standards simply by replacing modular accessories. This flexible upgrade mode is one of the core advantages of our aluminum alloy shell custom processing, widely applied in iterative updates of PCB aluminum profile housing and precision instrumentation equipment.
Q6：What design files are acceptable for CNC custom processing?
We support mainstream engineering formats including STEP, IGS, DWG, and DXF. After receiving your 3D design file, our engineering team provides free DFM (Design for Manufacturing) optimization suggestions to refine your structure for better assembly stability and production efficiency.
During technical evaluation, we actively recommend compatible interchange layouts, adjusting mounting holes and internal structures to accommodate multiple PCB specifications with one single modular extrusion shell. As a professional custom aluminum enclosure manufacturer, we always tailor every solution strictly according to your 3D model and actual application scenarios, ensuring our aluminum profile housing customization fully fits your electronic equipment installation standards.
Q7：Can Extruded Aluminum Enclosures achieve outdoor waterproof protection?
Yes. Our upgraded waterproof aluminum enclosure series reaches IP65 or higher waterproof and dustproof ratings, ideal for outdoor IoT monitoring devices, roadside electronics, and marine instrumentation systems. Precision CNC-machined sealing grooves and high-performance silicone gaskets effectively block rainwater, dust, and humid air.
Our extrusion main bodies share a common interface for easy exchange of different length specifications and waterproof accessories. You can select customized shell lengths based on your component capacity while reusing the same end caps and sealing kits. This stable, weather-resistant electronic housing solution delivers consistent protection for long-term outdoor industrial control and precision instrument projects built on standard extruded aluminum enclosure profiles.
Q8：Does this instrument aluminum enclosure support interchangeable internal brackets?
A：Our interchangeable aluminum instrument enclosure comes with fully detachable internal brackets, supporting flexible assembly for handheld detection equipment.
