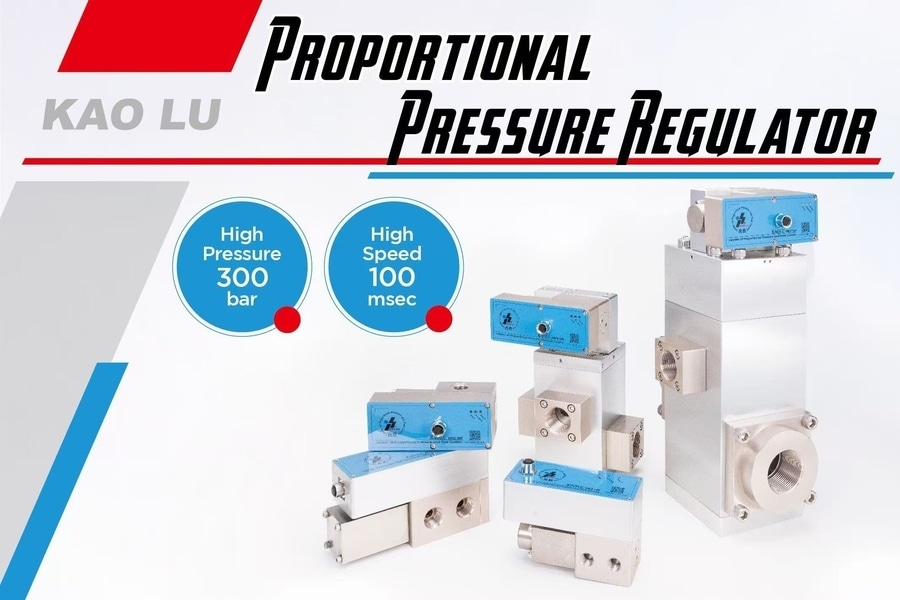

Proportional Pressure Regulator — Precision Electronic Pressure Control

Proportional Pressure Regulator | 0-100 bar, 0.005 psig

A proportional pressure regulator converts an electrical signal (0-10V, 4-20mA, or RS485 Modbus) into precisely controlled output pressure. KaoLu has been designing and manufacturing electro-pneumatic proportional valves in Taiwan for over 45 years — we were the first professional manufacturer in Taiwan to produce I/P and E/P electronic proportional valves.
Our regulators deliver resolution down to 0.005 psig, response as fast as 50 ms, and pressure ranges from vacuum to 100 bar — trusted in laser cutting, semiconductor manufacturing, leak testing, and medical devices across 40+ countries.
What Is a Proportional Pressure Regulator?
How It Works: Dual-Solenoid Closed-Loop Control
Our regulators use a complete closed-loop servo system:

Fill solenoid valve — opens to increase output pressure
Vent solenoid valve — opens to decrease output pressure
Internal pressure transducer — measures real output pressure continuously
Digital controller (PI closed-loop) — compares setpoint vs feedback and drives both valves
When both valves close, pressure is locked — stable, energy-efficient, and immune to downstream fluctuation.

Choose Your Pressure Range
Series Pressure Range Flow Resolution Best For
QKL Low Pressure 0-8 bar up to 6000 L/min 0.01% F.S. Laser cutting, microfluidics
QKL-B1S Medium 0-30 bar low flow 5 mV Static/dynamic control

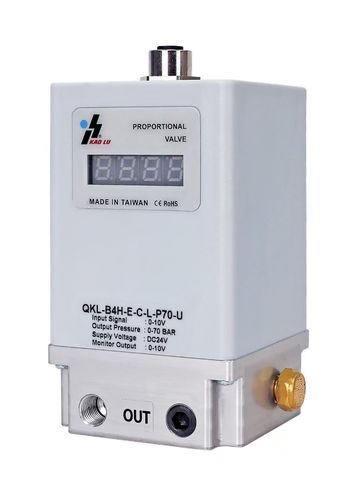

QKL-B4H High 0-70 bar 170 L/min 0.25% F.S. Foaming, burst testing
QKL 0-100 bar 0-100 bar 140 L/min 0.01% F.S. High-pressure processes
QKL-B3V Vacuum 0 ~ -101 kPa 250-600 L/min 0.5% F.S. Vacuum handling
UHR Series custom custom 0.005 psig Semiconductor

Applications
Laser Cutting — assist-gas pressure control, ±0.1% accuracy
Semiconductor — ultra-high resolution for wafer processing
Leak Testing — stable pressure for reliable test results
Medical Devices — ventilators, artificial heart, ISO 13485
PET Blow Molding — multi-stage pressure profiles
Gas Blending — precise mixing ratios

Why KaoLu
✅ 45 years of electro-pneumatic manufacturing — first in Taiwan
✅ 2025 German Design Award winner
✅ 0.005 psig ultra-high resolution (UHR series)
✅ 50 ms response time
✅ CE, SGS, RoHS certified | ISO 13485 quality system
✅ O2 / H2 / He compatible options
✅ Custom pressure ranges — consult factory
✅ Made in Taiwan

FAQ
Q1: What is the difference between a proportional pressure regulator and an electronic pressure regulator? They are the same product with different names. Other common names include electro-pneumatic regulator, E/P converter, I/P converter, and digital pressure regulator.

Q2: Can it control pressure up to 100 bar? Yes. Our QKL 0-100 bar series provides precision control up to 105 bar (1523 psi) with accuracy up to 0.01% F.S. Custom ranges above 100 bar are available on request.

Q3: What control signals are supported? 0-10V, 4-20mA, and RS485 Modbus RTU. Monitor/feedback signals available as 1-5V, 0-10V, or 4-20mA.

Q4: What is the response time? Our high-speed QKL-HS series achieves pressure switching as fast as 50 ms, suitable for dynamic processes like laser cutting and blow molding.

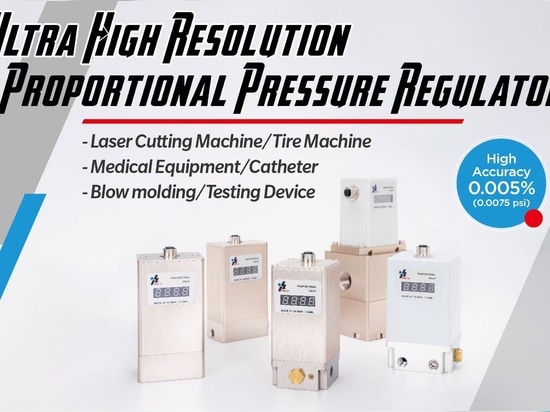

Q5: What resolution can I expect? Standard series reach 0.01% F.S. Our UHR (Ultra High Resolution) series reaches 0.005 psig — designed for semiconductor and precision applications.

Q6: Is it compatible with oxygen or hydrogen? Yes, the QKL-HS series offers O2, H2, and He compatible versions for demanding environments.

Q7: Does it require clean air? Yes. Use dry, clean air filtered to < 5 μm. The regulator is not resistant to dirt particles.

Q8: Can the pressure range be customized? Yes, custom pressure ranges are available — consult factory for customization.
