Our latest innovation: MALiS
MALiS - Multi Adaptive Lifting System

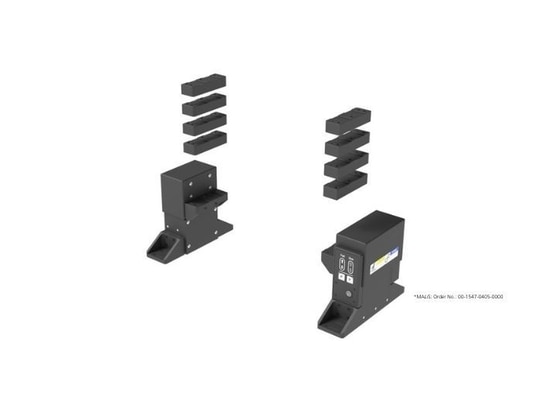

MALiS - High-precision synchronous process in Z
MALiS is your high-precision Z-positioning solution for coarse adjustment with repositioning and parallelism in the micron range. The system is used in life science, 3D printing, materials testing, photonics, and research and development.

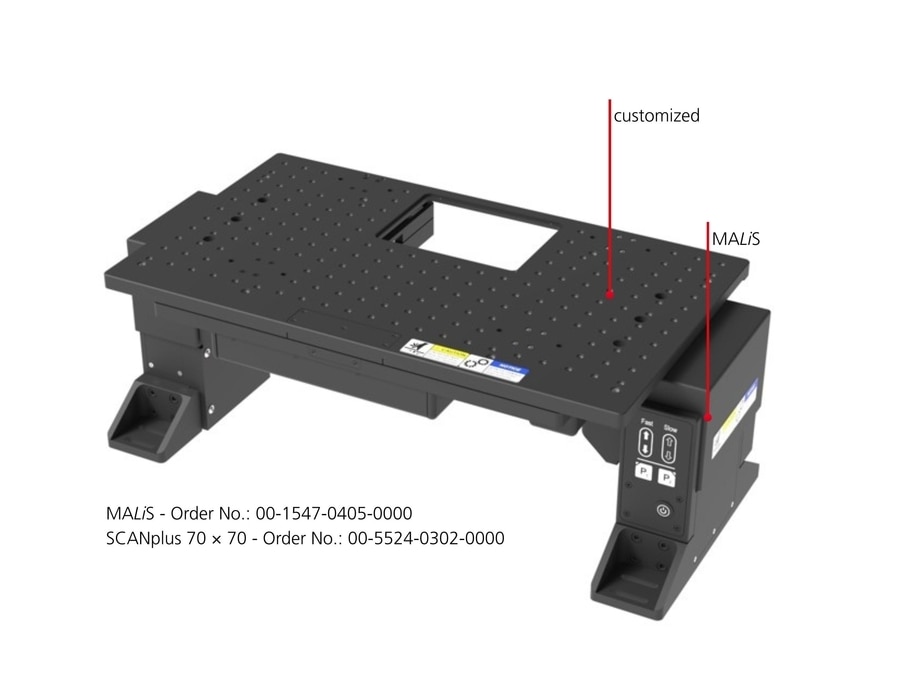

Freely configure your application and combine MALiS with various XY positioning systems, grid plates, or with customized components - developed according to your requirements.
Controlled Axes
synchronous Z-axes
configurable with: XY positioning systems, grid plates, customized components
Specifications
Resolution: 0.05 µm
Repeatability: < 1 µm
Travel speed: max. 14 mm/s
Load capacity: 30 kg
Features
for customized platforms, prepared for mounting on optical breadboards
integrated optical measuring system
Memory function: individually configurable presets for reaching the Z-position with a single button press
Control via joystick or control panel
