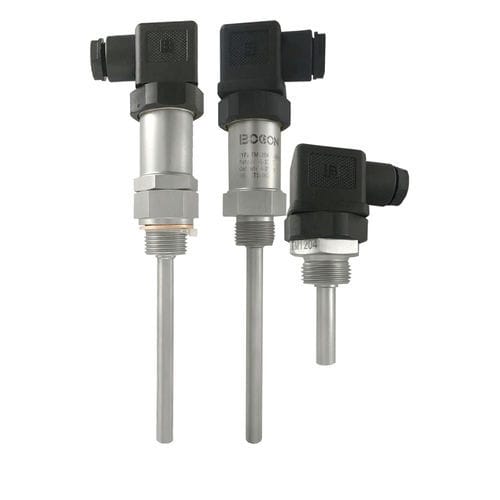

Horsman-joint RTD temperature probes

TM1204

Applications:

Heat exchanger units, Refrigeration and testing equipments.

Technical data

Protection tube: Stainless steel 304/316

Sensor element: Pt100, Pt500, Pt1000 meets IEC 751

Tolerance : Class B: △t=±(0.30 + 0.005 |t| )℃(standard)

Class A: △t=±(0.15 + 0.002 |t| )℃

Transmitter: Integrated temperature transmitter 24VDC, 4~20mA, 2-wire

Transmitter errors: standard ±0.5% . ±0.2% is optional.

Response time：t0.9 approx. 10secs, in water 0.2 m/sec, diameter 6mm

Dimensions

Order Details:

TM1204 — (1) — (2) — (3) — (4) — (5) — (6) / (7)

(1)Protection tube diameter D

4 4mm

5 5mm

6 6mm

8 8mm

9 9mm

11 11mm

(2)Insertion Length EL

50 50mm

100 100mm

250 250mm

500 500mm

Note:other lengths as per customers’ requirements.

(3)Process connection G

000 No

123 M16 x 1.5

Details in “Thread code table”

(4) Sensor element

11 1 x Pt100 in 2-wire circuit

51 1 x Pt500 in 2-wire circuit

61 1 x Pt1000 in 2-wire circuit

13 1 x Pt100 in 3-wire circuit

14 1 x Pt100 in 4-wire circuit

12 2 x Pt100 in 4-wire circuit

16 2 x Pt100 in 6-wire circuit

62 2xPt1000 in 4-wire circuit

(5)Measuring range/Connecting cable

13 -50℃ ～+ 180℃/Silicone

20 -40℃~+400℃

Specification：the actual operating range is from -20℃ to +120℃ with integrated transmitter.

(6) Cable length L（L≥100mm）

100 100mm

200 200mm

2000 2000mm

Note:other lengths as per customers’ requirements.

(100mm≤L<1000mm, L1=50mm, L≥1000mm, L1=100mm)

(7)Additional options

00 No

02 Shielded connecting cable (D≥4mm)

06 Output 2-40mA in 2-wire

07 Ferrules as per DIN 46 228 part4 (Standard)

08 Multipole connector (Providing types)

99 Special options

List the additional options in sequence, separated by commas.
