Removable Exhaust Insulation Blanket: Design, Materials and Applications

How removable exhaust insulation blankets provide reusable thermal protection for pipes, manifolds, turbochargers, mufflers and industrial engine systems.

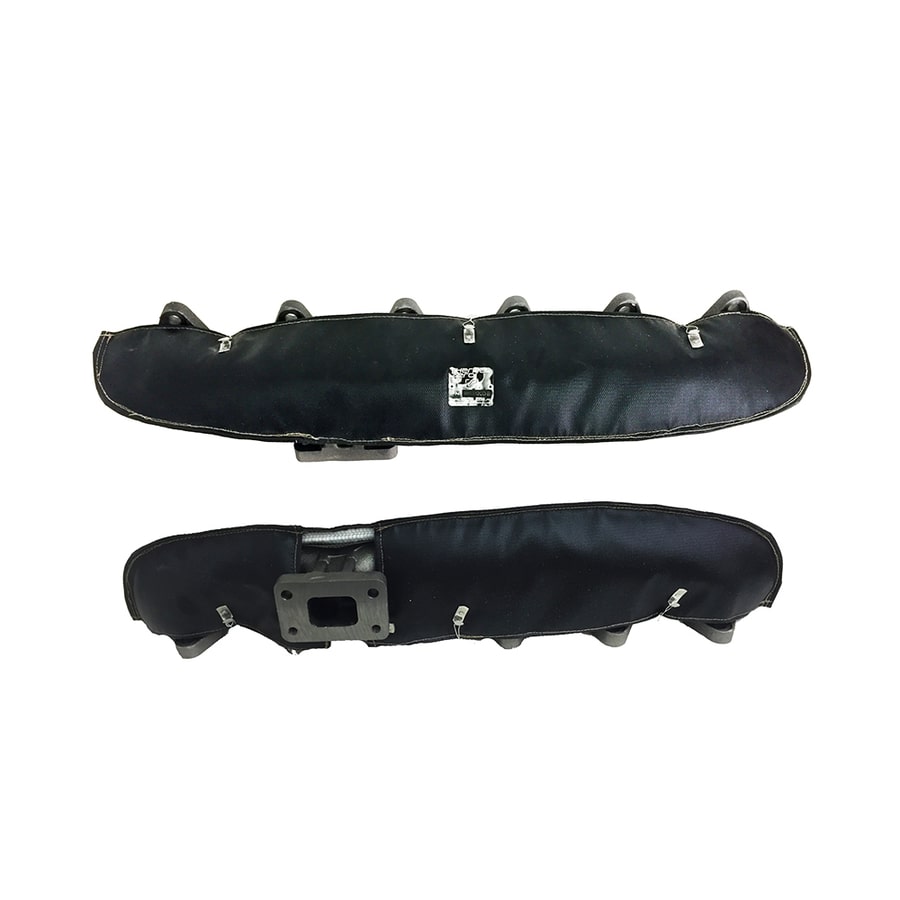

A removable exhaust insulation blanket is a reusable thermal insulation system designed for high-temperature exhaust components that require both heat control and regular maintenance access. Unlike permanent exhaust lagging, a removable blanket can be installed, removed and reinstalled without damaging the insulation system.

This makes removable exhaust blankets especially useful for diesel engines, generator sets, marine propulsion systems, industrial machinery and other equipment where exhaust pipes and components must be inspected or serviced periodically.

The main function of a removable exhaust insulation blanket is to reduce heat transfer from the exhaust component to the surrounding environment. By containing heat closer to the source, the blanket helps limit radiant heat exposure around engine compartments, generator enclosures and industrial equipment.

A typical removable exhaust insulation blanket uses a multilayer construction.

The inner hot-face layer is positioned directly against or close to the hot exhaust component. Depending on operating temperature, this layer may use fiberglass fabric, high silica fabric, stainless steel mesh or other high-temperature materials.

The insulation core provides the primary thermal resistance. Fiberglass, silica-based insulation and ceramic fiber materials may be selected depending on the required temperature capability and insulation performance.

The external protective layer is designed to withstand handling, vibration, abrasion, oil contamination and moisture. Silicone-coated fiberglass and other durable technical fabrics are commonly considered for this purpose.

The blanket is normally secured using hooks, lacing wire, straps, buckles, springs or other fastening systems that allow the insulation to be opened and removed during maintenance.

Removable exhaust insulation blankets are commonly used on:

Exhaust pipes

Exhaust manifolds

Turbochargers

Mufflers and silencers

Exhaust elbows

Flanges

Flexible exhaust joints

Expansion joints

Generator exhaust systems

Marine engine exhaust components

Industrial process piping

One of the biggest advantages of a removable design is maintenance efficiency. Exhaust systems often contain components that require inspection, tightening, repair or replacement. Permanent insulation may need to be cut away before service and replaced afterward. A removable exhaust blanket avoids this problem by providing repeated access to the underlying component.

Custom fitting is also important.

A well-designed exhaust insulation blanket should follow the actual geometry of the component. Straight pipes can be insulated using relatively simple cylindrical sections, while elbows, flanges, manifolds, mufflers and turbocharger housings may require shaped panels, cut-outs and segmented designs.

Proper fit helps reduce exposed hot spots and improves overall thermal performance.

Material selection should be based on the complete operating environment rather than temperature alone. Engineers should consider:

Maximum operating temperature

Continuous operating temperature

Required outer surface temperature

Insulation thickness

Component shape

Available installation clearance

Vibration

Oil and moisture exposure

Abrasion

Maintenance frequency

Fastening method

Indoor or outdoor use

For generator sets, removable exhaust insulation blankets can help control heat inside enclosed packages where exhaust piping passes close to electrical systems, wiring and engine components.

For diesel engines, they can reduce radiant heat around manifolds, turbochargers and exhaust piping while allowing routine servicing.

For marine applications, removable blankets can be designed for engine rooms where high humidity, vibration and limited space create additional thermal management challenges.

For industrial exhaust systems, removable insulation jackets may be used to improve personnel protection, reduce heat loss and simplify maintenance around high-temperature piping.

Compared with traditional exhaust lagging, removable exhaust insulation blankets offer better serviceability and easier replacement. Compared with a rigid exhaust heat shield, they provide direct thermal insulation around the hot component.

In some applications, both solutions may be used together. A removable blanket can contain heat at the source while an additional shield protects particularly sensitive equipment nearby.

BSTFLEX manufactures custom removable exhaust insulation blankets for diesel engines, generators, marine equipment, automotive systems and industrial applications. Blanket shape, insulation thickness, material combination and fastening method can be developed according to drawings, measurements, samples and operating conditions.

For equipment that requires reliable thermal insulation without sacrificing maintenance access, a removable exhaust insulation blanket provides a practical and reusable solution for controlling heat around high-temperature exhaust components.
