Exhaust Pipe Insulation Blanket for High Temperature Piping

Custom exhaust pipe insulation blankets help reduce radiant heat and surface temperature on diesel, generator, marine and industrial exhaust piping.

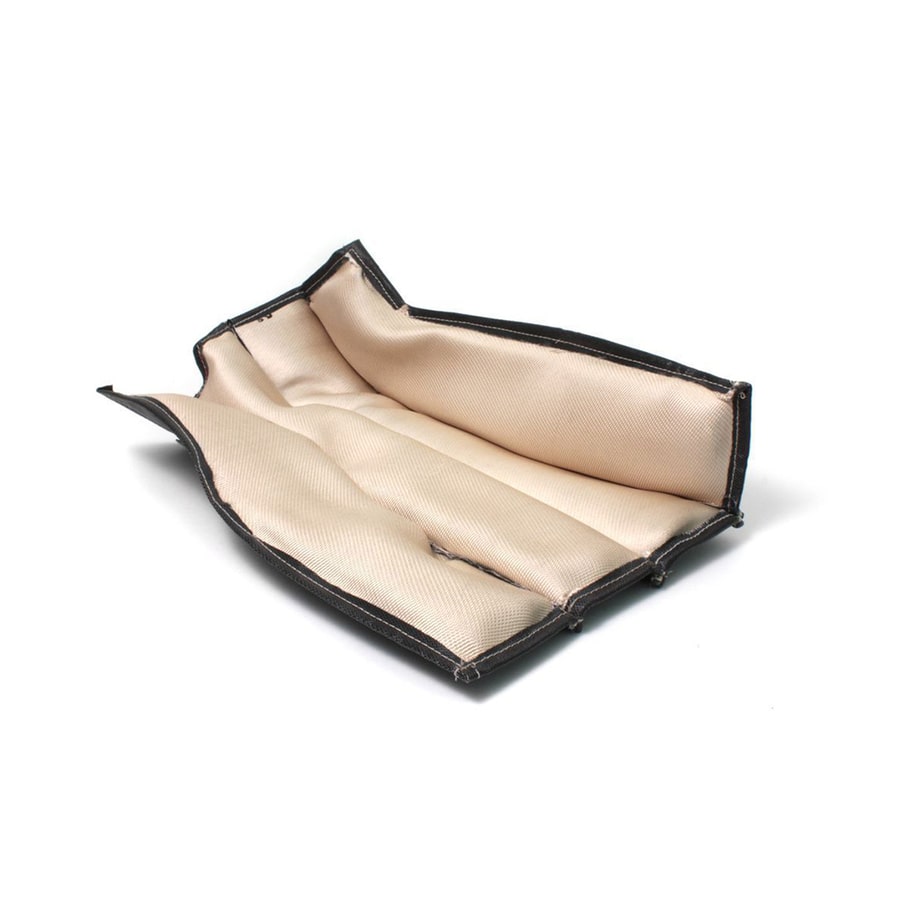

An exhaust pipe insulation blanket is a removable thermal insulation system designed to fit directly around high-temperature exhaust piping. It is used where hot exhaust pipes create excessive radiant heat, elevated surface temperatures or thermal exposure risks for nearby equipment, hoses, wiring and personnel.

Unlike a conventional metal heat shield, which is normally installed between a heat source and a protected component, an exhaust pipe insulation blanket surrounds the pipe itself. This direct insulation method helps contain heat closer to the source and can provide more uniform thermal protection along straight pipes, elbows, flanges and other exhaust sections.

High-temperature exhaust piping is found in many industrial applications, including diesel engines, generator sets, marine propulsion systems, stationary power equipment and heavy machinery. In enclosed spaces, uninsulated exhaust pipes can release significant amounts of heat into the surrounding environment and increase the thermal load on the complete system.

A properly designed exhaust pipe blanket helps address this problem by combining several functional layers.

The inner layer faces the hot exhaust pipe and must tolerate repeated exposure to high operating temperatures. Fiberglass, high silica fabric, stainless steel mesh and other temperature-resistant materials can be selected according to the application.

The insulation core provides the primary resistance to heat transfer. Depending on temperature and required performance, fiberglass insulation, silica-based materials or ceramic fiber insulation can be incorporated into the blanket construction.

The outer layer protects the insulation against abrasion, vibration, oil, moisture and repeated handling. For applications where contamination resistance is important, silicone-coated fiberglass and other coated technical fabrics can be used.

These layers work together to create a flexible thermal barrier around the exhaust pipe.

Common applications for exhaust pipe insulation blankets include:

Diesel engine exhaust piping

Generator exhaust pipes

Marine engine exhaust systems

Industrial engine piping

Exhaust elbows

Exhaust flanges

Turbocharger outlet pipes

Flexible exhaust connections

Muffler inlet and outlet piping

High-temperature process exhaust lines

One important reason for using a removable exhaust pipe blanket is maintenance access.

Industrial exhaust systems regularly require inspection, tightening, repair and component replacement. Permanent lagging can make these procedures more difficult because the insulation may need to be removed destructively before access is possible.

A removable exhaust pipe insulation blanket can be opened and taken off when maintenance is required, then reinstalled afterward. This is especially useful around flanges, clamps, sensors, expansion joints and exhaust components that require periodic service.

Custom fit is also important for thermal performance.

A blanket that does not closely follow the pipe or component can leave exposed areas where heat escapes. Straight sections can usually be insulated with simple cylindrical blanket designs, while elbows, reducers, flanges and irregular exhaust assemblies often require individually shaped insulation sections.

For long exhaust piping runs, multiple blanket sections can be designed so that individual areas can be removed without dismantling the complete insulation system.

The required insulation thickness depends on several factors, including exhaust temperature, pipe diameter, ambient conditions and the desired outer surface temperature. Increasing insulation thickness can improve thermal resistance, but available clearance around the pipe must also be considered.

Engineers specifying exhaust pipe insulation should evaluate:

Continuous exhaust temperature

Maximum temperature exposure

Desired surface temperature reduction

Pipe diameter

Pipe geometry

Available installation space

Insulation thickness

Vibration level

Oil and moisture exposure

Maintenance access

Fastening system

Environmental conditions

The application environment can significantly influence the final construction.

In generator sets, exhaust pipe insulation blankets are often used to reduce radiant heat inside acoustic or weatherproof enclosures. This helps limit thermal exposure to electrical systems and nearby engine components.

In diesel engine installations, the blankets can insulate exhaust pipes, manifolds and turbocharger outlet sections while accommodating vibration and repeated thermal cycling.

Marine exhaust systems may require additional resistance to moisture, oil contamination and confined engine-room conditions.

Industrial piping installations may prioritize personnel protection, reduced heat loss and easier access for maintenance.

Compared with traditional exhaust pipe lagging, a removable insulation blanket provides easier servicing and replacement. Compared with rigid shielding, it offers direct thermal containment around the hot pipe and can be custom manufactured for complex geometries.

BSTFLEX manufactures custom exhaust pipe insulation blankets for diesel engines, generator systems, marine equipment, industrial machinery and other high-temperature exhaust applications. Blanket dimensions, insulation thickness, materials, fastening methods and component shapes can be developed according to drawings, measurements, samples and actual operating conditions.

For high-temperature exhaust piping where radiant heat, hot surface exposure and maintenance accessibility are important concerns, a properly engineered exhaust pipe insulation blanket provides an effective and serviceable thermal management solution.
