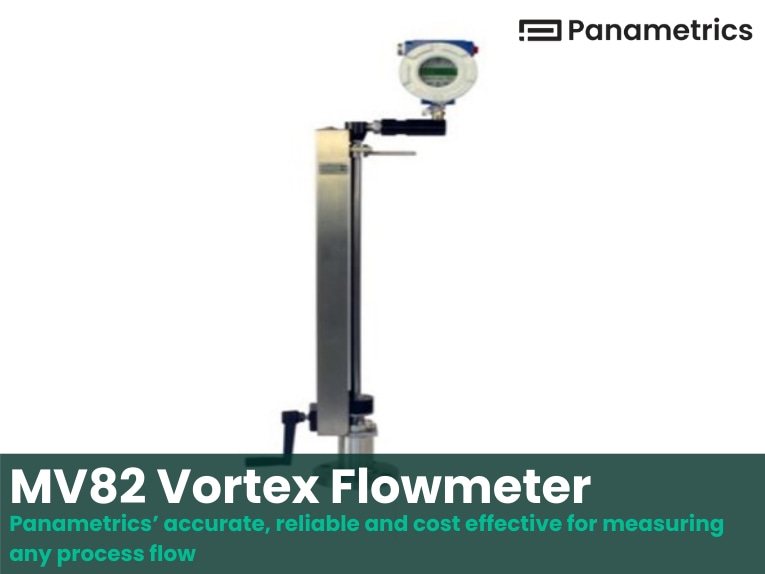

MV82 Vortex Flowmeter

Panametrics’ accurate, reliable and cost effective for measuring any process flow

Insertion style multivariable flowmeter
The PanaFlow MV82 insertion mass flowmeter is a multivariable vortex flowmeter for measuring volumetric flow, temperature, pressure, density and mass flow. It offers an advanced design and digital signal processing to isolate vibration. This meter is accurate, reliable and cost effective for measuring any process flow.

Applications
• Ideal for high temperature and high velocity steam
• Power generation—fuel and steam applications
• Industrial—HVAC, district energy management
• Commercial—building, campus and facility energy management
• Oil and gas—allocation of natural gas
• Petrochemical—mass balancing, reaction processes heating

Key benefits
• Multivariable vortex flowmeter for measuring volumetric flow, temperature, pressure, density, and mass flow using a single meter
• Advanced design and digital signal processing for vibration isolation
• Cost effective, accurate and reliable meter for volumetric and mass flow measurement in most gases, liquids and steam without the need to recalibrate
• Energy management through accurate measurement of both temperature and mass flow simultaneously
• Remote monitoring and integration to DCS using HART®, Modbus®, and BACnet® communication protocols
• Significant cost savings through reduced installation costs, wiring runs and services support using MV meter with no moving parts.
• Certified for division 1/Zone 1 explosive atmospheres — US/CAN/ATEX/IEC Ex

Vortex Flowmeters
Widely chosen by customers for its reliability and accuracy, the vortex flowmeter also serves as a standard for steam applications due to its ease of installation and low maintenance costs. Where other meter technologies struggle in difficult high-pressure and high-temperature environments, the vortex flowmeter offers a wide range and a low pressure drop, making it a top choice for flow professionals.

Our PanaFlow vortex meter offers a multivariable design that contains shedding velocity with RTD temperature sensors and a solid-state pressure transducer for measuring mass flow rate of steam, gases and liquids. The accuracy of these meters enables velocity, temperature and pressure to be measured at the same location.
