Mechanical coupling for high-speed drives
Modern test bench enables the development of innovative housing freewheel series

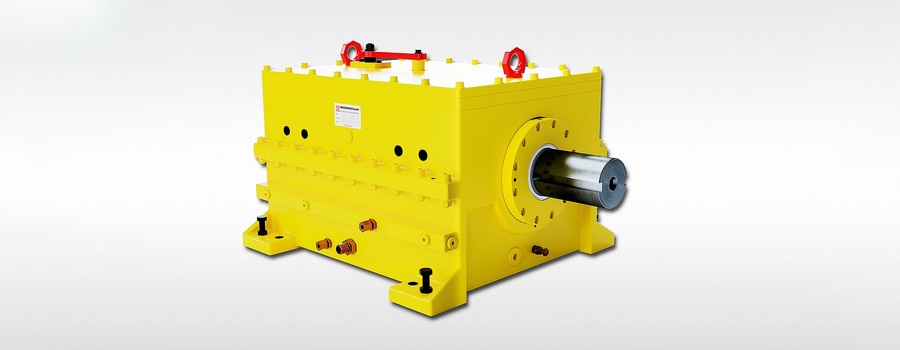

Bad Homburg, July 2026. – "With the housing freewheels of our FHHS series, we offer manufacturers of drives for refinery, chemical process engineering and petrochemical plants in particular an innovative coupling solution for the realisation of flexibly switchable and energy-efficient multi-motor drives," as RINGSPANN customer advisor Manuel Assmann puts it in a nutshell. These ready-to-use freewheels are fully enclosed overtaking freewheels with their own input and output shafts that can be driven at speeds of up to 12,000 rpm. They work wear-free, do not require any additional switching equipment and, depending on the version, transmit nominal torques from 1,356 Nm to 24,405 Nm. FHHS freewheels are designed for stationary installations, and are able to manage the on-demand engagement and disengagement of different motors of the same powertrain in applications with high-speed shafts. Speeds in idle and drive mode may be at the same or similar level.

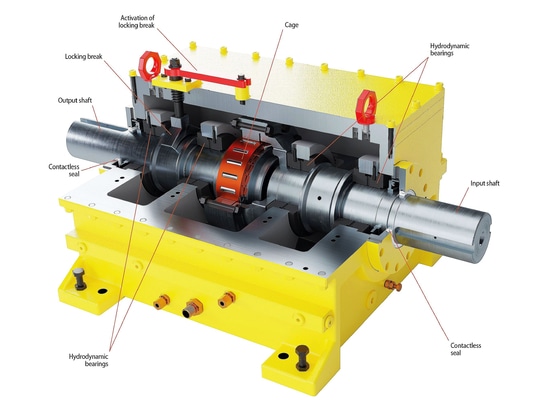

Hydrodynamics as a key factor

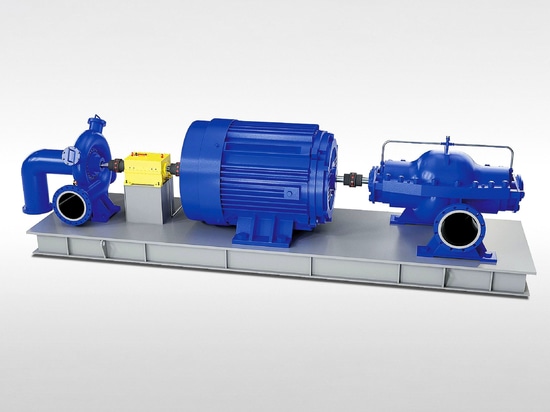

RINGSPANN housing freewheels with hydrodynamic clamping roller lift-off always prove to be the optimal solution when the drive of an actuator of a system is either by two or more motors or turbines with similar or even the same speed. Plant operators benefit in three ways: First, they can engage or disengage individual actuators of the drive train as required without complex control technology. Secondly, even if an energy source or drive unit fails, uninterrupted process control is ensured. And thirdly, especially in partial load operation, they can achieve significant energy savings.
The standard equipment of an FHHS housing freewheel includes sensor monitoring of the bearing temperatures. The sensor and telematics modules of RINGSPANN’s condition monitoring system can be integrated as an option – this also includes data analysis, remote maintenance and connection to higher-level control systems. Operators and maintainers of complex drive systems can thus monitor all important performance and MRO parameters of the installed freewheels in real time.
Test bench with added value for the customer

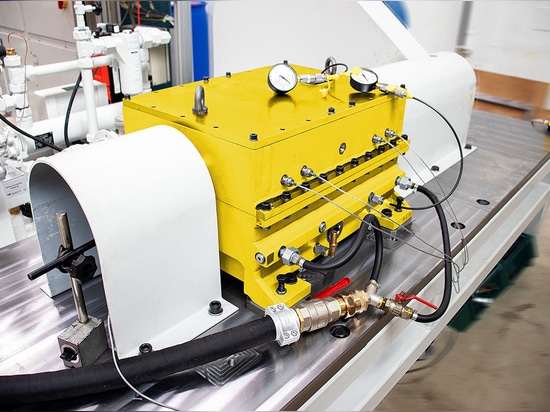

With the aim of validating the performance of its FHHS cabinet freewheels, RINGSPANN developed a new test bench, which was put into operation at the company's main plant in Bad Homburg at the end of 2025. "This is probably the most modern test bench for housing freewheels in the world. For the first time, it enables us to generate speeds of up to 12,000 rpm and document the performance of our housing freewheels," reports Manuel Assmann. For manufacturers of drive systems, this offers the advantage that they can integrate measurement and test results from RINGSPANN into their own quality assurance.
The FHHS series underpins RINGSPANN's international market leadership in the field of freewheel technology. This is because the company offers a high-quality alternative for high-speed applications with customer-side oil supply through its standard FH Series housing freewheels and mechanically separable FHD housing freewheels, which are characterised by an OSHA-compliant lockout-tagout safety function. "In addition, our entire range of housing freewheels is experiencing a significant innovation boost with the possibilities of the in-house test bench, as the performance of the models of all series can be verified here under practical conditions," says Manuel Assmann.
By the way: RINGSPANN also provides its customers with a large selection of shaft connections in its one-stop shop, that can be used to connect housing freewheels structurally to input and output shafts. Designers of multi-motor drives therefore obtain shaft connections from the same source as the housing freewheels. ms
