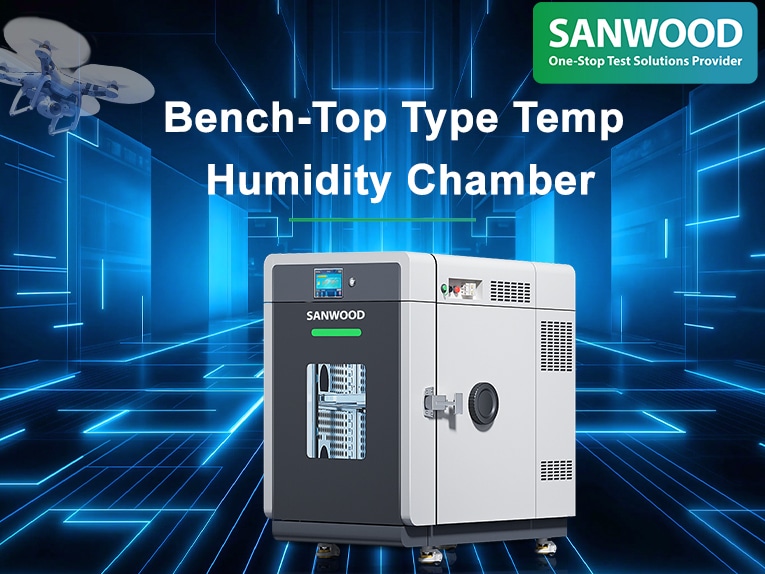

IEC 60068-2-1 Sanwood Technology Bench-top Type Temperature Humidity Test Chamber: Safeguarding the Reliability of Precision Components for Drones

Sanwood Technology Bench-top Type Temperature Humidity Test Chamber ensures drone sensor reliability with IEC 60068-2-1 compliant precision temperature and humidity testing.

Behind the precision and agility of drones soaring through the skies lies the stability and reliability of their core "sensory" systems—high-precision sensors and high-definition cameras. These precision components, like the eyes and nerves of a drone, cannot withstand the test of extreme environments. Sanwood Technology's desktop constant temperature and humidity test chamber is a reliability verification solution tailored for drone sensors, cameras, and other miniature precision components. With its compact desktop design, it accurately replicates extreme global climates within a limited laboratory space and strictly adheres to core testing standards such as IEC 60068-2-1, laying an indisputable foundation for the superior performance and safe flight of drones.

IEC 60068-2-1 is a core environmental testing standard published by the International Electrotechnical Commission (IEC), officially titled "Environmental Testing Part 2-1: Test A: Low Temperature". This standard specifically defines standard test methods, severity levels (such as temperature values and duration), and uniform specifications for performance evaluation of electrical and electronic products (including their components and equipment) during low-temperature environmental testing. Its core purpose is to scientifically evaluate the functional reliability, safety and adaptability of products in low-temperature environments by simulating or reproducing the low-temperature conditions that products may encounter during transportation, storage and use. It provides a set of authoritative, comparable and repeatable universal testing criteria for manufacturers, laboratories and certification bodies around the world, and is an important international benchmark for product environmental reliability design and verification.

Basic parameters of Sanwood Technology's Bench-top Type Temperature Humidity Test Chamber: Sanwood Technology's Bench-top Type Temperature Humidity Test Chamber s can be customized according to customer requirements. The following are the basic technical parameters:
Temperature control range: -40℃~150℃
Temperature fluctuation: ±0.5℃
Cooling rate:
150.0℃~25.0℃, cooling rate 2.0~3.0℃/min
25.0℃~-40.0℃, cooling rate 1.0~2.0℃/min
-40.0℃~60.0℃, cooling rate 0.7~1.5℃/min
Heating rate: -40.0℃~150.0℃ within 60 minutes, 3.0~5.0℃/min
Temperature uniformity:
±1.0℃ (-40.0℃~100.0℃)
±1.5℃ (100.1℃~150.0℃)
Humidity control range: 20.0%RH~95.0%RH
Humidity fluctuation: ±1.0%RH
Humidity uniformity: ±2.0%RH

Bench-top Type Temperature Humidity Test Chamber boasts a compact design and superior performance. It's an environmental testing device that simulates the reliability of products under various extreme conditions. Its key features include:
1. Compact design, suitable for laboratory or small-scale production environments, saving space.
2. Designed and manufactured to international standards, ensuring high reliability and stability.
3. Offers a wide temperature and humidity range to simulate various climatic conditions.
4. Programmable control functionality allows for setting different temperature and humidity change curves and test times.
5. Employs an advanced temperature and humidity control system with high precision and stability.

To ensure the consistent and stable operation of micro-drones under complex climatic conditions, selecting a precise and reliable testing device is crucial. Sanwood Technology's Bench-top Type Temperature Humidity Test Chamber , based on a deep understanding and implementation of international standards such as IEC 60068-2-1, is dedicated to providing trustworthy environmental reliability verification for precision components such as drone sensors and cameras through its compact design, stable performance, and rigorous testing capabilities. We believe that solid testing is the starting point for excellent products. In addition to Bench-top Type Temperature Humidity Test Chamber, Sanwood Technology also provides battery explosion-proof test chambers, three-dimensional integrated test chambers, high and low temperature low pressure test chambers, and other testing equipment, supporting customized services.

For professional testing solutions, please contact Sanwood Technology; we will tailor professional services to your needs.
