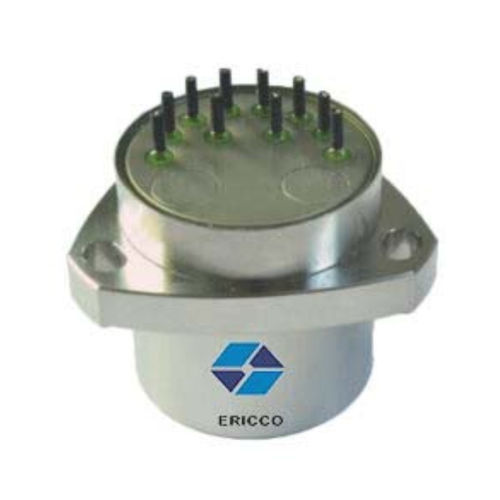

Aerospace-grade Quartz Accelerometer

How Do Aerospace Applications Demand the Ultimate from Quartz Accelerometers?

In the world of aerospace—where precision and reliability are non-negotiable—quartz accelerometers are more than just sensors. They are vital guardians of flight safety, navigation accuracy, and mission success.

Think of them as the “high-precision senses” of an aircraft or spacecraft, tasked with detecting the faintest changes in acceleration across extreme environments—from ground level to the edge of space—and converting this data into flawless control commands without delay.

So how does a accelerometer like the ER-QA-03A meet such comprehensive and rigorous demands?

1. Extreme Precision and Stability
Aerospace navigation operates on a razor’s edge: even micro-errors can lead to macro failures.

Low Bias & Bias Stability:
Bias is a sensor’s inherent error. Over long missions, tiny drifts amplify through integration, causing significant deviation in position and velocity calculations.
✅ The ER-QA-03A achieves bias as low as ≤±3mg (Type A1), essential for accurate targeting or orbital insertion.

Repeatability:

Bias Repeatability ≤10μg: Ensures extreme consistency across power cycles.

Scale Factor Repeatability ≤15ppm: Delivers a permanently stable “measuring scale”.

Second-Order Nonlinearity Repeatability ≤(±10)μg/g²: Enables precise compensation across the full range.
→ Together, these ensure long-term reliability and navigational coherence.

High Resolution / Low Threshold:
Capable of detecting subtle changes—like minor gravitational shifts or micro-adjustments in attitude.
✅ The ER-QA-03A offers a resolution of 5μg.

2. Superior Environmental Durability
Aerospace means some of the harshest conditions on—and off—Earth.

Wide Operating Temperature Range:
From launchpad cold to atmospheric heat and space vacuum.
✅ The ER-QA-03A operates from -40°C to +80°C and stores from -60°C to +120°C.

High Vibration & Shock Resistance:
Must survive intense vibration during launch and propulsion.
✅ Withstands 6g vibration (20–2000Hz) and 100g, 5ms shock—making it launch-ready.

3. High Reliability & Long Service Life
There are no second chances in space. Once launched, systems must operate flawlessly for years.

Designed and manufactured under strict control, using high-reliability materials (e.g., premium quartz crystal)

Built for continuous operation with high MTBF (Mean Time Between Failures)

Qualified through rigorous aerospace-grade testing

4. Compact & Lightweight Design
Every gram and every millimeter matters. Weight and size impact fuel efficiency and launch costs.

✅ The ER-QA-03A measures just Φ25.4mm × 30mm and weighs ≤80 grams—without compromising performance.

Conclusion
The aerospace industry demands accelerometers that are precise, rugged, reliable, and compact—all at once.

The ER-QA-03A doesn’t just meet these extreme demands. It is engineered to exceed them, serving as the “core neural endpoint” of modern vehicles—enabling them to perceive, navigate, and succeed.
