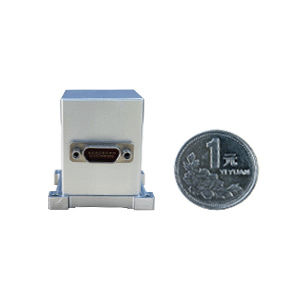

The Smallest MEMS North Seeker ER-MNS-06A

Redefining Precision Underground Orientation in Extreme and Confined Spaces

In the depths of winding tunnels, narrow mine shafts, and complex construction sites, traditional bulky directional equipment struggles to perform. Space is severely limited—yet precision is critical. How can accurate orientation be achieved under such extreme constraints?

Why Is It Called “Compact”?
At the heart of the ER-MNS-06A North Seeker lies cutting-edge MEMS gyroscope technology, which fundamentally redefines the design principles of traditional mechanical or fiber-optic gyroscopes that rely on complex optical and mechanical assemblies.

Micro-Scale Sensing: The core sensing element of the MEMS gyro is micro-machined directly onto a silicon wafer, resulting in an extremely small form factor.

Integrated Design: Sensing and signal processing are highly integrated into a single chip, eliminating the need for bulky mechanical components and intricate optical systems.

Cost Efficiency: Leveraging mature manufacturing processes, the ER-MNS-06A significantly reduces material costs and production complexity—achieving an optimal balance of high performance and affordability.

Thanks to the inherent precision of MEMS technology, the ER-MNS-06A delivers breakthrough advantages in size and cost, forming the cornerstone of its “compact-yet-powerful” design.

Advantages of Being “Small”
The sophisticated miniaturization offered by MEMS technology brings tangible benefits:

Minimal Footprint: Compact and refined—like a “miniature sculpture” in the world of precision orientation.

Significantly Reduced Weight: By eliminating heavy components, the system lightens the structural load and installation requirements of host equipment (e.g., tunnel boring machines).

Revolutionary Installation: No need for large mounting cavities or reinforced brackets. It integrates effortlessly into the tightest spaces, dramatically simplifying project deployment.

Application Benefits of Compact Design
The ER-MNS-06A is specially engineered for harsh underground and engineering environments:

✅ Tunnel Boring Machine Integration:
Easily deployed in narrow spaces behind the cutterhead, between thrust cylinders, or inside the control cabin—providing real-time directional reference to ensure accurate tunnel breakthrough.

✅ Flexible Adaptation in Mining Equipment:
Seamlessly integrates into space-constrained underground machinery (e.g., continuous miners and shuttle cars) to enable efficient and safe directional mining.

✅ Precise Building Orientation:
Supports large-scale construction and bridge projects by offering reliable directional references for complex steel structures or confined working surfaces.

Cost Efficiency Through Compact Design
The small size of the ER-MNS-06A directly translates into significant economic benefits:

✅ Lower material costs thanks to MEMS mass production and simplified structural design

✅ Streamlined production and assembly through modular, miniaturized architecture

✅ Economical installation and maintenance—no special modifications or large spaces required

✅ Enhanced overall ROI: uncompromised high-precision orientation in extreme environments, improving project efficiency and profitability

Conclusion
The ER-MNS-06A MEMS North Seeker may be small in size, but it delivers powerful performance. Leveraging the sophistication of MEMS technology, it redefines the standards for precision underground orientation.

Its compact dimensions represent technological progress; its low cost ensures accessibility; its robust application capabilities signify breaking through limits.
