Paper Industry Packaging Solutions

Complete Guide to Wrapping Paper Rolls (2026)

In this guide,we break down the major challenges,explore equipment solutions,and show how automated wrapping systems can reduce damage and improve throughput.

The 5 Biggest Packaging Challenges in the Paper Industry1.Moisture and Humidity Damage

Paper is hygroscopic—it absorbs and releases moisture with ambient humidity.A 5%moisture change can cause dimensional shifts of 0.5%to 1%,enough to ruin print registration.Industry surveys by the AF&PA indicate moisture damage accounts for roughly 35%of all paper shipping claims.Effective packaging requires consistent,overlapping wrap coverage with no gaps.

2.Securing Roll-Shaped Cargo

Cylindrical rolls want to roll.A standard turntable wrapper cannot properly stabilize a standing paper roll,because film cannot grip the curved surface without deforming edges.Cylinder wrapping—where the roll rotates along its axis while film is applied radially—is the only method that creates uniform circumferential tension.

3.Transportation and Handling Damage

Paper rolls and sheet stacks suffer edge crushing,corner impact,and scuffing during transit.The ISTA has documented that paper products experience higher damage rates than almost any other non-fragile industrial category.Automated wrapping with controlled tension can reduce transit damage by 40%to 60%compared to manual methods.

4.Low Manual Packaging Efficiency

Manual wrapping of paper rolls is slow and inconsistent.A worker wrapping a large paper roll takes 10 to 15 minutes,using far more film than necessary.In high-volume mills,manual packaging becomes a serious bottleneck.One automated Cylinder Wrapping Machine replaces 3 to 4 workers while wrapping each roll in just 1 to 3 minutes.

5.Environmental and Sustainability Pressure

The industry is under growing pressure to reduce packaging waste.Manual wrapping uses excessive film because workers cannot consistently optimize stretch.Automated systems with powered pre-stretch reduce film consumption by 30%to 50%,aligning with sustainability goals while cutting costs.

Packaging Equipment Solutions for the Paper Industry

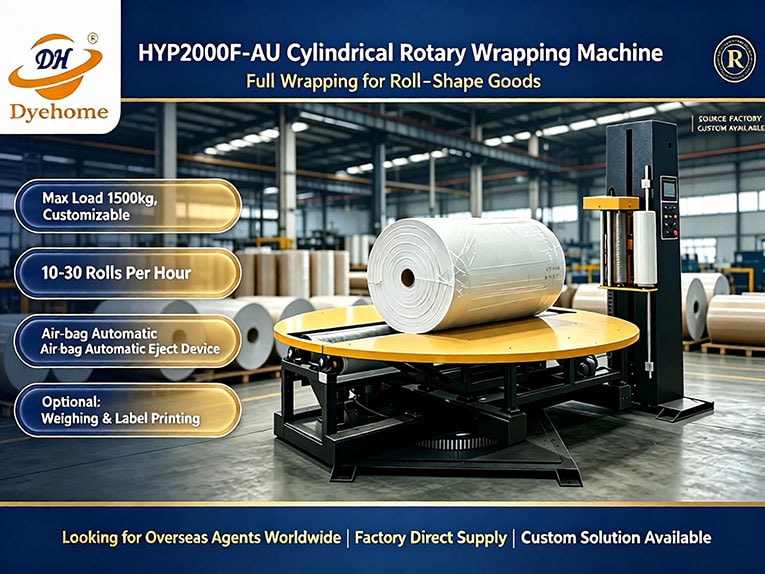

1.Cylinder Wrapping Machine:Ideal for Paper Rolls

The Cylinder Wrapping Machine(or radial wrapper)is purpose-built for cylindrical products like paper rolls and tissue parent rolls.The machine rotates the roll on its Cylinder axis while a film carriage travels back and forth,applying stretch film in a spiral,overlapping pattern.This radial wrapping creates uniform circumferential tension,holding layers together and protecting roll edges from crushing.

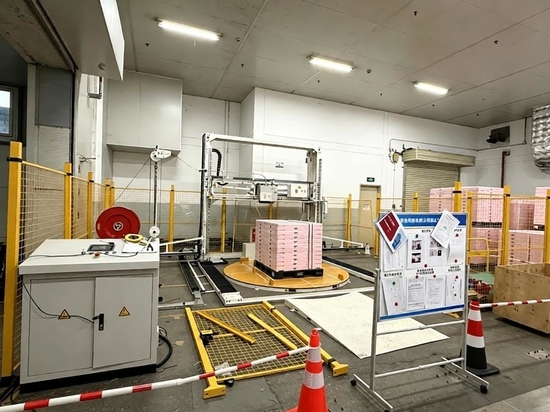

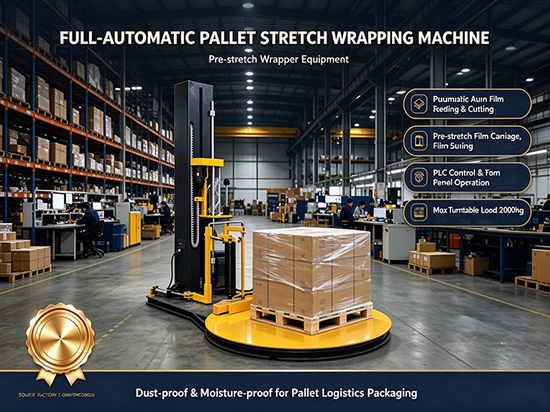

2.Turntable Pallet Wrapper:Standard for Sheets and Cartons

For paper sheets,copy paper,and boxed products on standard pallets,the turntable pallet wrapper remains the industry workhorse.Modern turntable wrappers feature powered pre-stretch systems with ratios up to 1:2.5,dramatically reducing film consumption.

3.Rotary Arm Wrapper:Best for Heavy and Unstable Loads

When wrapping extremely heavy paper pallets,rotating the load itself is unsafe.A rotary arm wrapper keeps the pallet stationary while a rotating arm orbits around it.Rotary arm machines are also essential for unstable or tall loads that could topple on a turntable.

4.Inline/Conveyor Wrapper:High-Capacity Mill Automation

For high-volume mills producing hundreds of rolls per shift,inline conveyorized wrappers are the standard.These machines integrate directly with production conveyors,automatically receiving loads,wrapping to programmed recipes,and discharging to shipping—all without operator intervention.

Why the Cylinder Wrapping Machine Is the Gold Standard for Paper Rolls

If there is one machine that defines modern paper roll packaging,it is the Cylinder Wrapping Machine.While turntable and rotary arm machines handle palletized products,the Cylinder wrapper is the only machine designed specifically for cylindrical roll-form paper—which is how the vast majority of bulk paper leaves the mill.

Selecting the right equipment depends on several key factors.

1.What Are You Wrapping?

Paper rolls:You need a Cylinder Wrapping Machine,sized for your roll diameter,length,and weight.

Palletized sheets or cartons:A turntable pallet wrapper is the most cost-effective choice for stable loads.

Heavy or tall pallets:A rotary arm wrapper provides better stability and safety for loads that should not rotate.

Mixed output:You may need both a Cylinder wrapper for rolls and a pallet wrapper for finished goods.

2.What Is Your Production Volume?

Low volume(under 20 per day):A semi-automatic machine may be sufficient.

Medium volume(20–100 per day):A fully automatic machine with conveyors will improve throughput.

High volume(100+per day,24/7):An inline conveyorized system with recipe management is essential.

3.How Much Floor Space Do You Have?

Footprint matters,especially in older mills.Cylinder wrappers need length for the roll plus traverse mechanism;turntable wrappers need clear space around the platform;rotary arm machines need room for the arm to swing.Always measure carefully and discuss layout with your supplier.

4.What Is Your Budget?

Entry-level semi-automatic turntable wrappers start around$10,000 to$20,000,while heavy-duty automatic Cylinder wrappers can run$80,000 to$200,000+.Always calculate total cost of ownership—labor savings,film savings,and damage reduction—rather than just the upfront price.

Ready to Upgrade Your Paper Industry Packaging?

If you are still wrapping paper rolls or pallets by hand—or if your current system is underperforming—now is the time to explore what modern equipment can do.Most mills see a full return on investment within the first year or two.
