What Is the Working Principle of a Jaw Crusher?

What Is the Working Principle of a Jaw Crusher?

The jaw crusher is a core primary crushing machine widely used in sand and gravel production, mining, quarrying, and construction waste recycling. It operates based on the toggle movement and extrusion principle, simulating the biting action of animal jaws to crush bulk materials. As a professional manufacturer of crushing equipment serving global customers, Shanghai Dongmeng designs its jaw crushers by optimizing this classic working principle for higher efficiency, greater reliability, and wider adaptability to working conditions around the world.

Core Components
Shanghai Dongmeng jaw crushers (including PE and PEW European series) consist of key structural parts that support stable crushing:

Fixed jaw plate: Installed firmly on the frame, providing a stationary crushing surface

Movable jaw plate: Driven to swing periodically, forming a V-shaped crushing cavity with the fixed jaw

Eccentric shaft: The main driving component that powers the reciprocating movement of the movable jaw

Toggle plate: Transmits force and acts as a safety device to protect the machine from overload

Tension rod and spring: Pull the movable jaw back to its original position to maintain continuous cycles
Frame, bearings and discharge adjustment system: Ensure stable operation and controllable output size

Working Principle
When running, the motor drives the belt pulley and eccentric shaft to rotate, making the movable jaw perform a reciprocating swing toward and away from the fixed jaw. The whole process includes two main strokes:

1. Crushing Stroke
As the eccentric shaft rotates, the movable jaw is pushed toward the fixed jaw. Materials entering the crushing cavity are compressed, split, and bent under strong force, breaking large lumps into smaller pieces. Thanks to the optimized deep cavity design, Shanghai Dongmeng jaw crushers achieve higher crushing efficiency and larger throughput.

2. Discharging Stroke
When the movable jaw moves back, the crushed materials fall freely through the discharge opening under gravity. As the eccentric shaft keeps rotating, the cycle repeats, realizing continuous feeding, crushing, and discharging.

Shanghai Dongmeng Jaw Crusher: Optimized Performance for Global Users

Based on the standard working principle, Shanghai Dongmeng has upgraded its jaw crushers with global-oriented advantages:

Deep crushing cavity for higher crushing ratio and increased output

Heavy-duty structure with forged eccentric shaft for strong impact resistance

Hydraulic adjustment for fast and safe discharge gap setting

Labyrinth sealing system to prevent dust and extend service life

Low energy consumption and low noise, meeting international environmental standards

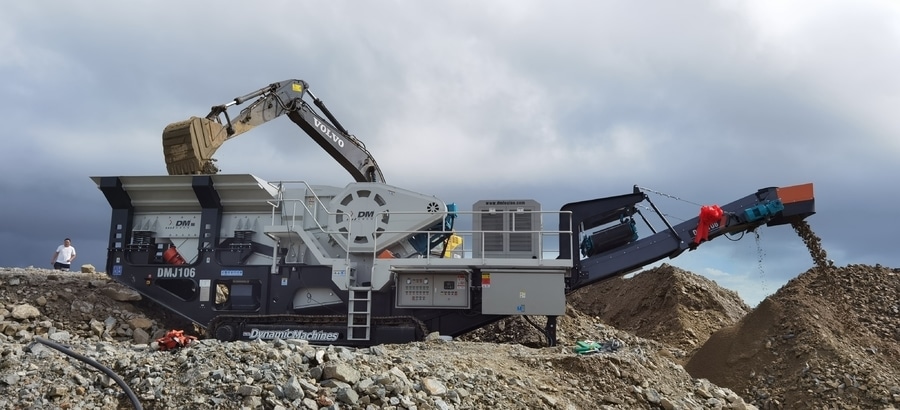

Global Application Scenarios

Shanghai Dongmeng jaw crushers are widely used in mining, quarrying, construction, road and bridge engineering, and construction waste disposal worldwide. They can crush materials with compressive strength up to 350MPa, making them ideal primary crushing equipment for global customers.Official website:https://dongmeng-global.com/stationary_crushers/
