Revolutionary tool for damper manufacturing: JP Fully automatic balancing machine

JP Fully automatic balancing machine

Today, with the rapid development of the automotive industry, dampers, as core components ensuring driving and riding comfort and safety, their dynamic balance accuracy directly affects vehicle performance and service life. Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd., with its profound technical accumulation and innovative spirit, grandly launches the fully automatic balancing machine series dedicated to dampers, bringing intelligent and highly efficient perfect solutions to the damper manufacturing field and completely revolutionizing the production process!
Fully automatic empowerment, a dual leap in efficiency and precision

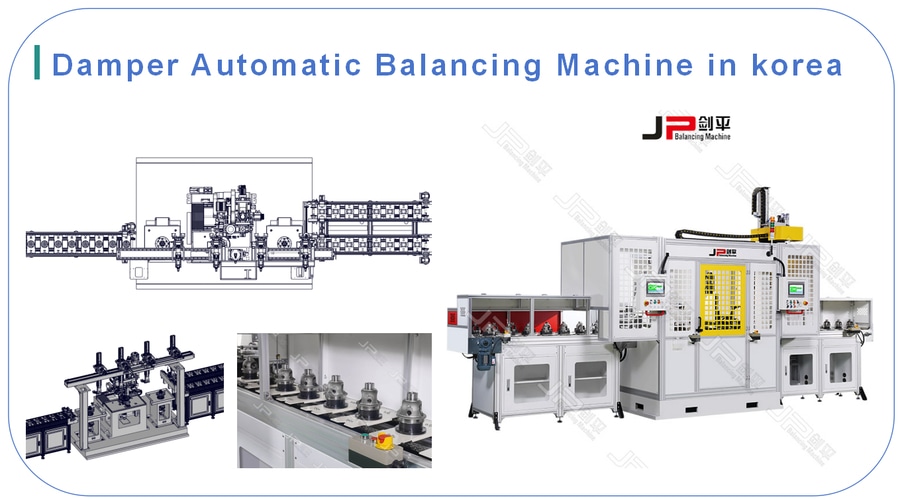

The JP damper fully automatic balancing machine series, with flexible and diverse design concepts at its core, covers models ranging from fully automatic single-station measurement and correction integrated models to high-efficiency fully automatic multi-station models. The workstation configuration precisely matches your cycle time requirements and production line planning, maximizing production efficiency.
Intelligent workflow, 67-second ultimate cycle time: From the input of the workpiece to the removal of the qualified product, the equipment completes the entire process within 67 seconds (initial test 15 seconds, weight removal 30 seconds, retest 15 seconds). Rapid and accurate unbalance correction is achieved through precise axial drilling (or optional axial milling and grinding of the cover plate).
Unmanned operation: Support manual loading and unloading, and can be seamlessly integrated with robot arm or robot to achieve fully automatic loading and unloading, easily connecting to automated production line and significantly reducing reliance on manual labor.
Outstanding performance indicators:
Min. achievable residual unbalance: ≤1 g.mm/kg
Unbalance reduction ratio (URR) : Up to 90%
Balance speed: ≤1200 r/min
Applicable workpieces: Weight ≤10kg, outer diameter Φ100-400mm, thickness ≤100mm
Model A1LZ1: Expert in disc-shape damper balancing
Take the star model A1LZ1 as an example. It is specially designed for disc-shaped dampers and integrates unbalance measurement, automatic drilling and safety guard, highlighting the outstanding quality of JP equipment;
One-click fully automatic operation: Measurement, positioning, drilling and weight removal (hole diameter φ5mm, depth ≤10mm), retest, and result judgement are all automatically completed. The operator only needs to simply load and unload workpieces.
Ultra-fast and efficient: The rigid structure design ensures high-speed and stable operation, with a fast production cycle time and an extremely high once reduction ratio, significantly enhancing production capacity.
As solid as a rock, stable and reliable: Excellent structural rigidity and carefully selected components ensure an extremely long service life of the equipment, stable operation performance, and a very low error rate.
Intelligent interaction: Humanized touch screen interface, real-time display of working status (running/stop), workpiece results (OK/NG) and production count, intuitive and convenient operation.
Data traceability: Measurement and weight removal data are fully exported, facilitating quality traceability and production statistical analysis.
