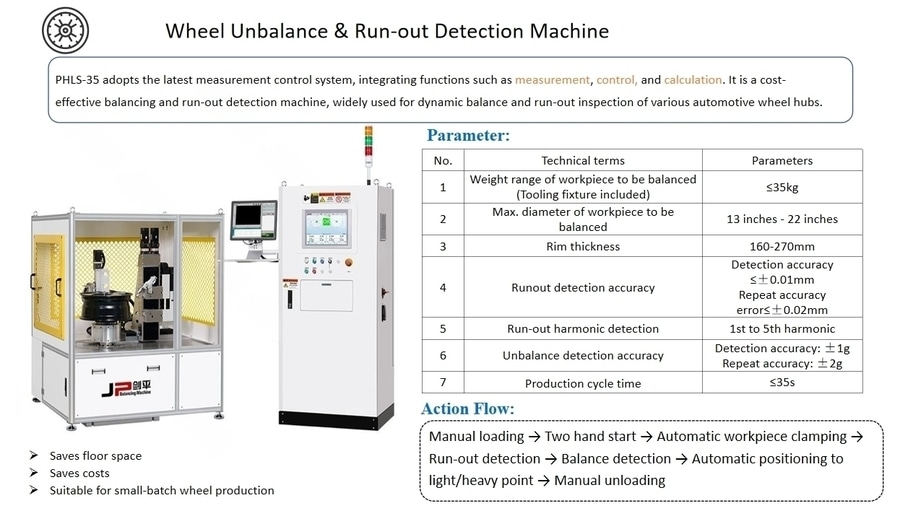

Are you looking for a reliable device that can not only accurately detect the radial and end face runout of the wheel rim, but also simultaneously complete the dynamic unbalance test? Shanghai Jianping PHLS-35, specially designed for the automotive wheel rim industry, makes quality inspection more precise, efficient and intelligent.
Why choose PHLS-35?
1) Dual measurement in one machine, comprehensive coverage
-- Radial runout detection: Accuracy ≤ ±0.01mm, repeatability error ≤±0.02mm, supports 1st-5th harmonic analysis
-- Dynamic unbalance detection: Accuracy ±1g, repeatability accuracy ±2g, hard-bearing measurement brackets, data is stable and reliable
2) Specifically designed for wheel rims, highly adaptable
-- Applicable wheel rim outer diameters: 13 - 22 inches
-- Max. workpiece weight: 20kg | Wheel rim thickness: 160 - 270mm | Center hole diameter: φ50 - 110mm | Offset distance: 0 - 60mm
-- Quick replacement of fixture and sensor positions, convenient for production changeover, flexible production
3) High efficiency cycle time, integrated into automated production lines
-- Production cycle time ≤ 35 seconds (including the entire process of clamping, measurement, positioning, and unloading)
Can seamlessly connect to the assembly line to achieve fully automated production
4) Intelligent human-machine interaction, extremely simple operation
-- Industrial touch screen, clear interface, parameter settings and measurement results are clearly visible
-- Automatic clamping → Automatic measurement → Automatic positioning of light/heavy points → Automatic release, one-click start, error rate is extremely low
5) Stable and durable, low maintenance cost
-- Self-developed measurement control system by Shanghai Jianping, PLC + measurement control unit front and back-end architecture
-- Robust equipment, high-voltage and low-voltage parts separation, suitable for harsh workshop environments
Wheel rim manufacturer - Enhance the factory pass rate and reduce customer complaint risks
Wheel rim after-sales market - Quickly detect the wheel rim's runout and balance status
Automotive component supplier - Meet the strict IATF16949 process control requirements of the original equipment manufacturers
Automation production line integrator - Achieve reliable connection and improve the overall production line cycle time
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd. has been deeply engaged in the field of dynamic balance technology for many years and possesses a complete series of balancing machine products with independent intellectual property rights. We have provided customized dynamic balance solutions for numerous well-known domestic and foreign automotive manufacturers and component suppliers. If you are interested in wheel rim balancing machines, please feel free to contact us.
