200 ton hydraulic workshop press

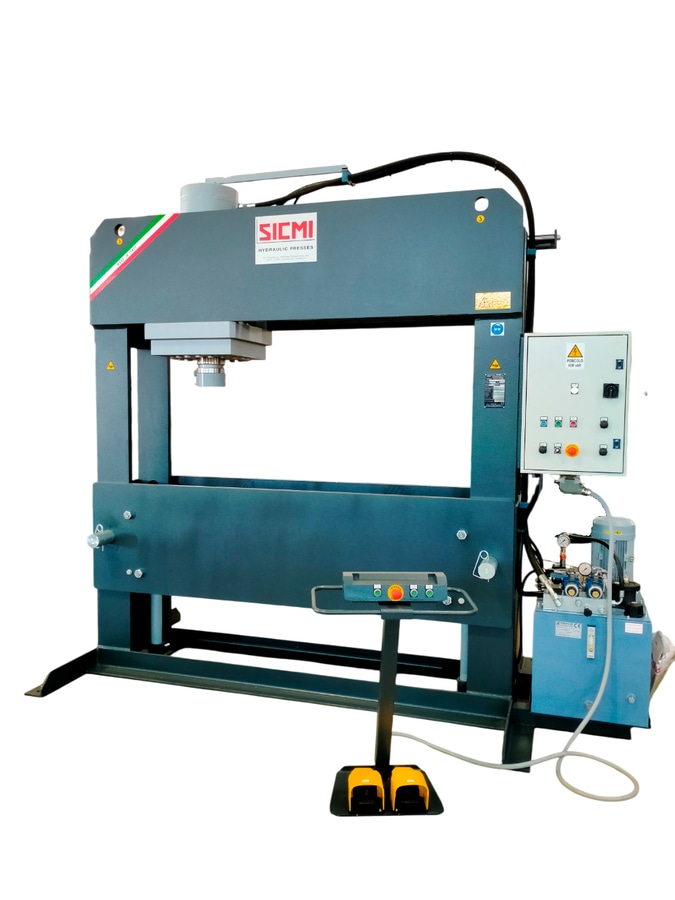

The 200-ton hydraulic workshop press, model PFF 200 MDA, is an extremely robust and versatile machine

The 200-ton hydraulic workshop press, model PFF 200 MDA, is an extremely robust and versatile machine, designed to perform deformation, bending, assembly and disassembly operations on even large mechanical components.

Its high-strength steel structure, with an open frame or “H” configuration, guarantees high rigidity and safety during use.

One of the main features of this model is the height adjustment of the lower table, or workbench, by means of a hydraulic motor. This system allows the operator to quickly adapt the distance between the cylinder and the table according to the height of the workpiece. the transverse displacement with a hydraulic motor of the cylinder.

Another feature that distinguishes this model is the lateral movement of the piston along the horizontal axis by means of the hydraulic motor. This feature offers greater flexibility in positioning the workpiece and is particularly useful when operating on elements of variable dimensions or not centered, facilitating alignment and improving the precision of operations.

The controls for this 200-ton hydraulic workshop press are located on a movable pedestal. There are two buttons on the pedestal to move the cylinder from left to right, and a pedal at the bottom to raise and lower the piston.

The distance between the columns is 2000mm, while the maximum vertical opening is 900mm.

Ideal for machine shops, overhaul centers and maintenance departments, this 200-ton press represents a powerful and adaptable solution for all your cold metalworking needs.
