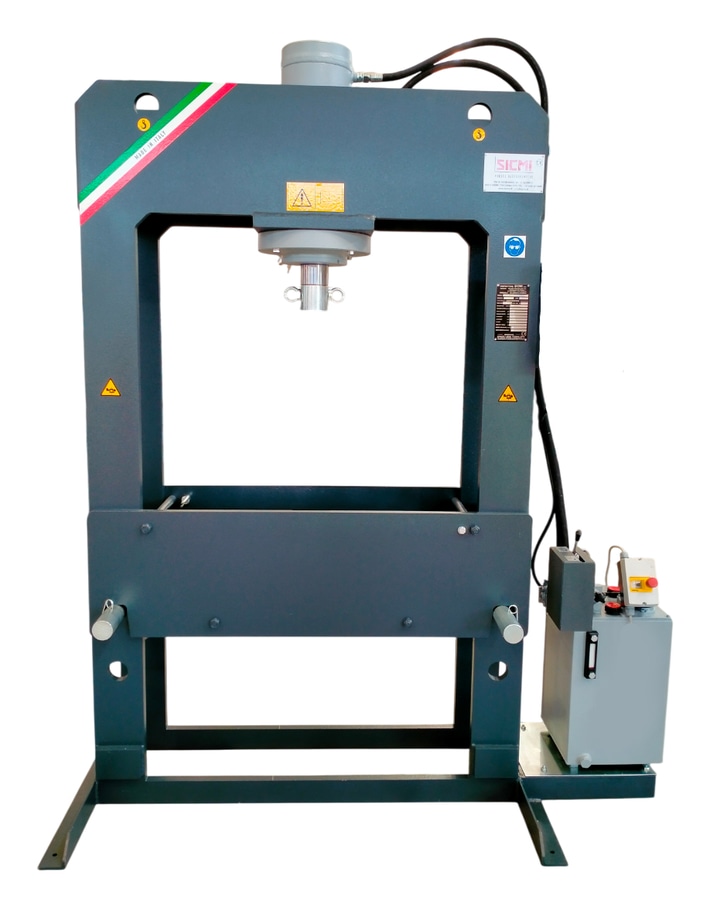

100 Ton H-Frame Hydraulic Press

The 100 ton H-frame hydraulic press, model PSS 100 L, is a machine designed to offer power, precision and safety in operations such as straightening, assembly and disassembly of mechanical components.

The 100 ton H-frame hydraulic press, model PSS 100 L, is a machine designed to offer power, precision and safety in operations such as straightening, assembly and disassembly of mechanical components.

With a pressing capacity of 100 tons, it is ideal for mechanical workshops that require a versatile and reliable press.

Its main features are an electro-welded steel structure, which guarantees high rigidity and stability during use.

The hydraulic cylinder stroke is 350 mm, with an approach speed of 9 mm/s and a working speed of 2 mm/s.

The control system involves the use of a single lever, compliant with CE safety regulations, given that the cylinder descent speed is below 10 mm/sec.

The hydraulic motor power is 2kW and the overall weight of this 100ton H-frame hydraulic press is 1030kg.

The work platform is height-adjustable via a chain connected to the hydraulic cylinder and is locked in the desired position via thick steel tubes that eliminate any unwanted movement.

The distance between the columns is 1050mm, while the maximum clearance between the stem and the work table is 900mm.

The hydraulic workshop press, model PSS 100 L, is suitable for a wide range of processes, ensuring efficiency and safety. Produced entirely in Italy, it represents excellence in the production of hydraulic presses, combining robustness, precision and compliance with safety regulations.
