200-ton hydraulic press for dismounting solid tires

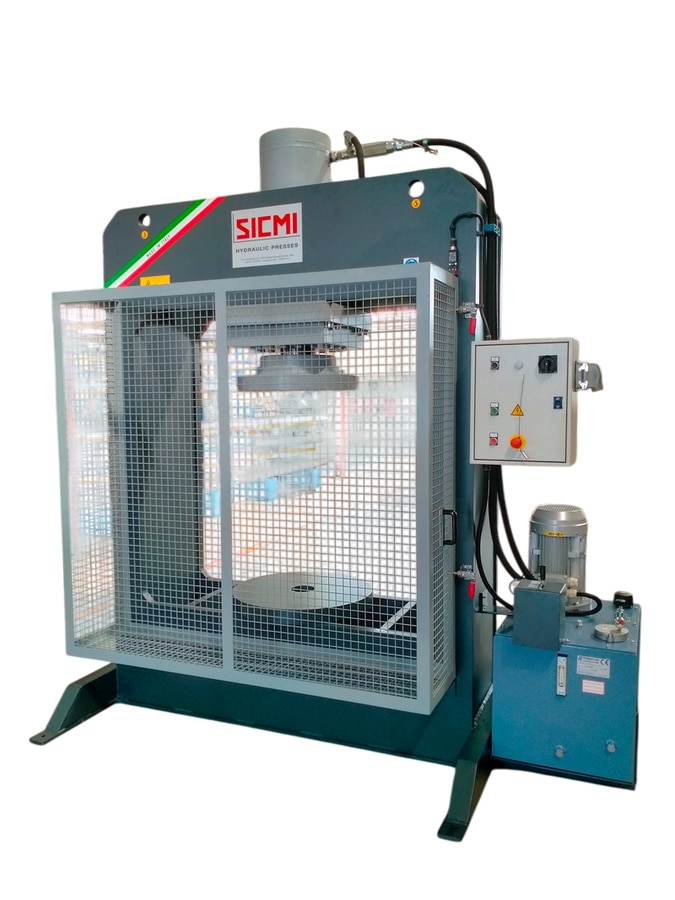

Maximum Efficiency in Removing Solid Tires with the PFC 200 G Hydraulic Press

If you're looking for a robust and reliable solution for demounting solid tires, the 200-ton PFC 200 G hydraulic press is the ideal solution. Designed to handle the most demanding challenges, this machine guarantees high performance and safety, making it an indispensable asset for workshops and industries operating heavy machinery.

Versatility and Industrial Applications
The PFC 200 G excels at removing solid tires up to 24 inches, covering a wide range of applications. Solid tires are not only a key component of forklifts, but are also used on numerous other agricultural and industrial machines. Imagine its usefulness in the maintenance of tractors, excavators, pressure washers, sweepers, and specialized machines for the forestry and construction sectors. Its versatility makes it perfect for companies managing diverse fleets, reducing downtime and optimizing operations.

Advanced Technical Features for Superior Performance
The heart of the PFC 200 G is its powerful hydraulic cylinder with a 500 mm stroke, which ensures a constant and controlled thrust. A large 600 mm diameter pressure plate is installed at the base of the cylinder, ensuring even pressure distribution on the tire, preventing damage and facilitating the demounting process.

Stability and ease of use are further enhanced by a 700 mm diameter circular support on the lower part of the structure. This is where the solid rubber is positioned before the pressing operation, ensuring perfect alignment and greater safety.

The press's dimensions are designed for maximum operability: with a distance between columns of 1500 mm and a maximum distance of 1000 mm between the cylinder rod and the bottom table, the PFC 200 G offers ample space to easily position and handle even large tires. This spaciousness reduces operator fatigue and increases overall efficiency.

Controlled Power and Speed
The press is powered by a 7,5 kW hydraulic power unit, providing the power needed to handle even the most stubborn tires. The cylinder speed is optimized to ensure both efficiency and precision: a descent speed of 22 mm/sec allows for rapid approach to the tire, while the working speed of 4 mm/sec ensures precise control during the actual pressing phase, minimizing the risk of errors or damage.

Safety first
Operational safety is a top priority for the PFC 200 G. The entire work area is protected by an openable metal mesh, designed to prevent accidental contact with moving parts. This mesh is equipped with state-of-the-art safety microswitches: the hydraulic piston can only descend when the mesh is fully closed. An additional level of safety is provided by the automatic cylinder stop system: if the metal mesh is opened at any time during the pressing process, the cylinder instantly stops, preventing potential injuries.

Investing in the PFC 200 G hydraulic press means choosing a machine that combines power, precision, and maximum safety, optimizing maintenance processes and ensuring the operational continuity of your machinery.
