70 Ton C-Frame Hydraulic Press

C-Frame Hydraulic Press, PCL 70 A: Maximum Efficiency for Metalworking

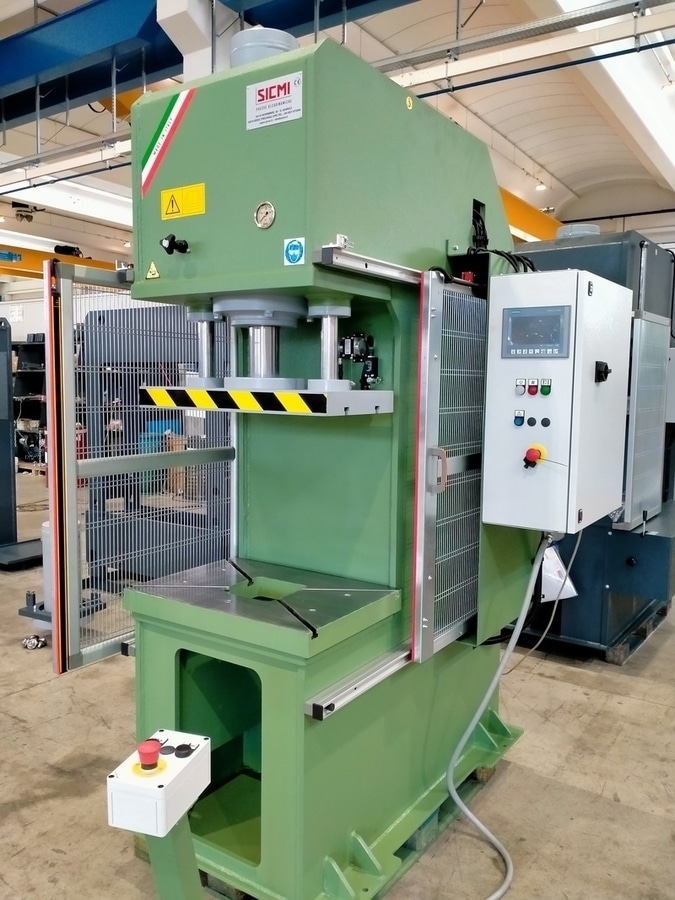

Our workshop is proud to announce the completion of production of the 70-ton C-frame hydraulic press, model PCL 70 A. This cutting-edge machine was specifically designed to meet the most demanding needs of the sheet metal and metalworking industry, ensuring precision, efficiency, and maximum safety. If you're looking for a stamping press, a deep-drawing press, or a press for metal disassembly and assembly, the PCL 70 A is the ideal solution.

Unmatched Versatility and Performance
The PCL 70 A is a versatile hydraulic press that excels in a variety of industrial applications. It is perfect for forming thin and thick sheet metal, achieving flawless and repeatable results. Its robustness makes it indispensable for straightening metal components and bending profiles and sheet metal with extreme precision. Furthermore, this press greatly facilitates the disassembly and removal of bulky metal components. Thanks to the large 200 x 200 mm opening in the lower table and the generous 340 x 580 mm frame base, large parts can be removed without difficulty. The press's distinctive C-frame design ensures easy access to the work area, optimizing loading and unloading times and improving overall productivity. This feature makes the PCL 70 A a highly efficient C-frame press for any workshop.

Advanced Technology for Total Control and Unbreakable Security
Operator safety is central to the PCL 70 A's design. The work area is protected by sliding metal mesh screens integrated with non-material barriers. This advanced safety system instantly stops the pressing cycle in the event of an intrusion, preventing accidents and ensuring a safe working environment. All operating parameters are fully managed via the intuitive Siemens KTP 700 digital control panel. This cutting-edge control system allows for precise adjustment of the hydraulic cylinder stroke (up to 500 mm), the upper table's down dwell time, the maximum working pressure, and alarm management. The Siemens KTP 700 offers the ability to save up to 100 work programs, an essential feature for optimizing production and ensuring maximum repeatability for each job series.

Efficiency and Durability Over Time
To ensure optimal performance and long life, the PCL 70 A is equipped with an air/oil exchanger. This essential component cools the oil in the hydraulic circuit, maintaining the ideal operating temperature and preventing overheating, even during prolonged work sessions. The hydraulic cylinder boasts a 500 mm stroke, a descent speed of 24 mm/sec, and a working speed of 5 mm/sec, ensuring rapid cycle times and production efficiency. The 4 kW hydraulic power unit provides the necessary power for all operations, ensuring smooth and reliable operation.

The 70-ton PCL 70 A hydraulic press is an excellent choice for those seeking a robust, precise, and safe metal press. Contact us today to find out how this press can transform your production!
