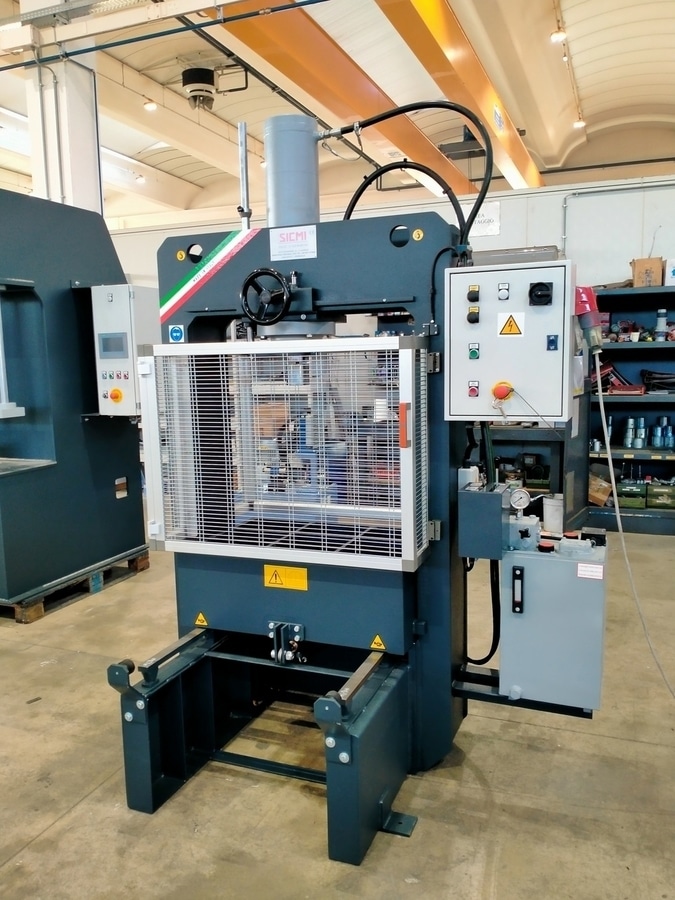

70-ton hydraulic press with moving platform

PBM 70 M 70-Ton Hydraulic Press: Power, Precision, and Safety for Your Workshop

If you're looking for a robust, versatile, and efficient machine tool for your machine shop, the PBM 70 M 70-ton hydraulic press with moving table is the ideal solution. Designed to excel in sheet metal straightening and a wide range of workshop tasks, this electro-hydraulic press is an excellent investment for streamlining production processes within any industrial facility. Whether for assembly, repair, or any other operation requiring precise pressing force, the PBM 70 M is the perfect choice for the mechanical engineering industry.

Maximum Safety and Ease of Loading with the Mobile Platform
One of the main features that makes the PBM 70 M hydraulic press a point of reference in the sector is its mobile platform and the attention to operator safety.

Heavy Duty Mobile Platform: The fully welded and surface-milled sliding table is designed to simplify loading of bulky and heavy materials. Using a crane, you can easily position engines, large components, or sheet metal on the table and then slide it smoothly under the cylinder to begin operations. This feature reduces physical effort and increases overall efficiency.

Integrated Operator Protections: Safety is a top priority. At the customer's specific request, the PBM 70 M was equipped with an opening front guard with a safety microswitch that immediately interrupts the cycle if it opens, and a fixed rear guard, ensuring maximum safety while using the press.

Power and Precision at Your Service: Technical Specifications of the PBM 70 M
The PBM 70 M electro-hydraulic press with mobile platform is an extremely powerful machine, capable of developing a force of 70 tons. This remarkable capacity makes it suitable for tackling even the most demanding jobs with ease.

Optimized Speeds: The cylinder descent speed of 20 mm/sec allows for rapid piston positioning, while the working speed of 2 mm/sec guarantees controlled and precise pressing, essential for delicate operations such as straightening sheet metal.

Control and Flexibility: The hydraulic cylinder has a 500 mm stroke, offering the flexibility needed to work on pieces of varying heights. The piston is moved, both upward and downward, by using a combined lever and button, a system that ensures optimal control for the operator.

Side Sliding Cylinder: Another advantage of this hydraulic press is the lateral movement of the hydraulic cylinder via a handwheel. This feature allows the piston to be positioned precisely where pressure is needed, without having to move the workpiece.

Choosing the PBM 70 M hydraulic press means investing in reliability, power, and innovation for your mechanical workshop, guaranteeing high performance in complete safety.
