20-ton hydraulic press with polycarbonate guards

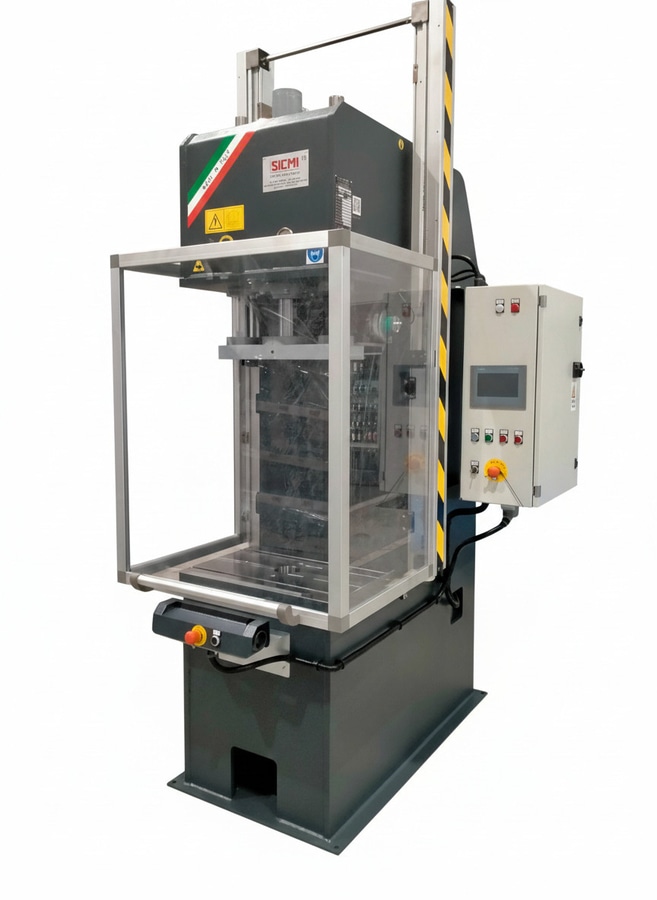

20-Ton Single-Column Hydraulic Press: Precision and Safety

The 20-ton single-column hydraulic press represents a cutting-edge solution for machine shops and production departments requiring versatility, power, and the highest safety standards. This model was designed to offer the perfect balance between high performance and ease of use, making it ideal for assembly, straightening, and stamping operations.

Advanced Safety and Optimal Visibility
One of the strengths of this press is the three-sided polycarbonate guard system. These barriers provide crystal-clear visibility of the work area, allowing the operator to monitor every stage of the pressing process without visual obstructions.

The guards are designed to ensure complete user safety, preventing injuries from accidental ejection of material. The guards can be raised and lowered manually and locked in place with a sturdy, ergonomic locking knob.

Technical Features and Worktops
The single-column structure is designed to maximize operating space. The table dimensions are generously sized to accommodate molds and components of various sizes:

Upper moving table: 520 x 180 millimetres.

Lower fixed table: 650 x 450 millimetres.

Both tables feature two T-slots, an industry standard for quick and secure tool attachment. Additionally, the lower table features a 90 mm center hole, essential for dropping or easily removing post-machining mechanical components.

With a maximum distance between the tables of 750 mm and a 250 mm recess, this machine allows you to easily position even large parts or complex molds.

Siemens Digital Performance and Control
The press is controlled by a digital system with a Siemens touchscreen, allowing the operator to monitor and manage the piston stroke and pressure applied. The interface allows:

Set all working parameters precisely.

Manage and view any alarms.

Save up to 100 different work programs, speeding up setup times for recurring productions.

The speed is optimized for maximum efficiency: the cylinder descends at a speed of 26 mm/sec and switches to a working speed of 9 mm/sec during the compression phase.

Reliability and Quality Components
To ensure long operating life, the press is equipped with an air/oil heat exchanger, essential for maintaining the hydraulic fluid at the ideal temperature even during intensive cycles. A decompression valve further protects the circuit from harmful overpressure.

The machine is controlled via a fixed push-button panel positioned on the front, which requires the simultaneous activation of the double buttons (two-hand control), in full compliance with current workplace safety regulations.

If you are looking for a hydraulic press, our technicians are at your complete disposal.
