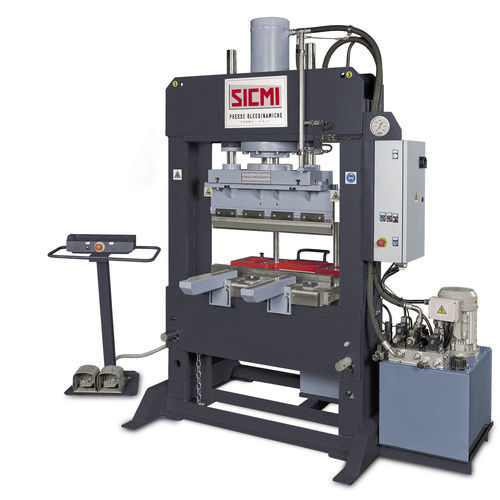

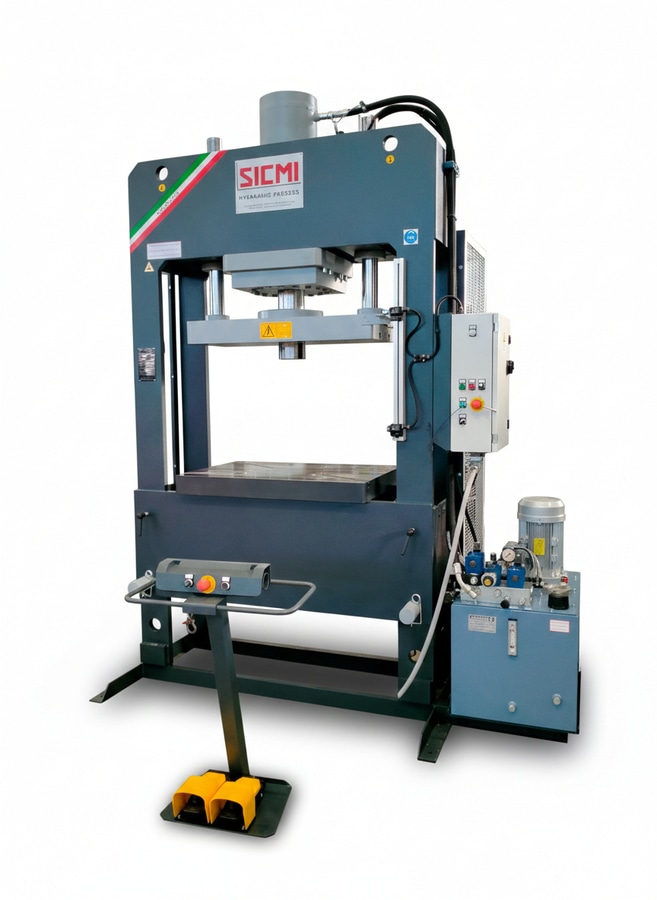

150 Ton Multipurpose Hydraulic Press – PSL 150

In the metalworking industry, the PSL 150 electro-hydraulic press stands out as one of the most versatile and efficient solutions for modern machine shops. This 150-ton electro-hydraulic press was designed to offer a single workstation capable of performing three fundamental operations: stamping, straightening, and bending.

Technical Features and Performance

This machine is not only powerful, but also extremely precise. The two-column structure made of milled and welded steel ensures superior structural stability, necessary to absorb high operating pressures without flexing.

Thrust force: 150 tons.
Approach speed: up to 20 mm/sec.
Cylinder stroke: 500 mm, ideal for parts of various volumes.
Worktable: 1200 x 700 mm, equipped with T-slots for quick mold mounting.

Versatility: From the Basic Model to the Complete

The strength of the PSL series lies in its modularity. The basic model is optimized for sheet metal stamping and straightening operations, thanks to the use of a dedicated punch. By upgrading to the full-featured model, the press becomes a true press brake thanks to the integration of a V-block, front supports, and a dedicated tool holder.

For those seeking maximum productivity, the automatic version can be equipped with the Siemens KTP 700 digital panel, which allows you to store up to 100 work programs and manage parameters such as the limit switches and cylinder dwell times with extreme ease.

Want to optimize your production with the PSL 150 press?
Contact us today for a personalized quote or to configure the machine to your specific needs.
