Hydraulic press with manually operated mobile gantry

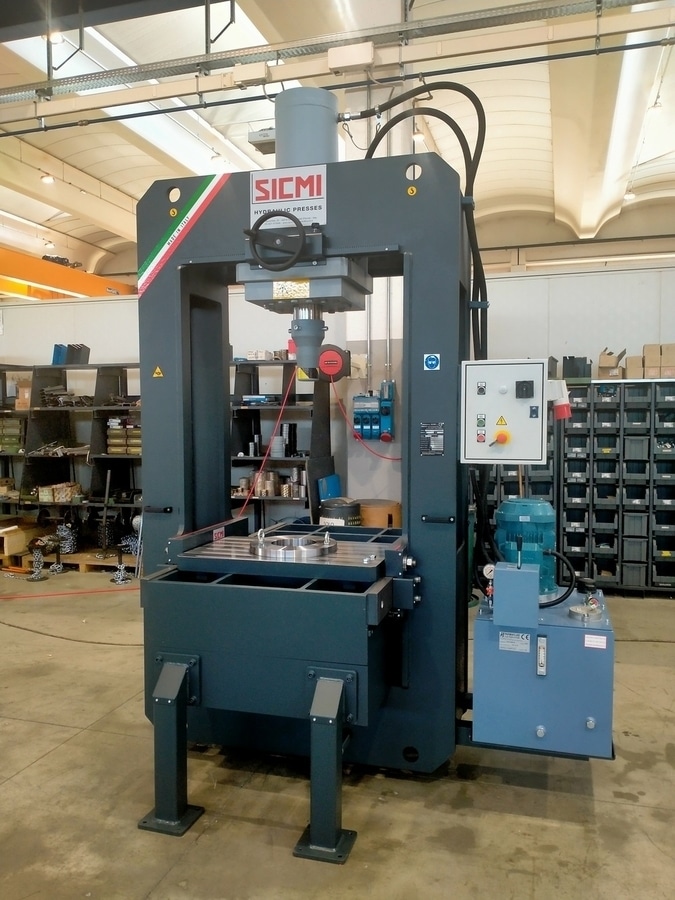

At SICMI, design doesn't stop at standard. We recently developed a manually operated hydraulic press with a mobile gantry, model PMH 150

At SICMI, design doesn't stop at standard. We recently developed a manually operated hydraulic press with a mobile gantry, model PMH 150 , created to meet a specific challenge in the industrial maintenance sector: the removal of large pins .

Honeycomb structure for maximum operability
To allow the expulsion of long and bulky components, the machine has been designed with a special honeycomb structure integrated into the base . The central part of this structure is larger than the rest of the bench and has a free opening of 360 x 360 mm , specifically designed to provide the necessary relief during pressing operations and allow the pin to emerge vertically without interference .

Millimeter precision with milled plate and reducers
To optimize efficiency in the disassembly process, we have equipped the hydraulic press with the following equipment:

A removable plate with a fully milled surface to ensure perfect flatness when pushing .

A set of 5 interchangeable circular reducers , which allow the drain hole to be adapted to the specific diameter of the pin to be removed, ensuring stability and safety for the operator .

Technical features of the PMH 150 press
This hydraulic press with manually operated mobile gantry offers not only customization, but also high-level performance :

Thrust power: 150 Tons

Total flexibility: Mobile table with width 900x1610 mm and cylinder that can be moved laterally via a manual handwheel (500 mm of movement) .

Controlled Speed: Dual hydraulic speed with rapid approach at 22mm/sec and working speed of 3mm/sec for maximum precision .

Clearance between columns: 1030 mm, ideal for large workpieces .

This achievement confirms SICMI's ability to listen to the needs of professionals, transforming a mechanical necessity into an efficient, safe and rigorously Made in Italy technological solution .
