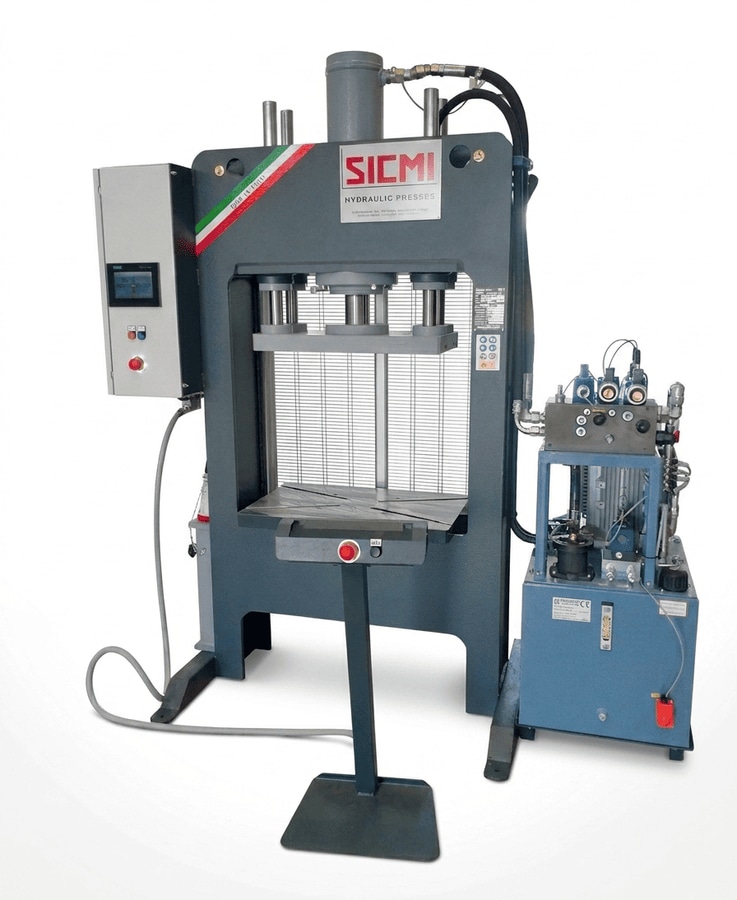

60 Ton Hydraulic Press for Rapid Molding

SICMI announces the completion and testing of a new MST series hydraulic press, designed to ensure maximum efficiency and extremely high precision in rapid stamping and sheet metal working processes.

The constant pursuit of technological excellence has guided the development of the MST 60 model , a double-column hydraulic press with a power of 60 tons . This solution represents the ideal choice for companies in the manufacturing sector that need to combine high operating speed with intensive production cycles, while maintaining rigorous safety standards .

The technological heart of the machine is a 7.5 kW Rexroth hydraulic power unit equipped with monitored solenoid valves , which allows for a positioning speed of 120 mm/sec and a working speed of 8 mm/sec . The solid H-shaped structure features a distance between the uprights of 900 mm , a large lower table with 800x500 mm T-slots and a 700x350 mm mobile upper table , optimizing setup times for different types of molds.

Cutting-edge Specifications and Digital Control
The press integrates cutting-edge digital solutions for modern industry :

Race and Light: Cylinder stroke of 500 mm with maximum light between the plates of 600 mm .

Siemens Interface: MTP 700 Basic touchscreen display for digital programming of up to 100 programs . Allows you to manage ascent and descent rates, decompression times and pressure maintenance .

Millimetric Precision: Pre-stop system with 0.1 mm accuracy via encoder reading and pressure transducer .

Security: Rear mesh safety barriers, two-hand control and CE certification (Annex IV) .

Entirely designed and manufactured in Italy at the Sissa Trecasali plant in the province of Parma, the 60-ton hydraulic press for rapid stamping, model MST 60, embodies the quality of "Made in Italy" applied to industrial automation. With this system, SICMI confirms its leadership in the supply of advanced and customized hydraulic presses .

Are you also looking for an electro-hydraulic press for your workshop?
Contact our offices for a completely free, personalized consultation.
