FSP500-50FDB – 500W 80 Plus Gold industrial PC power supply for 1U servers and automation

Compact industrial PC power supply for 1U chassis

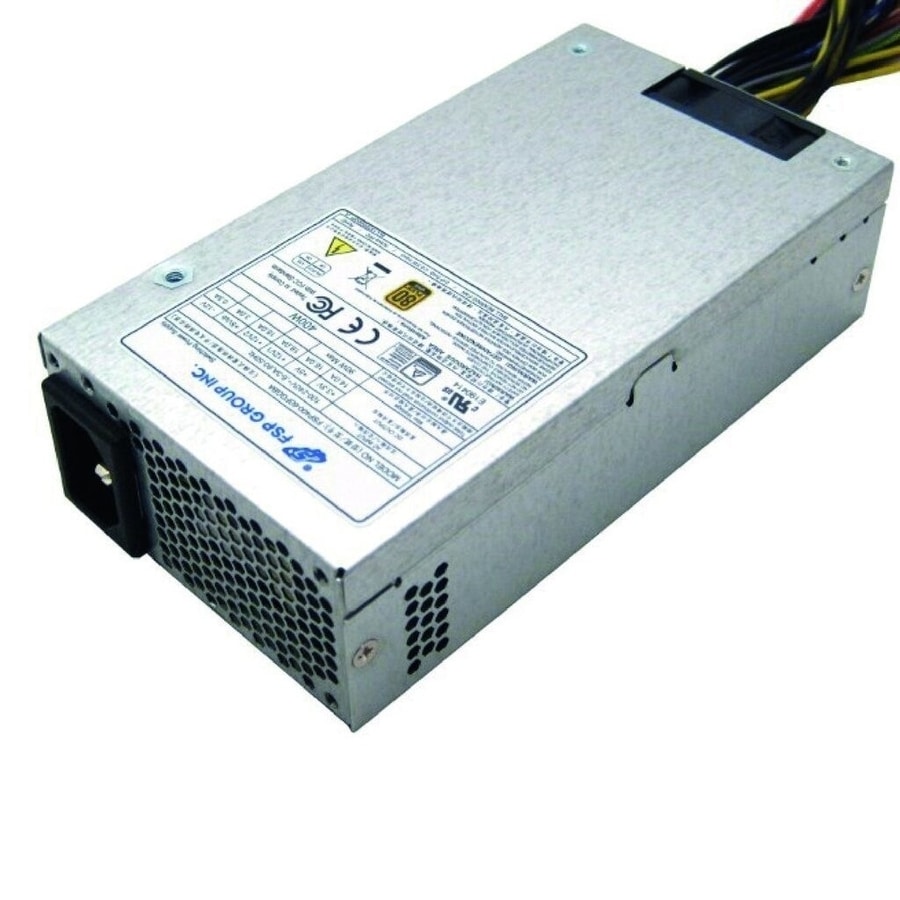

The FSP500-50FDB power supply is a compact 500W switching power supply with an active PFC circuit and full range 90-264Vac input, designed as an industrial PC power supply for 1U servers, communication systems and automation.
It delivers 80 Plus Gold efficiency level (87–90–87 % at 20 / 50 / 100 % load) and low ripple and noise output on all rails, reducing heat and improving system stability.
The PSU offers multi output 3.3V 5V 12V -12V 5Vsb rails with tight regulation, plus over voltage protection, short circuit protection and over power protection to safeguard connected equipment.
A monitored power good signal, internal 40 mm fan cooling and a wide operating temperature range from 0 °C to 50 °C ensure reliable 24/7 operation in dense 1U chassis.
With MTBF 100000 hours reliability and EMI performance that is FCC CISPR22 Class B compliant, the FSP500-50FDB simplifies global deployment of industrial and server platforms.
The FSP500-50FDB is an industrial-grade AC-line power unit that packs 500 W of continuous output power into a 1U form factor. Designed for servers, communication gear and automation controllers, this 500W switching power supply delivers high efficiency, robust protections and excellent EMC performance in environments where downtime is not an option.
