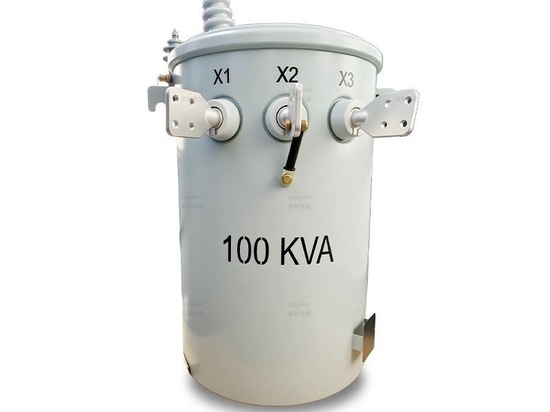

Single Phase Pole Mounted Transformer – 10-333 kVA, ANSI Standard, Oil Immersed, 34.5 kV to 120 V, Overhead Distribution Transformer for Utility & Commercial Applications

Single Phase Pole Mounted Transformer – 10-333 kVA, ANSI Standard, Oil Immersed, Overhead Distribution for Utility & Commercial

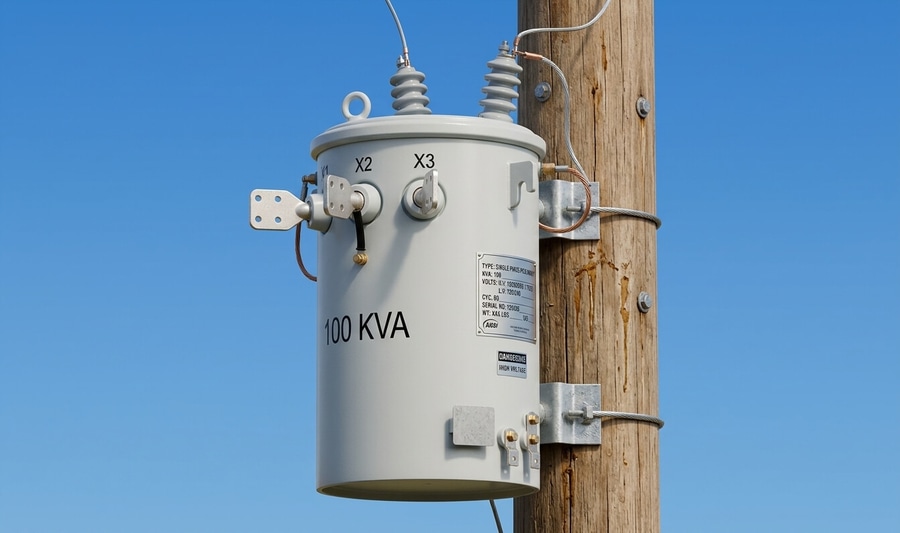

This ANSI standard, oil immersed single phase pole mounted transformer is engineered for reliable outdoor service on overhead lines. Built with a fully sealed tank for strong environmental adaptability and long-term stability, it provides flexible ratings from 10 kVA to 333 kVA (customizable). Primary (HV) voltage is customizable from 7,200 V to 34,500 V; secondary (LV) voltage from 120 V to 600 V. High-quality copper windings and an excellent iron core deliver high efficiency (98.7%–99.43%) with low losses (no load: 36–500 W; load loss: 120–2500 W). Standard features include HV/LV bushings, high voltage lightning arrester, pressure relief valve, cover band/cover assembly, lifting lugs, copper ground strap, and nameplate. Widely used for urban power distribution, power grids, construction sites, and event venues requiring dependable single-phase power.
