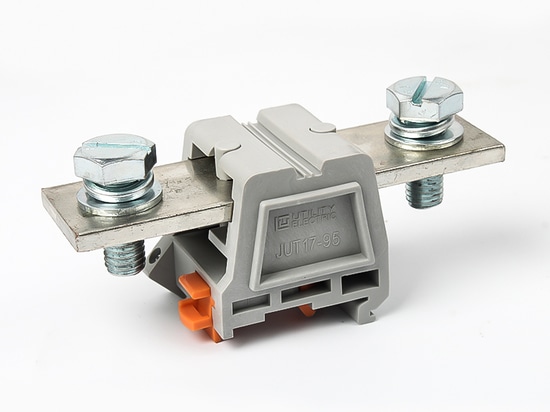

OT end Wires/Busbar Connecting Terminal Blocks

JUT17 Series DIN rail-mounted TB for wires or busbar

This series of products use screws to connect OT/SC terminals to complete the connection between wires, which is applied to connect large cables with high current. It can be used in low-voltage power transmission, industrial power distribution, and construction wiring.

It also can connect to flexible busbar directly for high current and voltage.

Connection capacity: 10~25mm2, 20~50mm2, 50~95mm2, 95~150mm2, 150~240mm2
Rated Current: 100A/ 150A/ 200A/ 275A/ 400A
Rated Voltage: 1000V
Size of DIN rail: NS35/7.5
Material: Conductor: Copper plated with Nickel
Screw: Steel
Housing: Nylon (PA66) V0 (UL94)

More information

OT end Wires/Busbar Connecting Terminal Blocks

Details

1759 Zhong Shan Bei Lu, Putuo Qu, Shanghai Shi, China

Utility Electrical Co., Ltd
