UWT Level Switch Ensures Reliable Detection in Chemical Tank Trucks

Robust sensor solution for aggressive media under tropical operating conditions A chemical and fuel trading company operating a port storage facility in the Dominican Republic was looking for a reliable solution for level limit detection

The goal: to automate the filling process, eliminate manual inspections, and protect personnel from direct contact with sulfuric acid (H₂SO₄).
---------------------------------------------------------------------------------------------------------
REQUIREMENTS AND ENVIRONMENTAL CONDITIONS
- The application presented several challenges.
In addition to the strongly corrosive sulfuric acid, the local environment is characterized by tropical temperatures around 30 °C (86 °F) and humidity levels of about 80 % throughout the year.
This combination of aggressive chemicals, condensate formation, and high corrosion stress requires a measurement solution that is chemically resistant, climate-proof, and low-maintenance.
--------------------------------------------------------------------------------------------------------
SOLUTION: CAPACITIVE LEVEL LIMIT SWITCH RFNIVO® 8200
- To meet these requirements, the company selected the RFnivo® 8200 from UWT.
The robust rod version with a 250 mm (9.8 in) probe made of stainless steel 1.4404 (316 L) and a PFA coating provides maximum resistance to sulfuric acid and other corrosive liquids.
Depending on the specific application, high-alloy stainless steels can be used, and FFKM seals are recommended for superior chemical resistance.

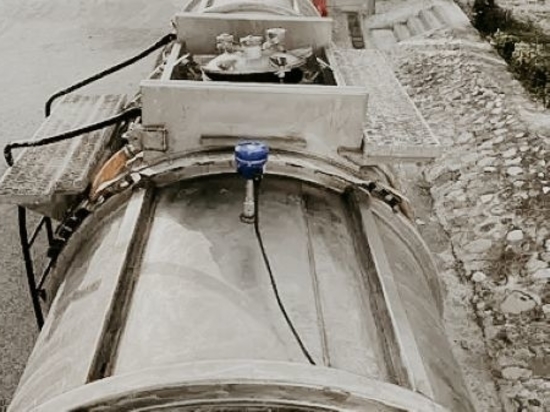

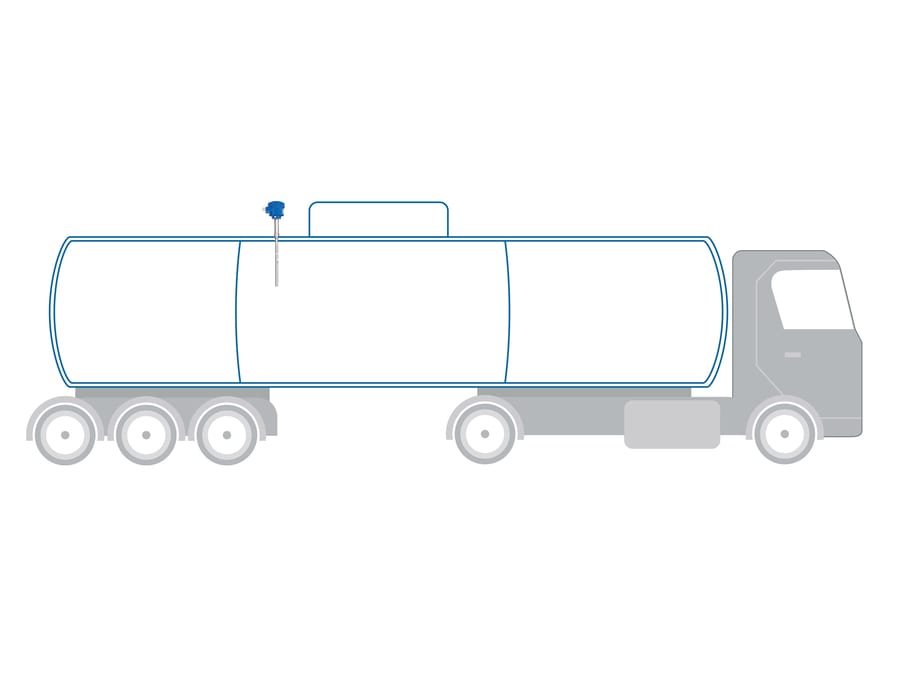

The sensor was mounted vertically from the top of the tank trucks to reliably and maintenance-free detect the maximum fill level.
During installation, care was taken to minimize direct impacts from filling streams, which helps to avoid false switching caused by splashing or surging liquid movement.
---------------------------------------------------------------------------------------------------------
RECOMMENDED SETUP
For reliable level detection of H₂SO₄ in chemical tank trucks, the following configuration has proven effective:
-------------------------------------------------------------------------------------------------------
To read the complete article, please follow the Link: (More Information)

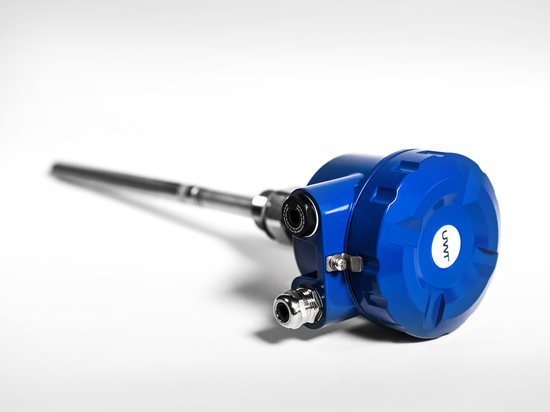

RF 8200 in robust rod design with PFA-coated stainless steel probe for maximum resistance to sulfuric acid

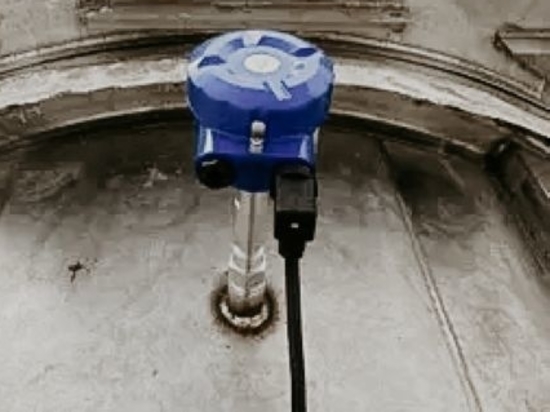

Mounted on top of the truck tank – for precise, maintenance-free maximum level detection without false signals from splashing liquid
