Affordable MWIR InAsSb detection module

VIGO System offers the smallest on the market, environmentally friendly MWIR detection modules with the overall chip dimensions of 10 x 10 x 3 mm.

VIGO System offers the smallest on the market, environmentally friendly MWIR detection modules with the overall chip dimensions of 10 x 10 x 3 mm. Affordable detection modules are based on InAsSb semiconductor material which means no more mercury or cadmium, resulting in a RoHS compliant device.

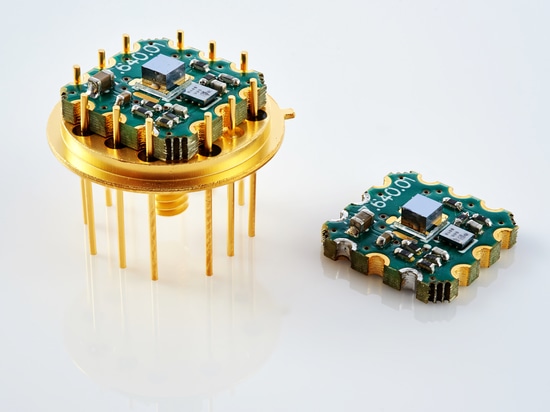

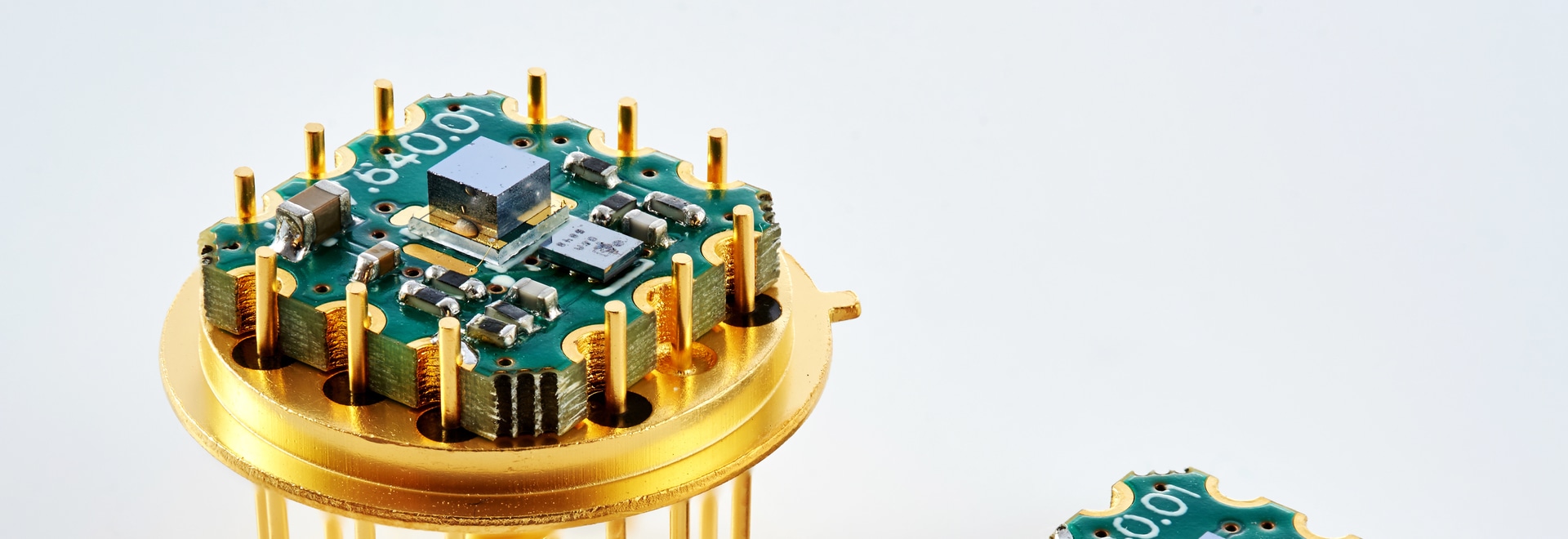

AM03120-01, Affordable MWIR InAsSb detection module, is an ”all-in-one” uncooled IR detection module in a compact TO8 package. Photovoltaic mutiple junction InAsSb detector element is directly integrated with a low-noise preamplifier. Amplified analog output may be connected directly to the measurement equipment. Through-hole mounting is possible.

The detection module is supplied with an anti-reflection coated window preventing unwanted interference effects. The final product can be offered as an OEM component (only PCB with detector element), mounted on a TO8 sumbount or mounted and sealed in a TO8 package with a window.

Technological possibilities of VIGO System allow for the production of InAsSb (indium arsenide antimonide) detectors, using modern methods of MBE (Molecular Beam Epitaxy) epitaxy. Affordable detection modules are designed for applications where higher resistance to harsh operating conditions must be ensured. InAsSb modules are compliant with the RoHS directive, which means our products ensure the consumer market safety! The affordable price is a strong advantage along with the highest quality materials.

The modules are easy to use thanks to:

- signal already amplified, voltage output,

- availability on a standard submount (TO8),

- availability for a direct mounting onto user’s PCB (OEM version),

- small size.

InAsSb photovoltaic detectors are used in the following applications:

• MWIR spectroscopy (gas, liquids and solids analysis)

• Temperature measurement

• Laser metrology

• Monitoring of industrial and laboratory processes

• Laser power monitoring and control.

More information about product availability: sales@vigo.com.pl
