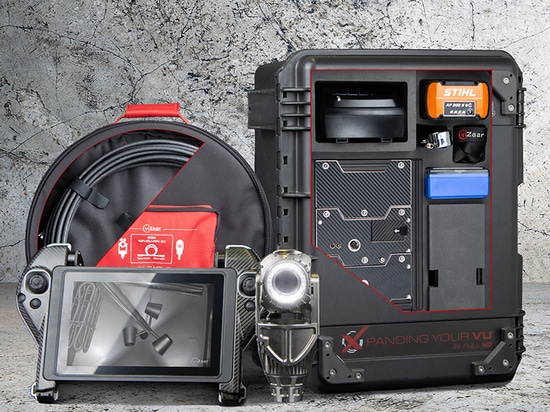

The next-generation industrial camera for inspections without compromise
The next-generation industrial camera for inspections without compromise. Durability, image accuracy, and integrated documentation to transform your #NDT inspections.
In a world where equipment reliability is critical-whether it's aircraft turbines, underwater pipelines, or nuclear facilities—visual inspection must be both fast and flawless. The INVIZx98 meets these challenges with a unique combination of optical performance and an intuitive documentation platform, ensuring that every defect is detected and irreversibly archived.
Key Features and Specifications
The strength of the INVIZx98 Ti/45 lies in its balance between rugged design and advanced imaging capabilities. Its space-grade titanium body offers waterproofing to a depth of 45m (60m option) and withstands extreme temperatures, while the Panasonic Full-HD CMOS sensor captures uncompressed video and lossless PNG images, even at as low as 0.125 lux. The system also includes:

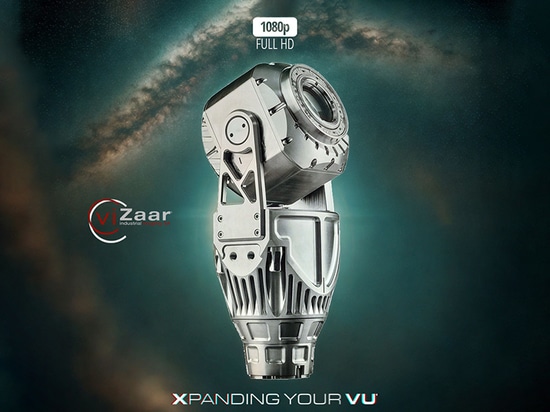

The INVIZx98 camera head
A 10× optical zoom and a variable field of view from 68° to 6°, allowing for instant switching from an overview to precise observation of the smallest details.
A minimum focal length of 10 mm, enabling clear and detailed inspections at very short range-ideal for confined or hard-to-reach environments.
Standard waterproofing to a depth of 45 meters (4.5 bar / 65 psi), optionally extended to 60 meters, for inspections under prolonged immersion or in pressurized environments.
Continuous 360° rotation in just 4 seconds, ensuring complete visual coverage without manual repositioning.
High-intensity LED lighting, consisting of two adjustable white modules up to 2,000 lumens (with Boost mode activated), for optimal illumination even in dark environments.
Optional 365 nm UV and Dual Laser modules are available for specific inspection needs (fluorescence, surface contrast, etc.).

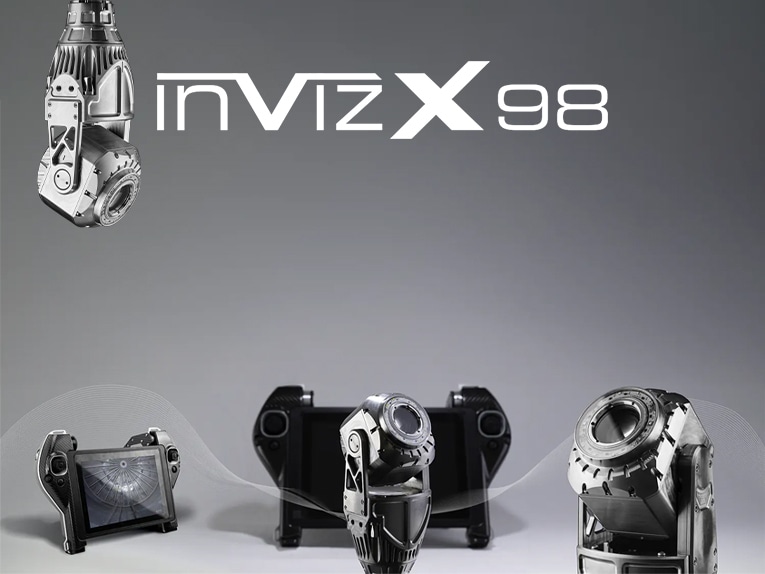

VUnit Control Display
10.1” IPS Full-HD capacitive touchscreen, perfectly readable even in direct sunlight thanks to its 850 nits brightness - ideal for outdoor use and in bright lighting conditions.
Intuitive user interface with icon navigation, joysticks, direct access buttons, and a control dial - for fast, precise, and fatigue-free operation.
Native 1920×1200 px display, without cropping or compression, ensuring faithful reproduction of inspection details.
Modular construction in 5 independent blocks, allowing for quick on-site maintenance and replacements without specialized tools.
HDMI port for uncompressed video streams, compatible with remote collaboration solutions, real-time analysis, and integration into AI systems.
Ultra-lightweight design in aluminum-carbon composite, ensuring portability, robustness, and comfort during extended use.
VUcase Standalone Control Case
All-in-one control station integrating power, storage, and video interface - ideal for inspections Mobile in the field or in confined spaces.
Operation is possible even with the case closed, with IP53 protection in horizontal position, ensuring continuous inspection in rain, dust, or harsh conditions.
Uninterrupted power switching between battery and mains, with up to 8 hours of autonomy-for extended missions without logistical constraints.
Integrated HDMI interface, ensuring live transmission of uncompressed video streams to remote monitoring, analysis, or collaboration systems.
Remotely operated inspections, real-time image processing, and automated reporting.
Robust and terrain-proof structure, designed to withstand shocks, humidity, and extreme operating conditions (marine, nuclear, rail, etc.).
Non-Destructive Testing Applications
Imagine a railway engineer needing to examine the inside of an axle at the start of service in near-zero light: with the INVIZx98 Ti/45, a single pass is all it takes to visualize the smallest micro-cracks, without the need for additional spotlights. In the sector For oil tankers, it's the invaluable tool for underwater inspections: its compact size (less than 100 mm in diameter) and corrosion resistance ensure easy access to difficult areas, allowing for the detection of weaknesses before they become critical.
User Experience and Software Integration
The heart of the system, the 10.1" touchscreen VUnit, works perfectly with gloves: joystick controls, icon-based menus, and haptic feedback simplify navigation. DualCapture mode allows you to freeze a high-resolution image while continuing video recording, without interruption.
On the software side, a documentation platform centralizes videos and images, offers annotation tools, and generates standards-compliant reports in just a few clicks. MP4 and PNG exports are directly usable.
