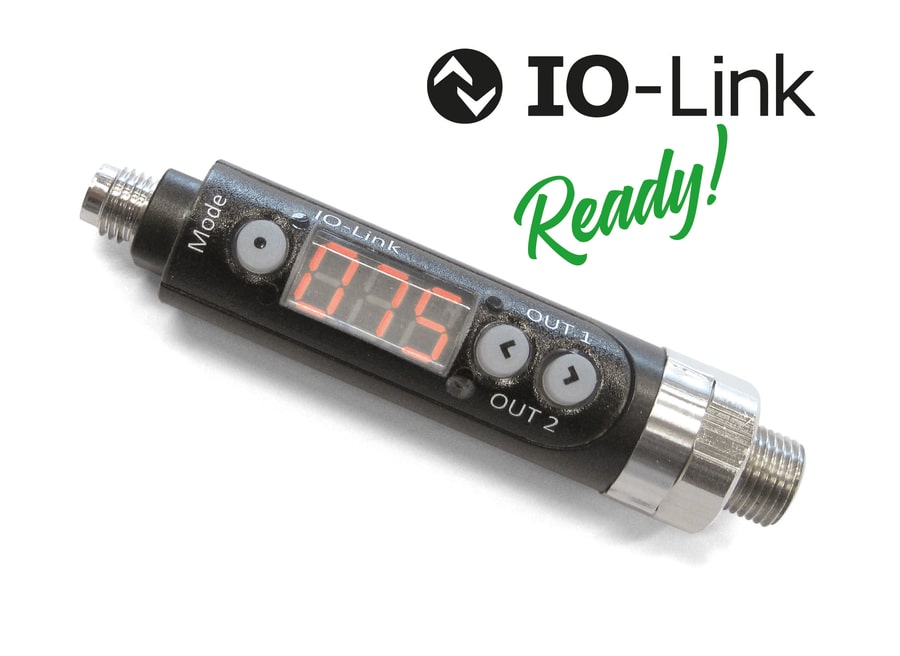

Digital IO-Link vacuum and pressure switches

IO Link Ready

- Physical characteristics: Robust ABS housing, compact and lightweight; mountable on machinery and near the point of use.
- Precision and display: Calibrated and temperature-compensated; integrated display shows values, making an external vacuum gauge unnecessary.
- Signal indication: Two LEDs indicate the status of the two independent digital output signals.
- Programming: Switching points and hysteresis (0–100% of set value) programmable via buttons. Also configurable: threshold comparison, NO/NC contacts, unit selection, parameter lock, and display inversion.
- Display rotation: Free rotation to orient the display without disconnecting pneumatic connections.
- Connections: Pneumatic with double-threaded G 1/8 inch male or
M5 female; electrical M8 4-pin (PUR cable with axial or radial connector available on request).
- Applications: Measurement and control of dry air and non-corrosive gases; ideal for safety signals, cycle start, vacuum suction cup control, and optimizing energy consumption of vacuum generators.
- IO-Link: IO-Link version distinguishable from the standard model by the logo and the “IO-Link” inscription on the housing. Enables bidirectional digital communication, remote parameterization, and advanced diagnostics, turning the sensor into an intelligent device for Industry 4.0.
