ILT Food

Level Indicators ILT Food: Certified Level Control for Powders and Granules in Food Processing

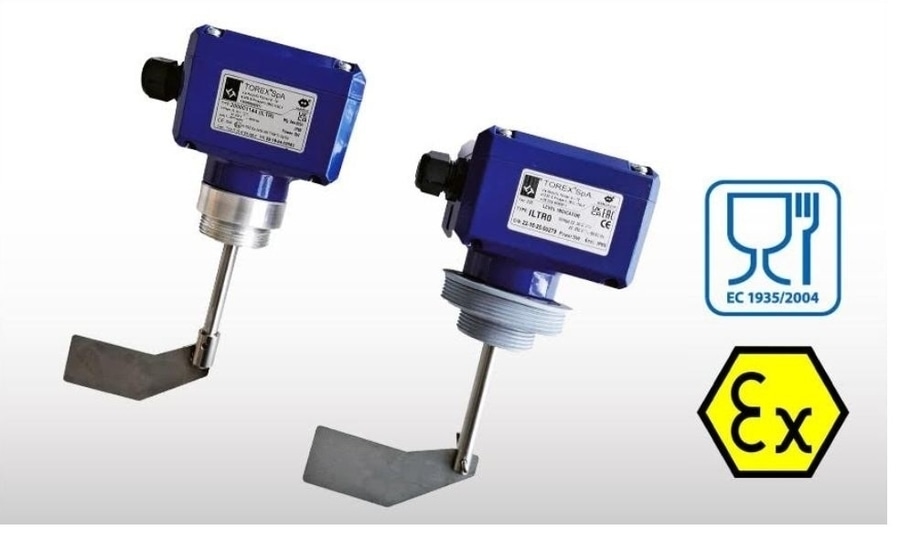

The ILT Food Level Indicator is the food-grade evolution of the TOREX® rotary level
indicator. Designed for hoppers and silos, it provides a repeatable ON/OFF signal at
minimum and maximum levels.
Why ILT Food Makes the Difference
 Food-Certified: The EC 1935/2004 version with IP65 protection is engineered to
eliminate product build-up zones. Threaded connections comply with food-contact
requirements.
 Dust-Safe Operation: EX II 1/2D (ta/tb IIIC T100 °C) version available on request.
 Easy Integration: Relay interface for PLCs or alarms, with robust and reliable
ON/OFF logic.
How It Works in Practice
The rotating paddle detects product presence; torque reaction stops the motor and triggers
the relay. When the level drops, the system automatically restarts. The operation is binary,
stable, and easily diagnosable — ensuring dependable level control over time.
Versions and Compliance
 ILT Food: EC 1935/2004, IP65, EX II 1/2D; current release without shaft extensions.
 ILT Standard / ATEX: Same working principle, compatible paddle and shaft
accessories, dedicated ATEX configuration available.
Typical Food Industry Applications
Sugar, flour, starch, semolina, powdered or granular ingredients, and additives requiring
minimum/maximum level detection under hygienic conditions.
Key Specifications
 Connections: G 1½”, G 2½”, 1¼” NPT (Standard / ATEX)
 Connection Material: Plastic (Standard / ATEX), Aluminium (Food)
 Temperature Range: Ambient –20 ~ +60 °C; Process –20 ~ +80 °C
 Maximum Pressure: 0.8 bar
 ATEX Rating: II 1/2D Ex ta/tb IIIC T100 °C Da/Db (on request)
Options & Accessories
 Threaded bushes (adaptors)
 Double paddle for light materials (Standard / ATEX)
 Shaft extension (Standard / ATEX only – not available for ILT Food)
