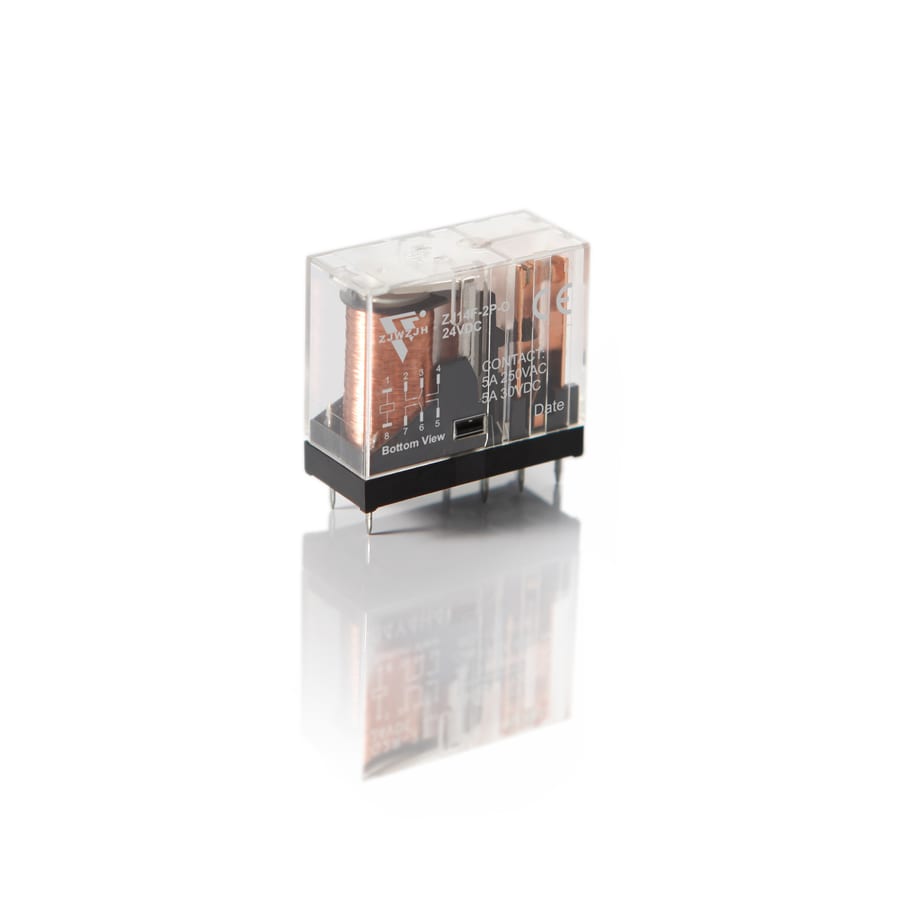

WENZHOUJINHONG Miniature High Power Relay

ZJ14F-0

14F Miniature PCB Power Relay
Features:
Miniature size 20mm
PCB mounting;
insulation:5kV/8mm;
Switching capacity:5A/10A;
General purpose, Industrial electronics;
Low coil power consumption;
Characteristics:Operating time(at rated voltage) ≤20ms;
Release time≤10ms;
Ambient temperature(at rated voltage)-40 C~+70 C;
Coil power(DC: ~0.5W ; AC: ~0.9VA);
Inside protection (IEC 144) :Ip67;
Working class type of service:C/Continuous;
Welding temperature :260 C. Max;
Insulation resistance≥1000MΩ;

More information

Details

Wenzhou, China, 325600

Wenzhou Jinhong Electrical Appliance
