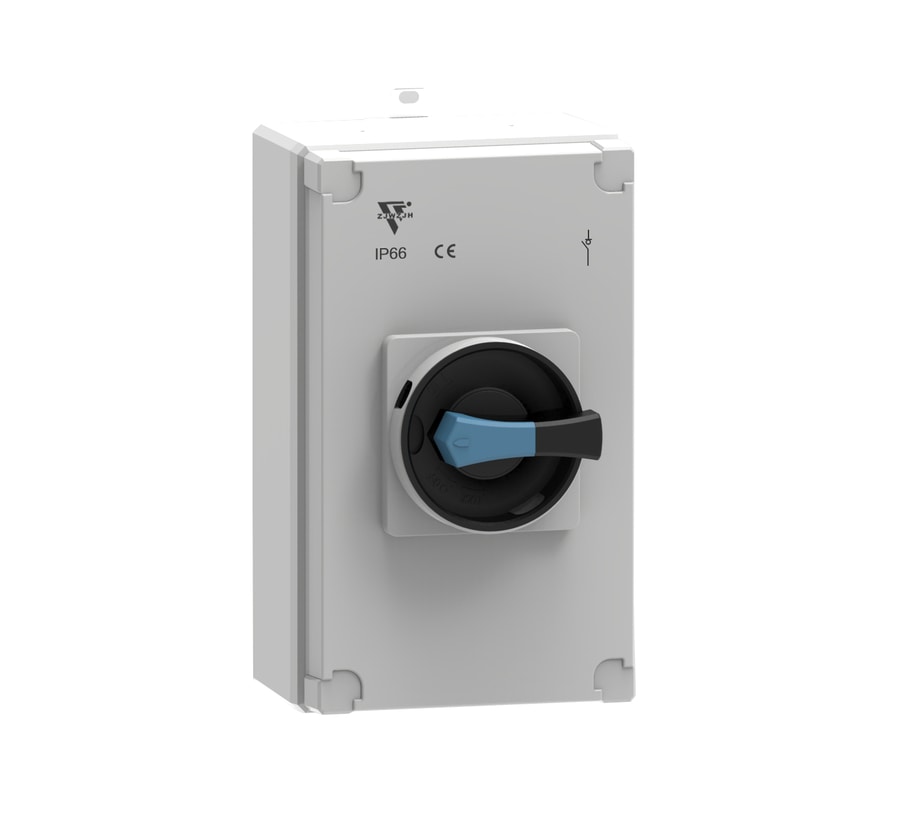

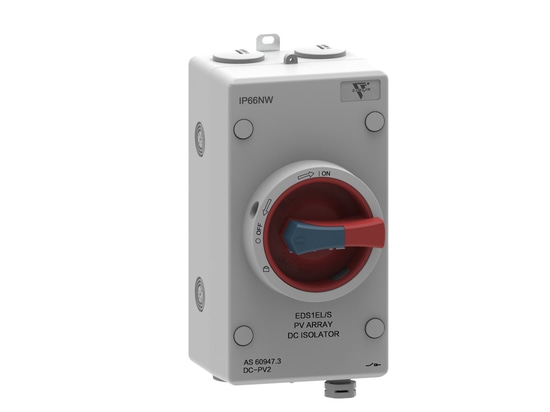

WENZHOU JINHONG DC ISOLATION SWITCH

EDS1/S Series EL Isolator(DC1200V)

Product Benefits
UV resistance and V0 flame retardant material
Contact Silver Plating, silver layer thickness up to the industry's highest standards
Arcing Time in 3 ms
No Polarity
Lockable at OFF position
IEC/EN60947.3 standard and AS 60947.3
Five years warranty
IP66 degree of protection
EDS1 series isolation switch is suitable for a power system with rated voltage DC
1200V or below and rated current 32A or below. The product can be used for
infrequent switching-on and switching-off and can disconnect 1 - 2 MPPT lines at
the same time. It is especially suitable for isolating lines in HVDC transmission and
distribution systems, such as cutting off the high voltage DC current between solar
panels and inverter

WENZHOU JINHONG DC ISOLATION SWITCH

Details

  • Wenzhou, Zhejiang, China
  • WENZHOU JINHONG ELECTRICAL APPLIANCE CO., LTD
