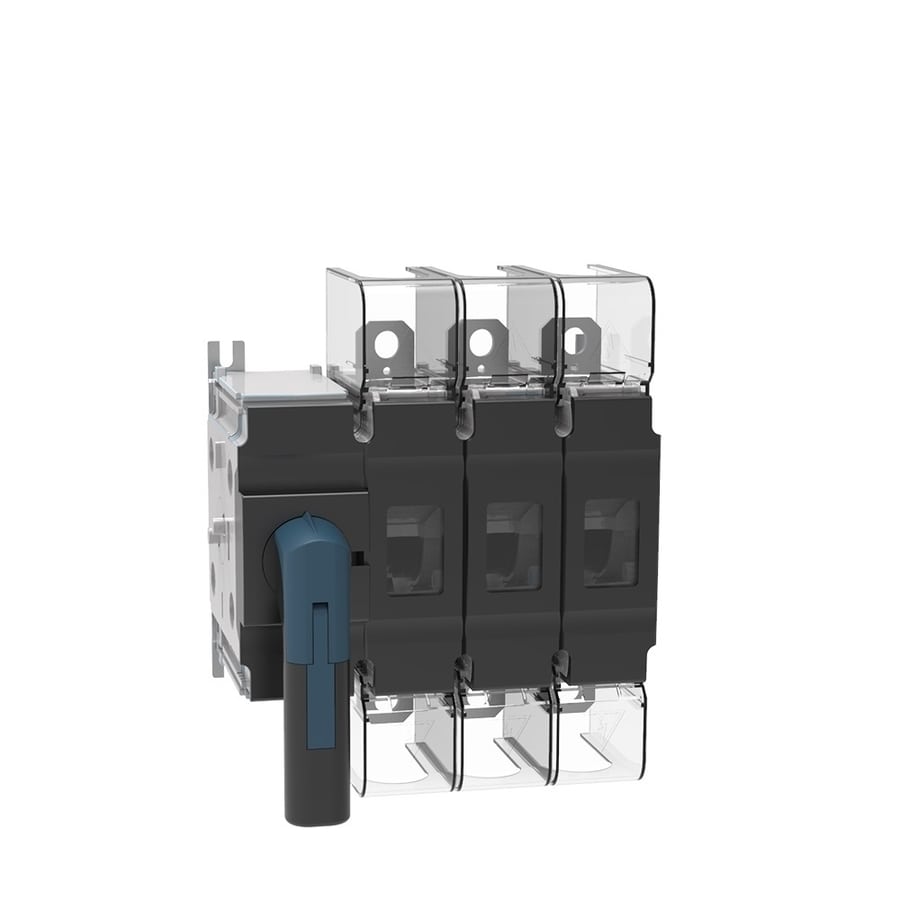

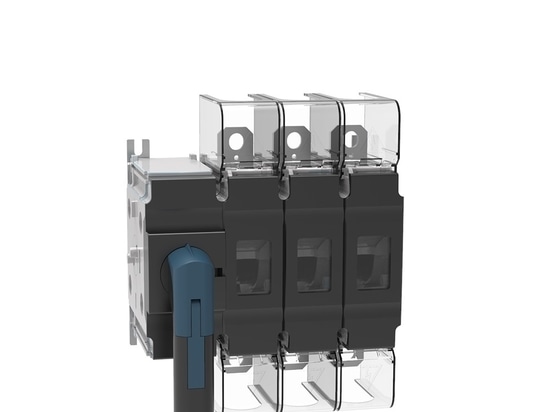

EHA High Voltage AC Disconnector
AC Isolation Switch
roduct Benefits
Wiring: Switch is non-polarized, all types of wiring and connections are possible.
Easy access without tools, and auxiliary contacts can be integrated without tools.
The operating mechanism can be centered to meet the installation requirements.
Reliable position indicator through visible contacts.
The opening and closing of the switch is fully independent from the
speed of operation, ensuring safe operation under all conditions.
High temperature withstand: no derating up to 70°C.
Ambient Temperature: -40°C to +70°C.
Easy to install
Safe reliable operation
Designed for harsh environments
Vibration testing (from 13.2 to 100 Hz at 0.7 g).
Shock testing (15 g during three cycles).
Humid temperature testing (2 cycles, 55°C/131F with 95% humidity level).
Salt mist testing(3 cycles with humidity storage, 40°C/104F, 93% humidity after each cycle).
Select Code
AUX. contact easy-mounting
Side mount PE pole
Side mount auxiliary contact:
P1: 1NO+1NC P2: 2NO P3:1NO
